Schneider Electric

ZB5AG2 - Key selector switch head, Harmony XB5, plastic, black, 22mm, key 455, 2 positions, stay put

Category Relays, Push Buttons, Pilot Lights, Selector Switches

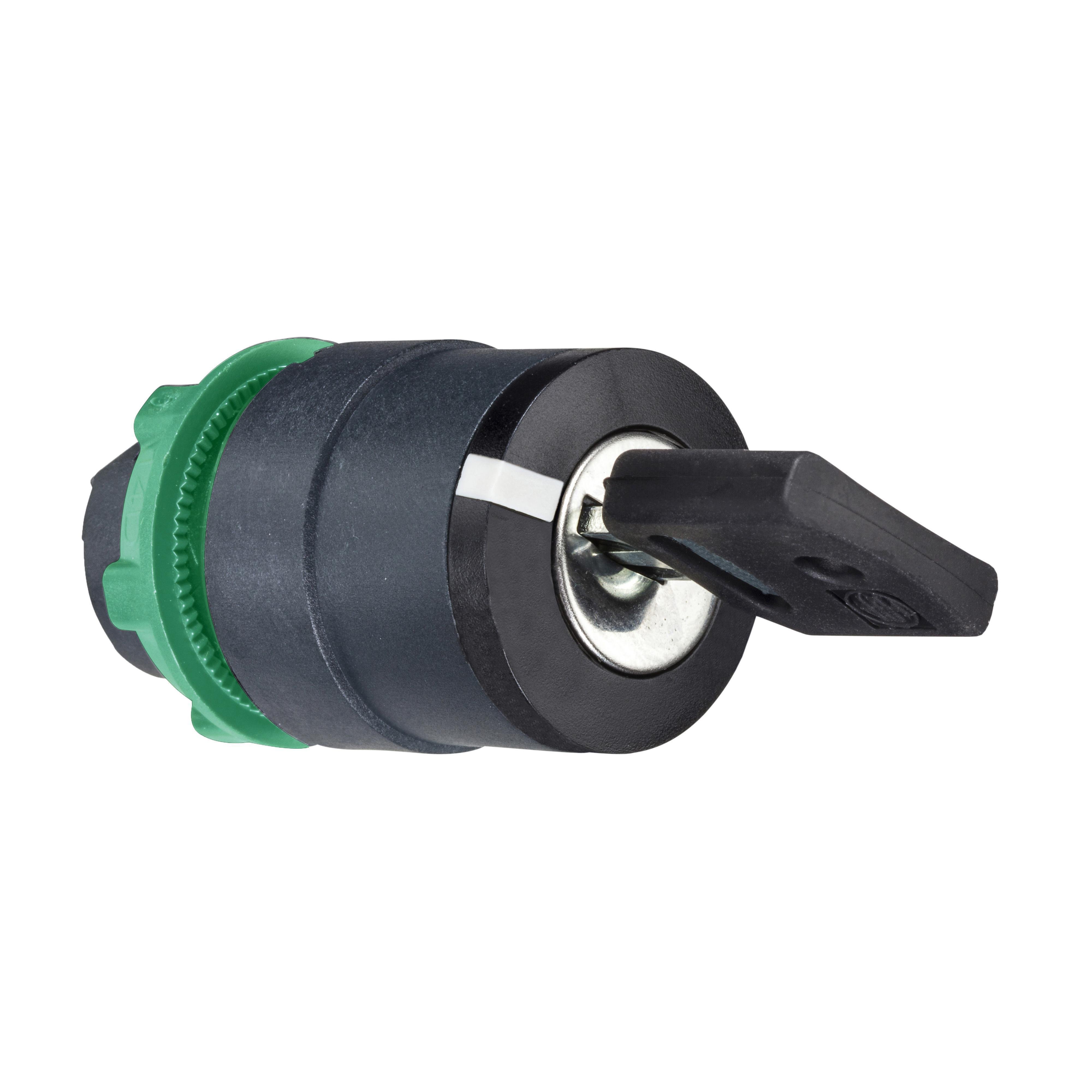

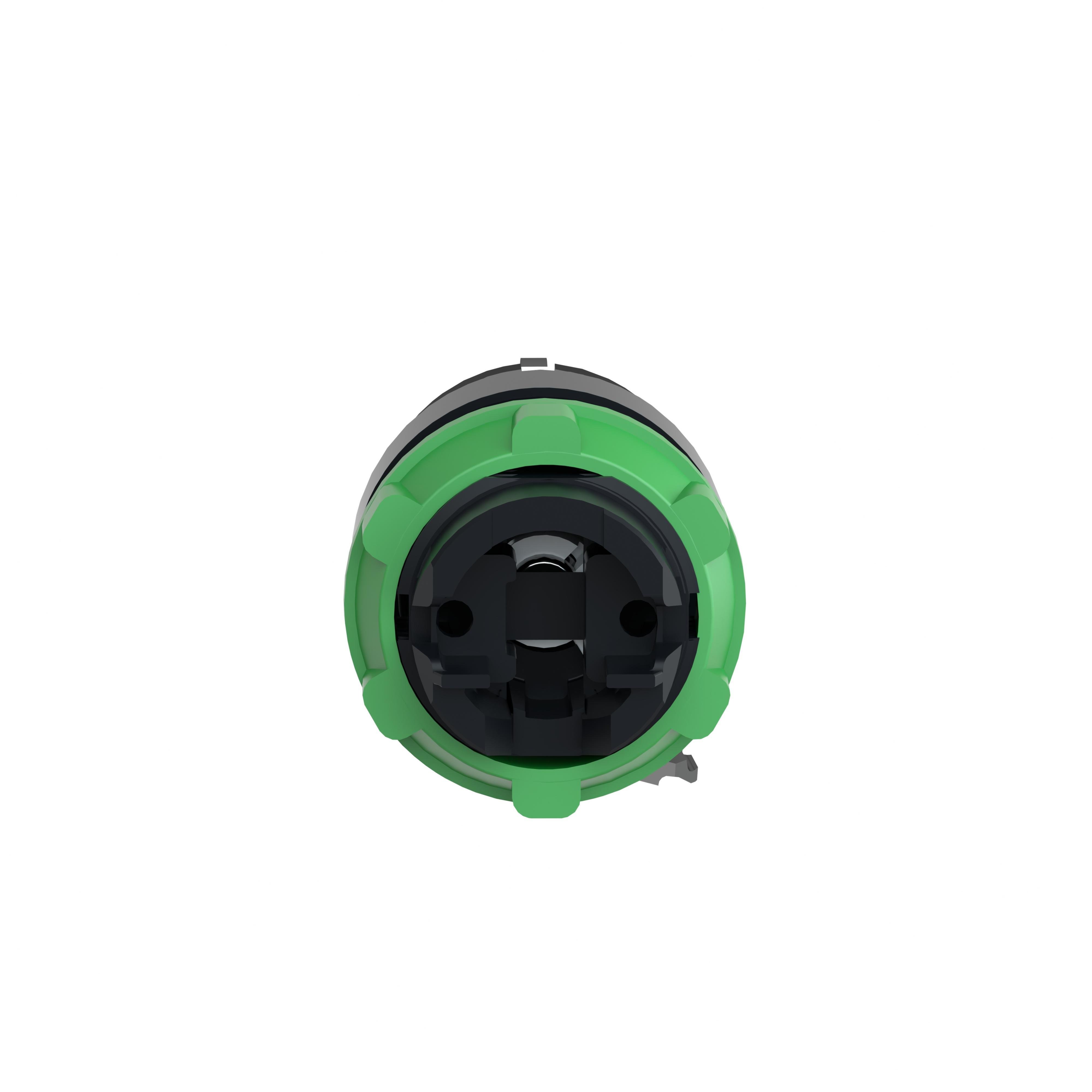

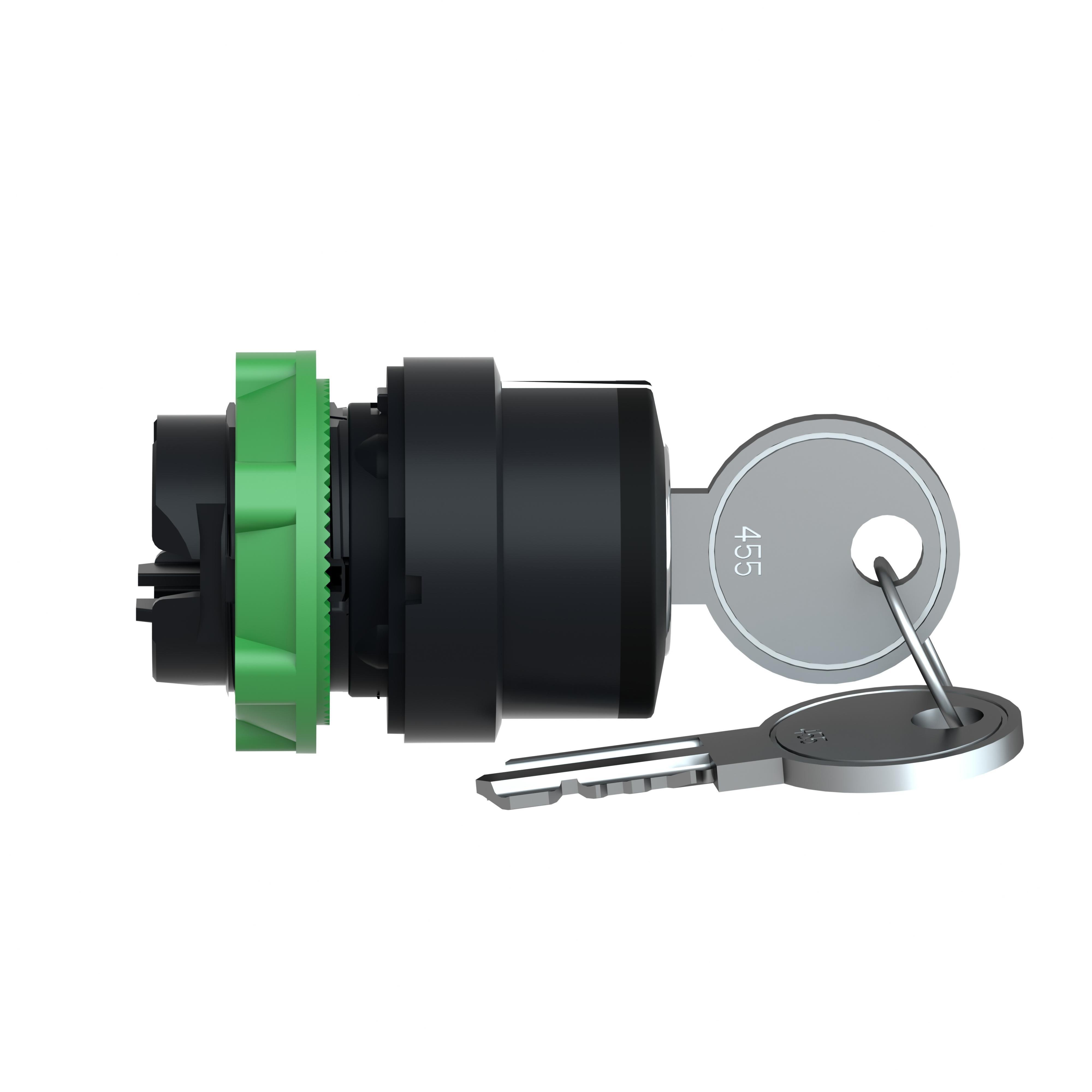

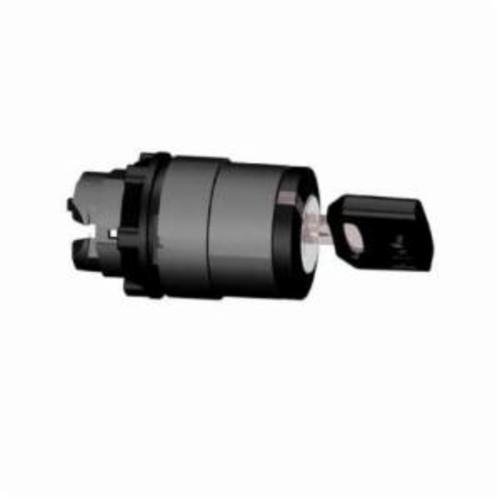

Picture of ZB5AG2 - Key selector switch head, Harmony XB5, plastic, black, 22mm, key 455, 2 positions, stay put
Schneider Electric

ZB5AG2 - Key selector switch head, Harmony XB5, plastic, black, 22mm, key 455, 2 positions, stay put

Item Code: 805702
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB5AG2

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, head with key (key no.455) for key selector switch has 2 positions, operates with stay-put mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.

Specifications

Weight

0.14lb

Height

1.2mm

Width

2.15mm

Length

3.55mm

Bezel/Housing

Plastic

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Color

Black

Contact Mode

Maintained

Enclosure Type

NEMA 4X/13/IP65/IP66/IP67/IP69/IP69K

Mounting Type

Front

Number of Positions

2

Operator Type

455 Key Removal Left/Round/Unmarked

Series

ZB5

Size

22 mm

Temperature Rating

-40 to 158 Deg F

Type

Non-Illuminated Round
