Schneider Electric

ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

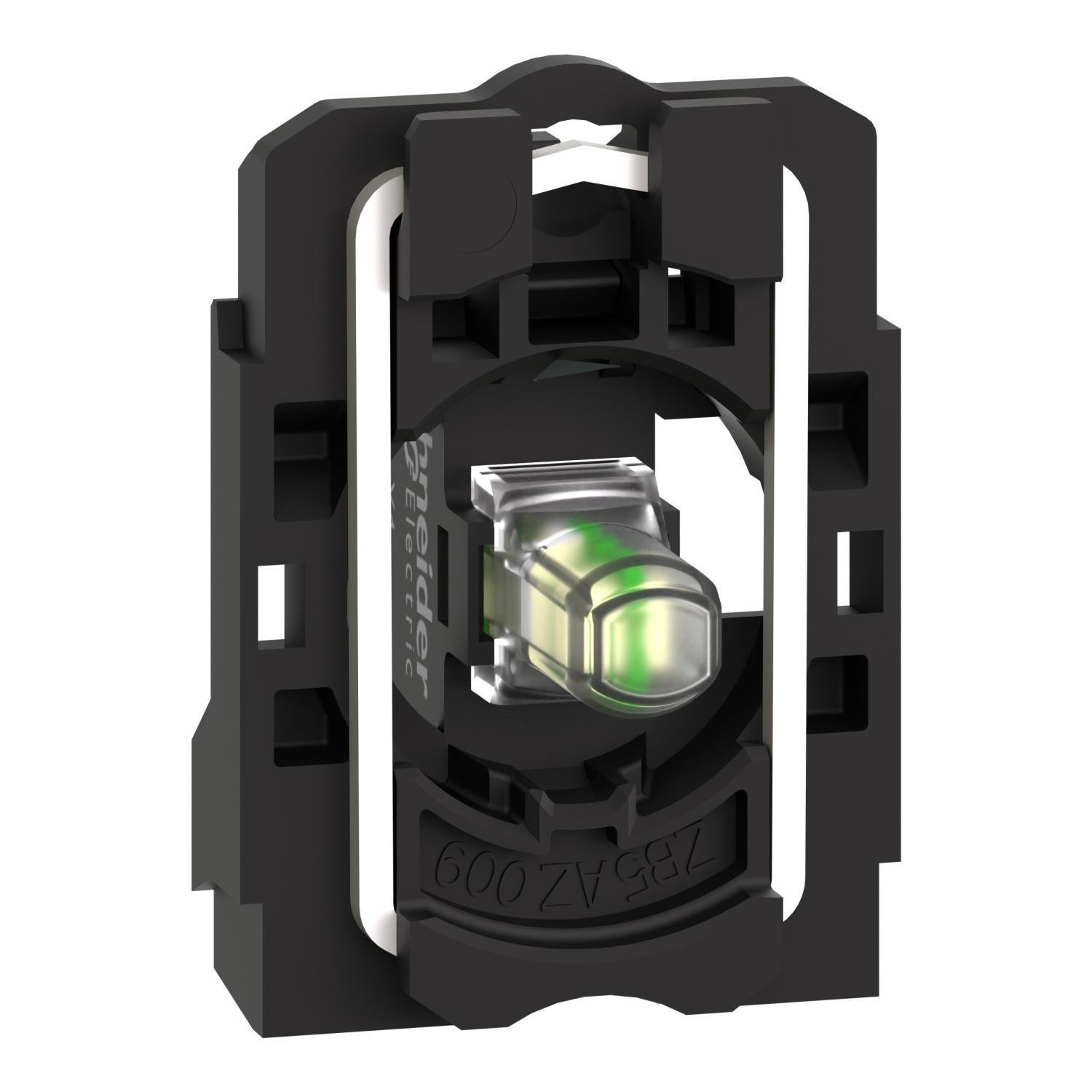

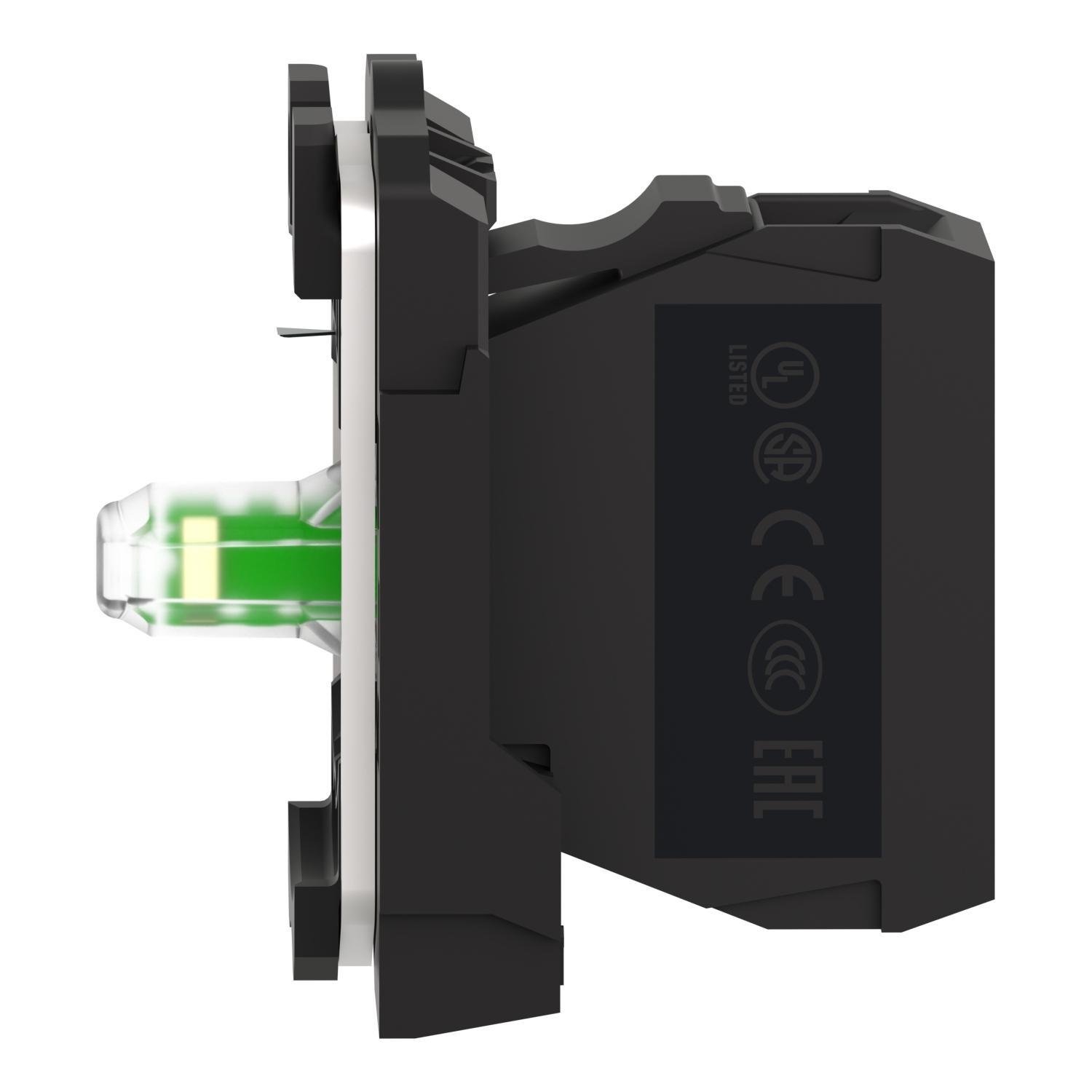

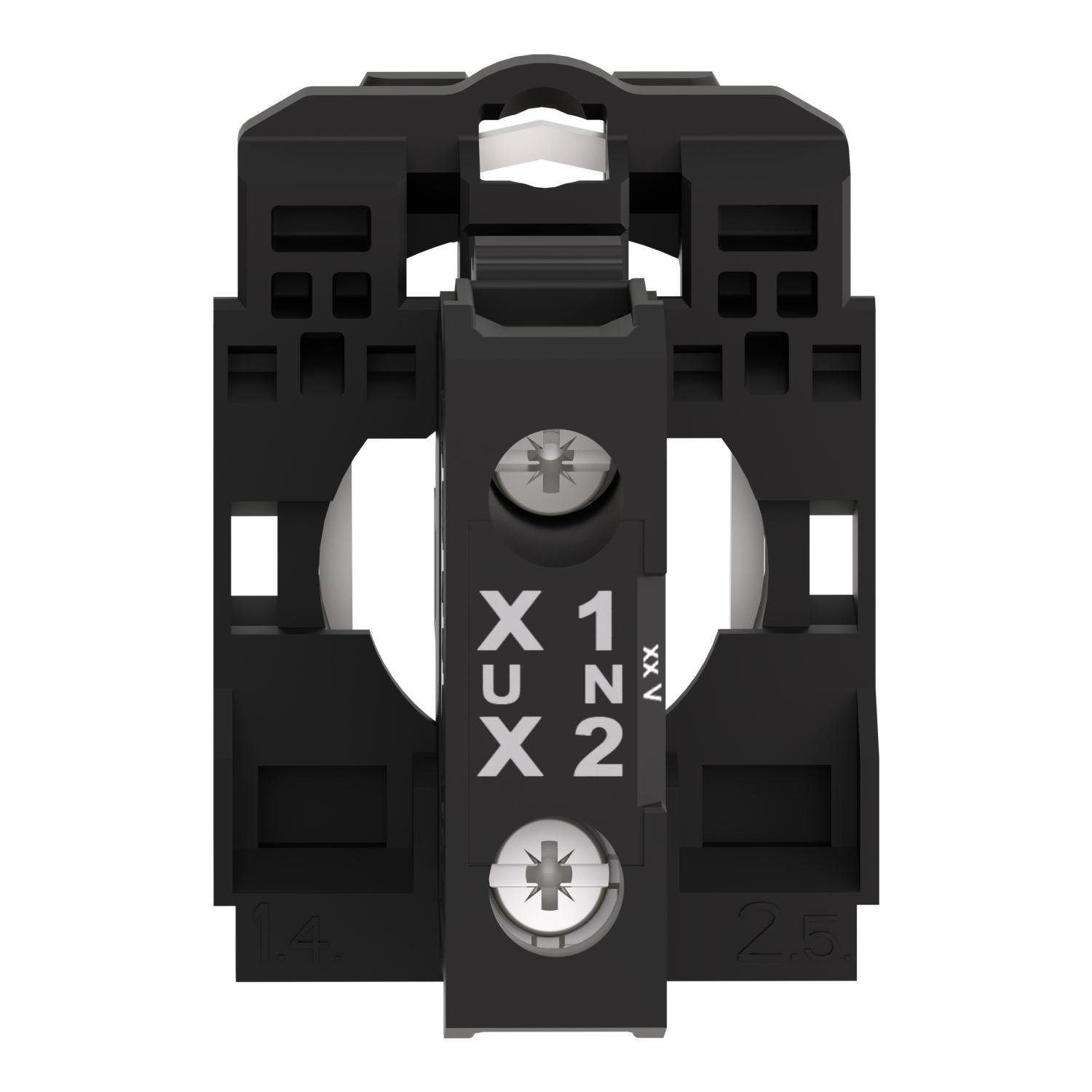

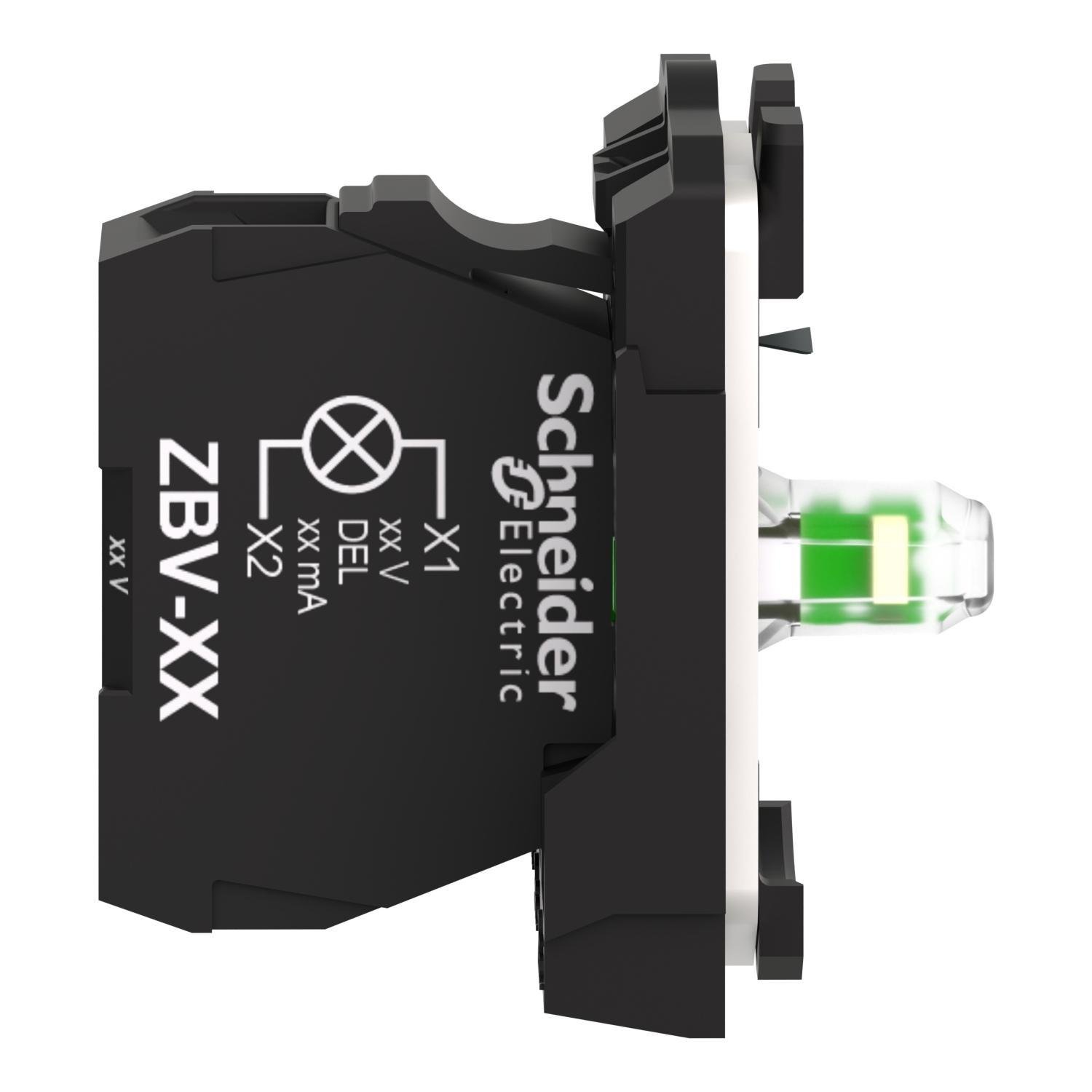

Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC
Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC
Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC
Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC
Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC Picture of ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC
Schneider Electric

ZB5AVG1 - Complete body light block assembly, Harmony XB5, plastic, universal LED, screw clamp terminals, 110...120V AC

Item Code: 707554
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB5AVG1

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Specifications

Weight

0.04lb

Width

1.87mm

Length

2.03mm

AD Application

For use with XB5 illuminated round pushbuttons

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Includes

Mounting Collar and Bulb

AD Invoice Description

MODULE LT 22MM INT LED 120VAC SCR CLAMP

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.0300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0400

AD Package Weight UOM

LB

AD Package Width

1.8700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/phYL_MaZPwo

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

White

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.65 in H x 1.18 in W x 1.26 in D

Spec 3 Attribute

Lamp Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Series

Spec 4 Attribute Value

ZB5

Spec 5 Attribute

Size

Spec 5 Attribute UOM

MM

Spec 5 Attribute Value

22

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Screw clamp

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

120
