Schneider Electric

ZB5AVG5 - Pushbutton Light Module

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

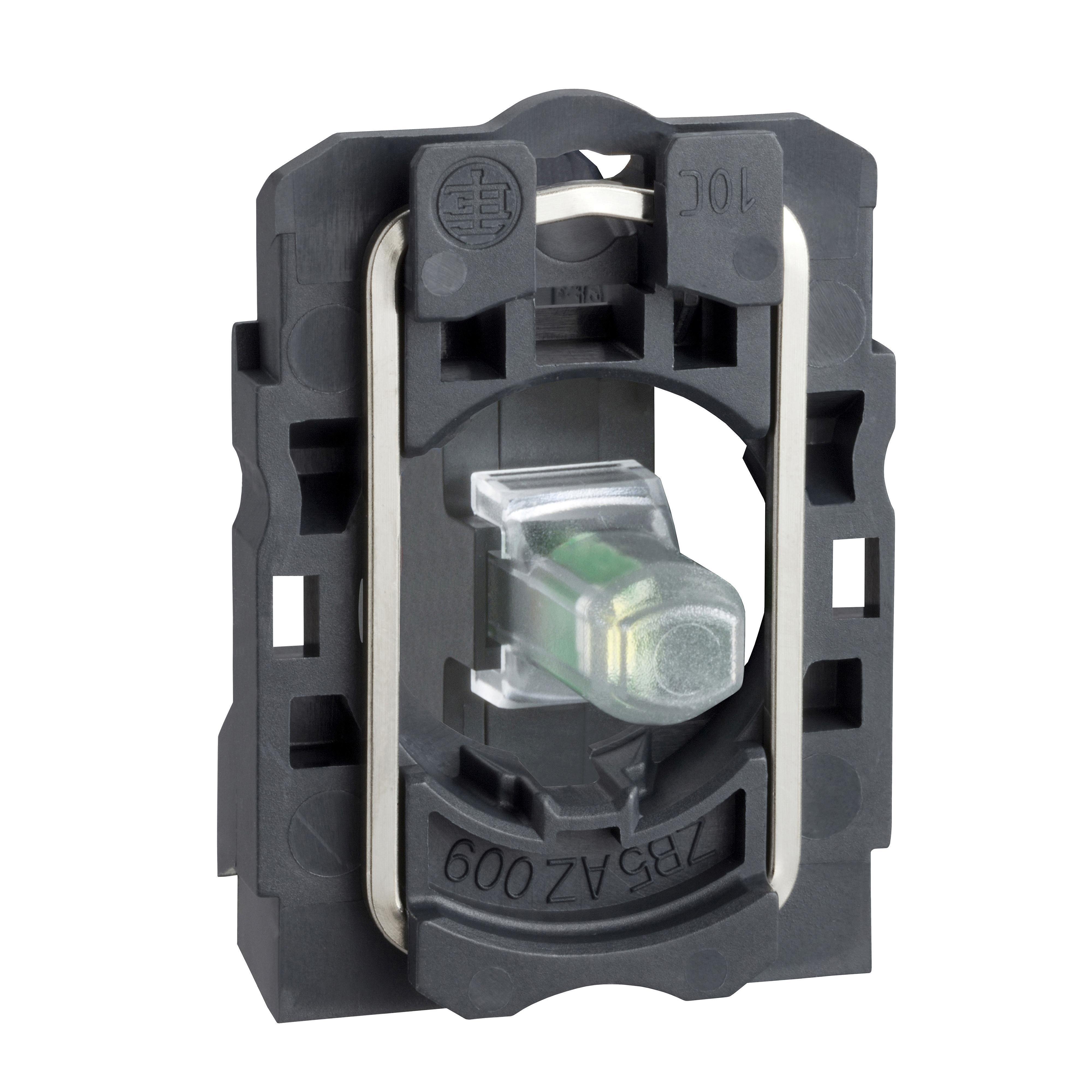

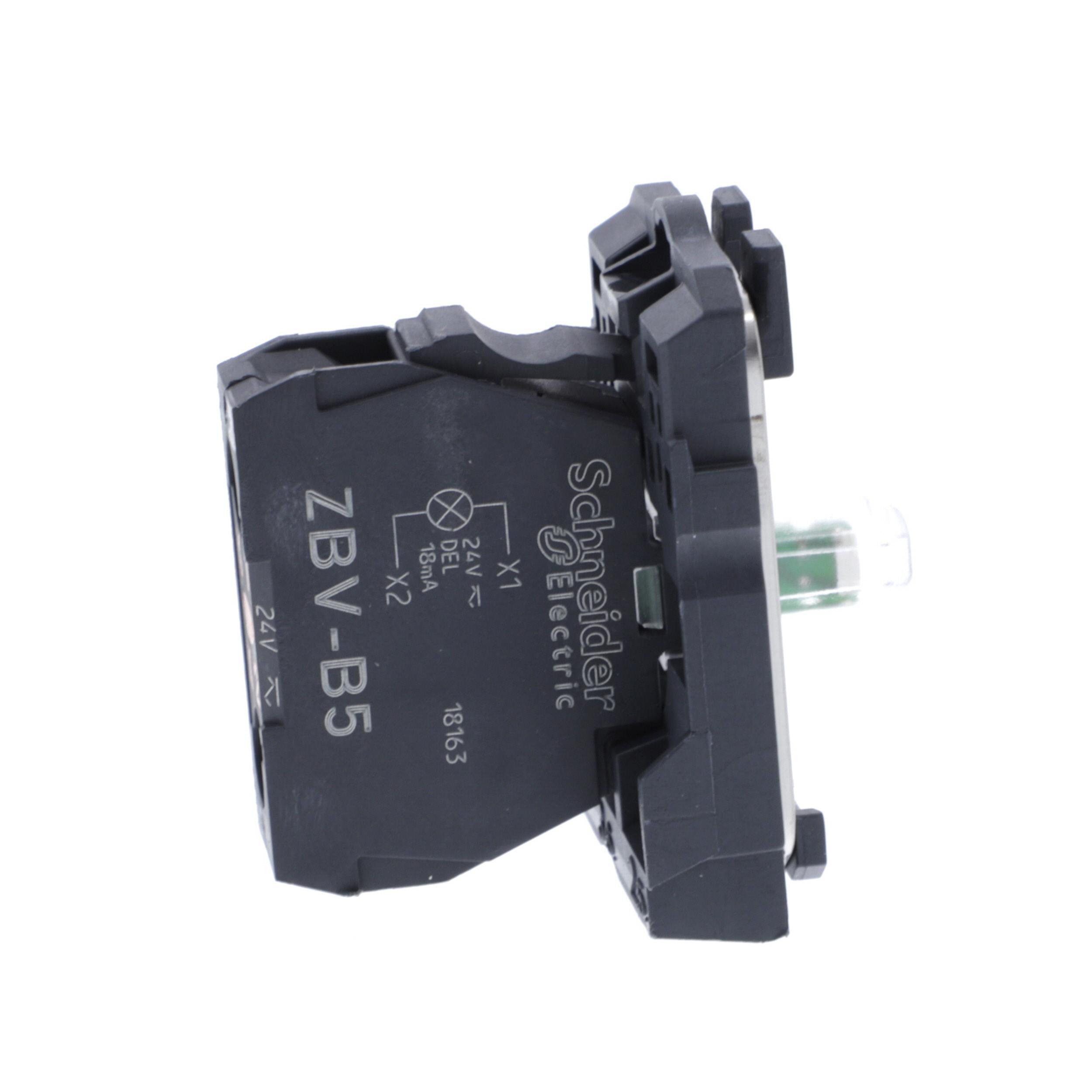

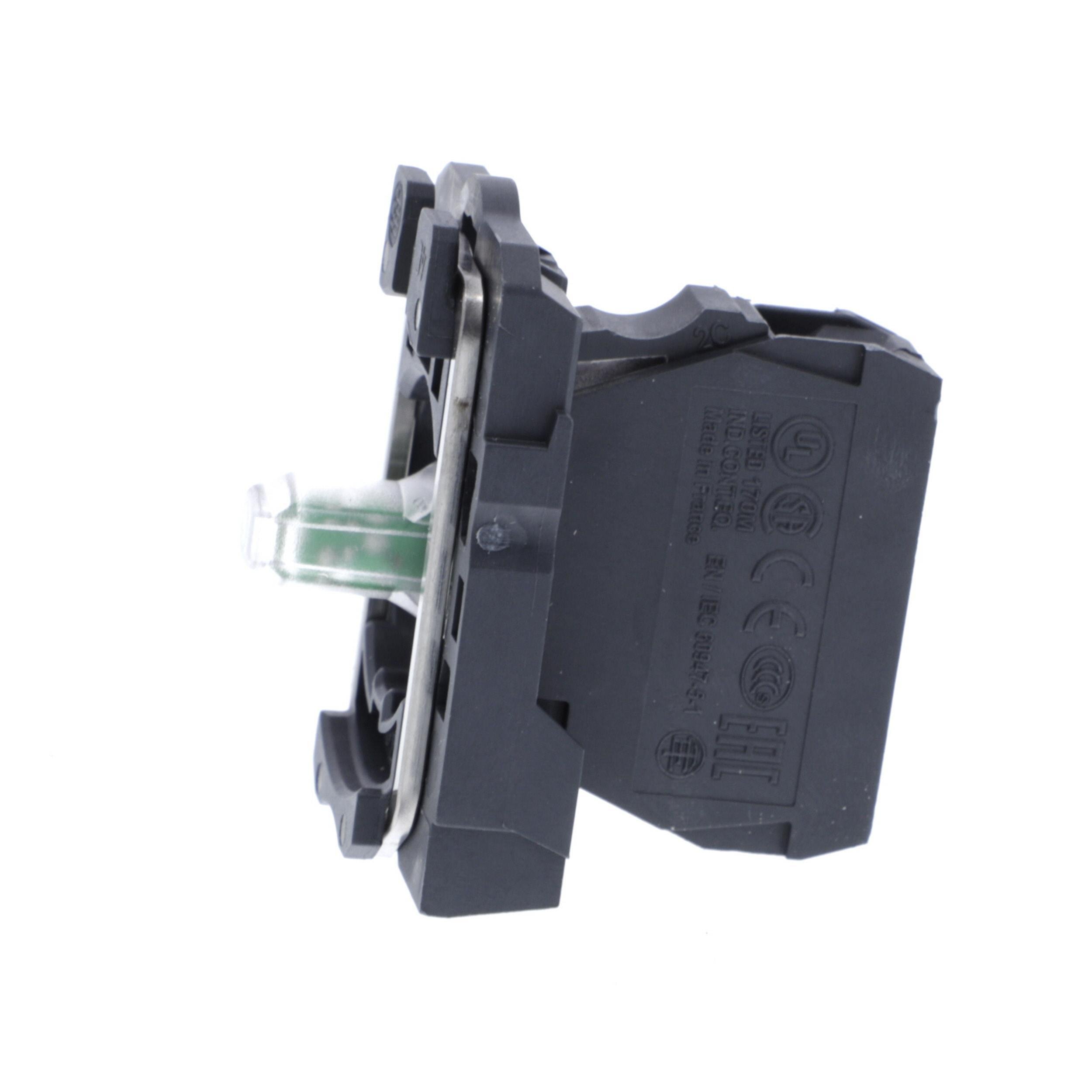

Picture of ZB5AVG5 - Pushbutton Light Module Picture of ZB5AVG5 - Pushbutton Light Module
Picture of ZB5AVG5 - Pushbutton Light Module Picture of ZB5AVG5 - Pushbutton Light Module
Picture of ZB5AVG5 - Pushbutton Light Module Picture of ZB5AVG5 - Pushbutton Light Module
Picture of ZB5AVG5 - Pushbutton Light Module Picture of ZB5AVG5 - Pushbutton Light Module
Schneider Electric

ZB5AVG5 - Pushbutton Light Module

Item Code: 740357
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB5AVG5

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Specifications

Weight

0.4lb

Height

1.3mm

Width

1.8mm

Length

1.6mm

AD Application

For use with XB4 series 22 mm pushbutton

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Includes

Mounting Collar, Light Module With Protected LED

AD Invoice Description

ASSEMBLY BLK LT 22 MM DIA LED 110/120VAC

AD Item Features 01

Protected LED light source and integral LED bulb base

AD Item Features 02

Plastic fixing collar material

AD Item Features 03

50/60 Hz frequency

AD Item Features 04

7.08 to 10.62 lbf-in tightening torque

AD Item Features 05

600 VAC insulation voltage

AD Item Features 06

Steady signaling type

AD Item Features 07

14 mA current consumption

AD Item Features 08

100000 hr at rated voltage and 25 deg C service life

AD Item Features 09

Orange light source color

AD Item Features 10

-40 to 158 deg F ambient air temperature for operation

AD Item Features 11

7.08 to 10.62 in-lb tightening torque

AD Item Features 12

6 kV conforming to EN 60947-1 rated impulse withstand voltage

AD Item Features 13

Steady type signaling

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

1.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4000

AD Package Weight UOM

LB

AD Package Width

1.8000

AD Package Width UOM

IN

Brand

Schneider Electric

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

Yellow

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.65 in H x 1.18 in W x 1.26 in D

Spec 3 Attribute

Lamp Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Series

Spec 4 Attribute Value

ZB5

Spec 5 Attribute

Size

Spec 5 Attribute Value

22 mm Dia

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Screw clamp

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

110/120
