Schneider Electric

ZBE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

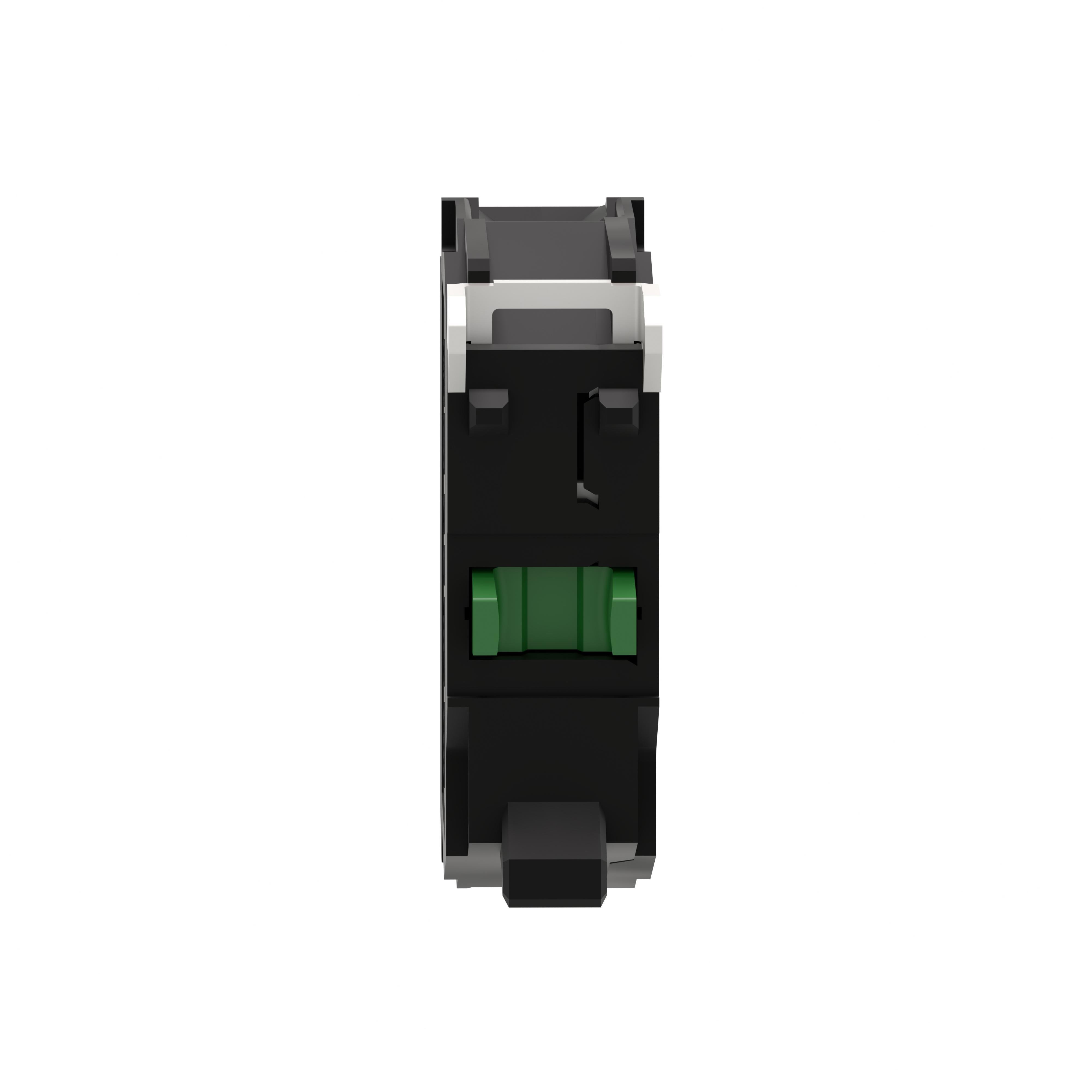

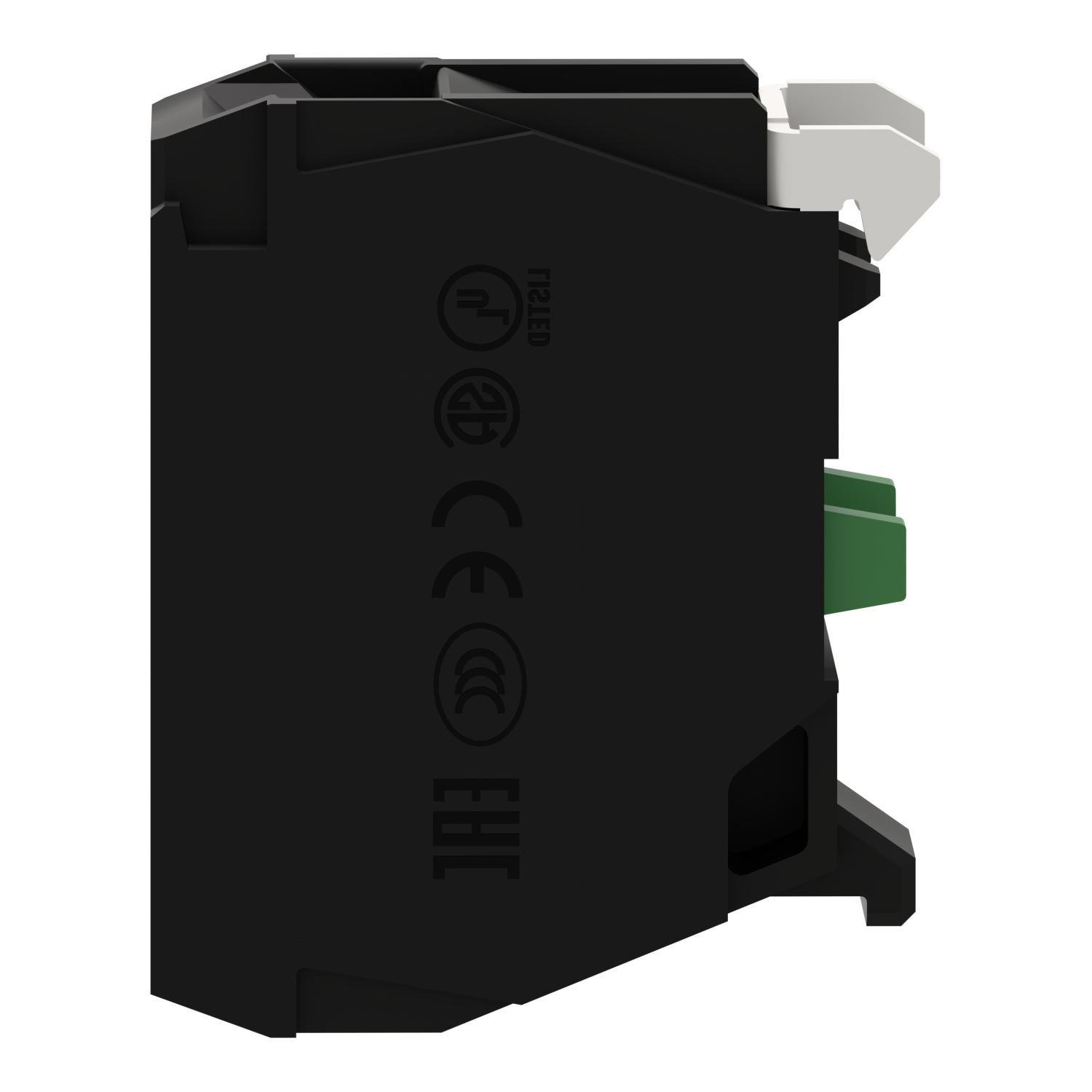

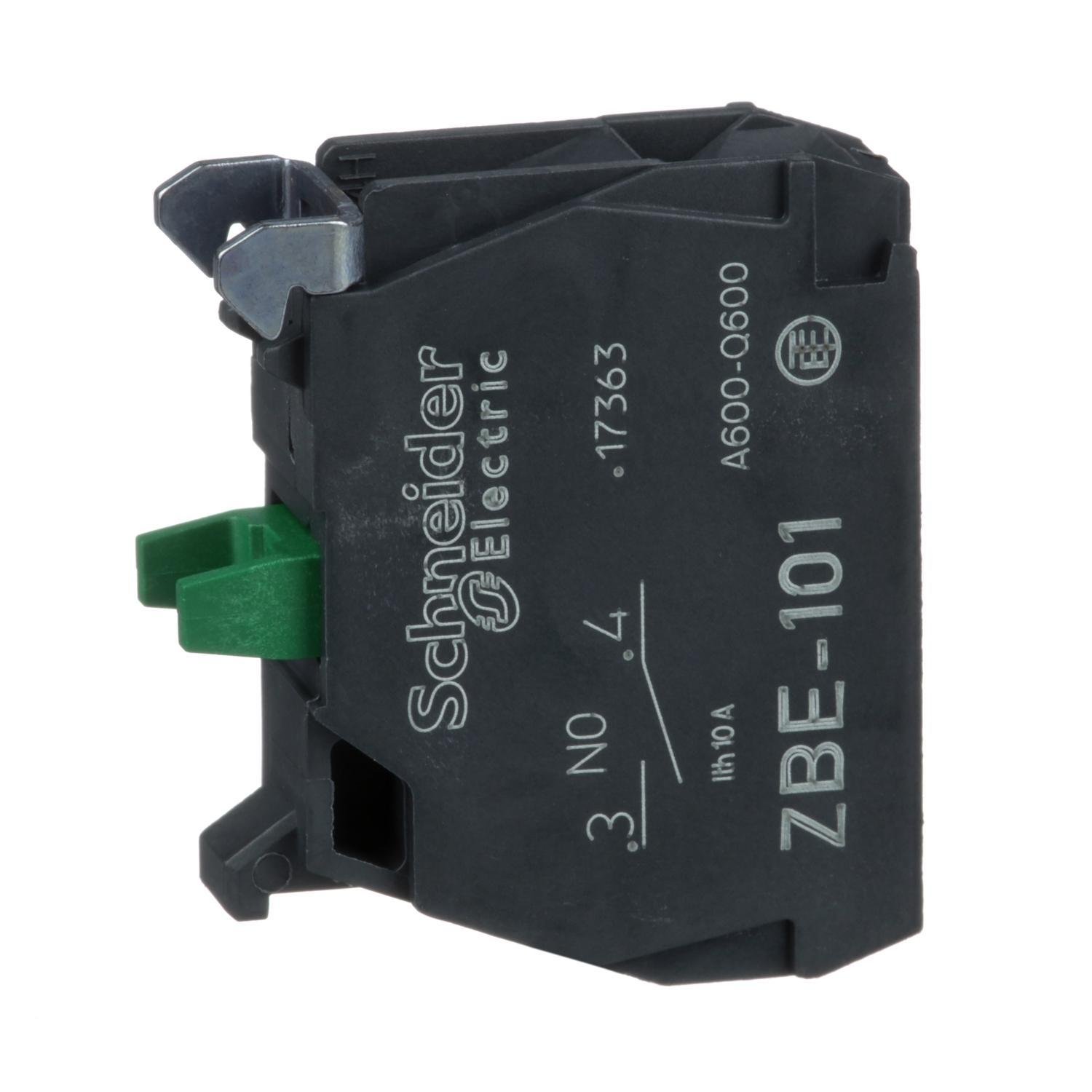

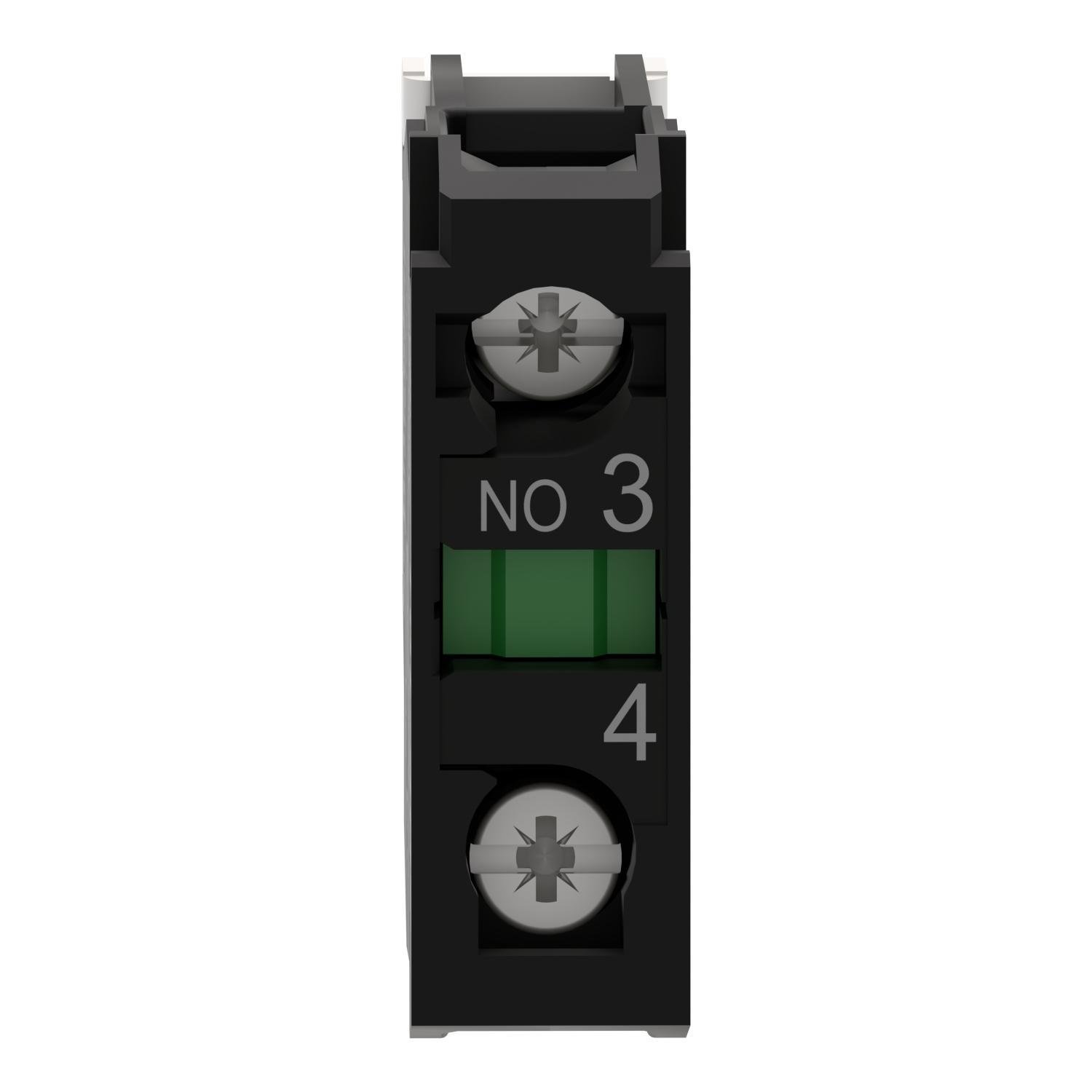

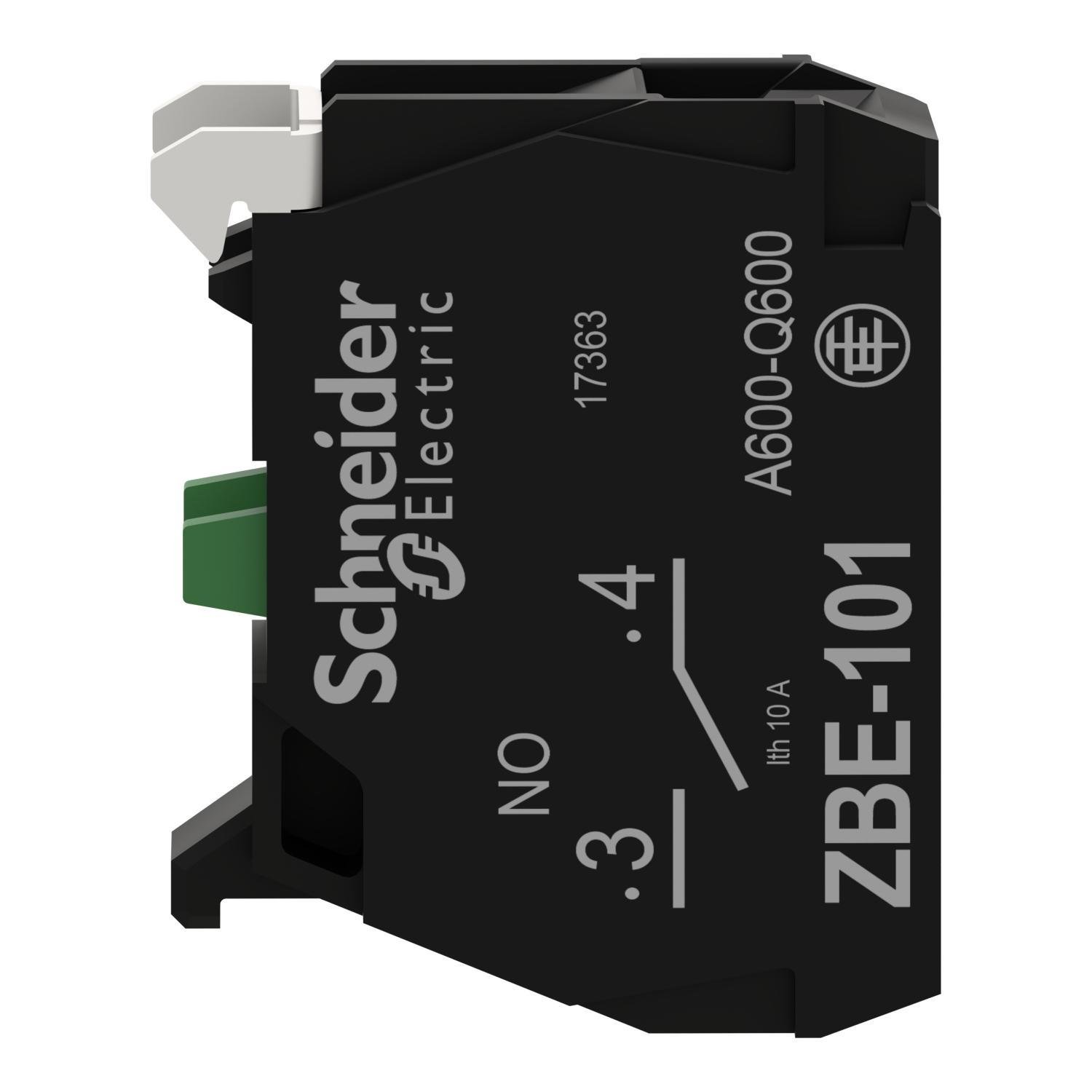

Picture of ZBE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Schneider Electric

ZBE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Item Code: 18930
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZBE101

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has clear color scheme. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.02lb

Height

0.4mm

Width

0.97mm

Length

1.17mm

Action

Momentary

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Color

Black/green

Contact Configuration

1NO

Contact Material

Silver Alloy

Contact Rating

10 A at 600 V AC

Contacts

1

Enclosure Type

IP20

Mounting Type

Front

Operator Type

Slow Break

Series

ZBE

Size

22 mm

Terminal Type

Screw clamp

Type

Slow Break
