Schneider Electric

ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

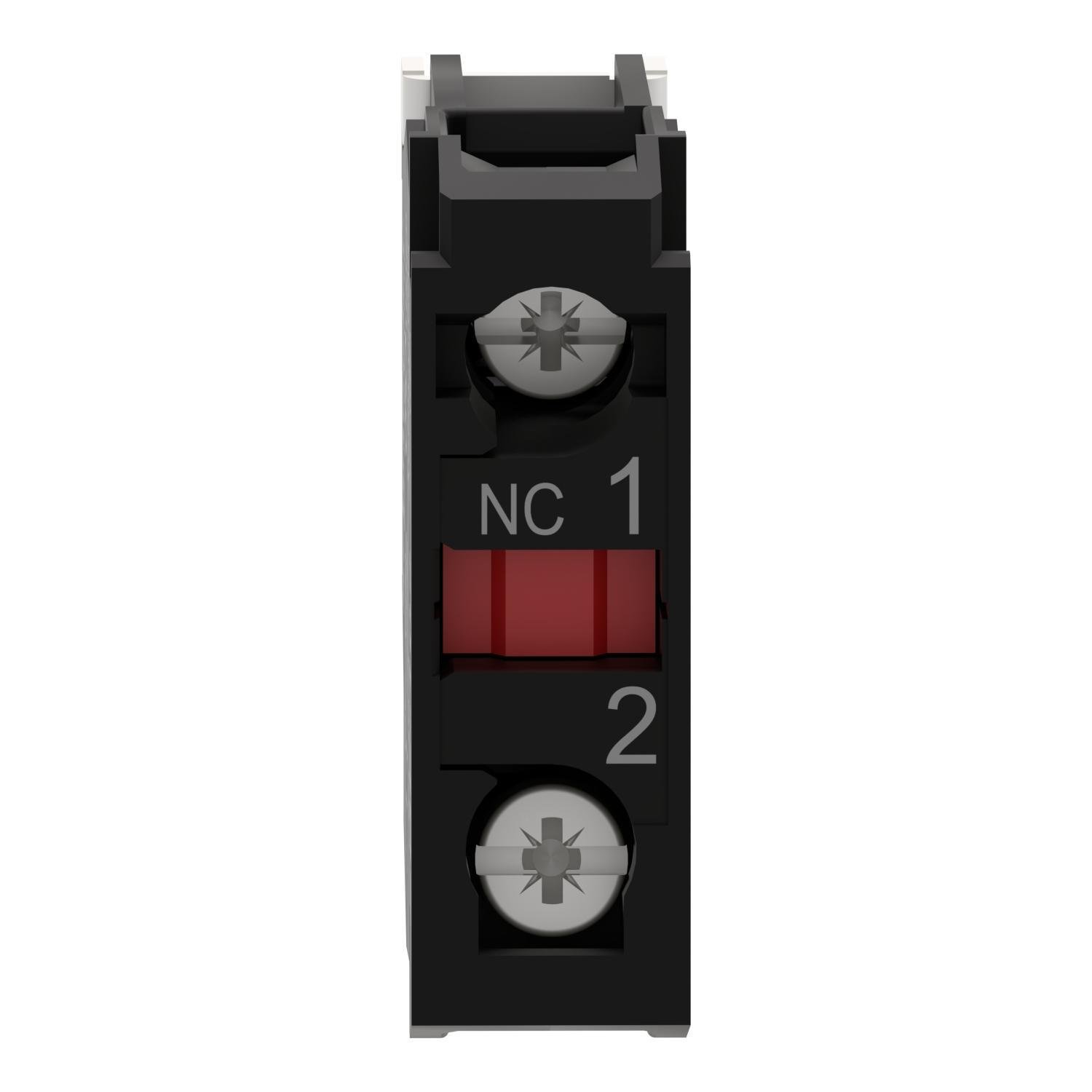

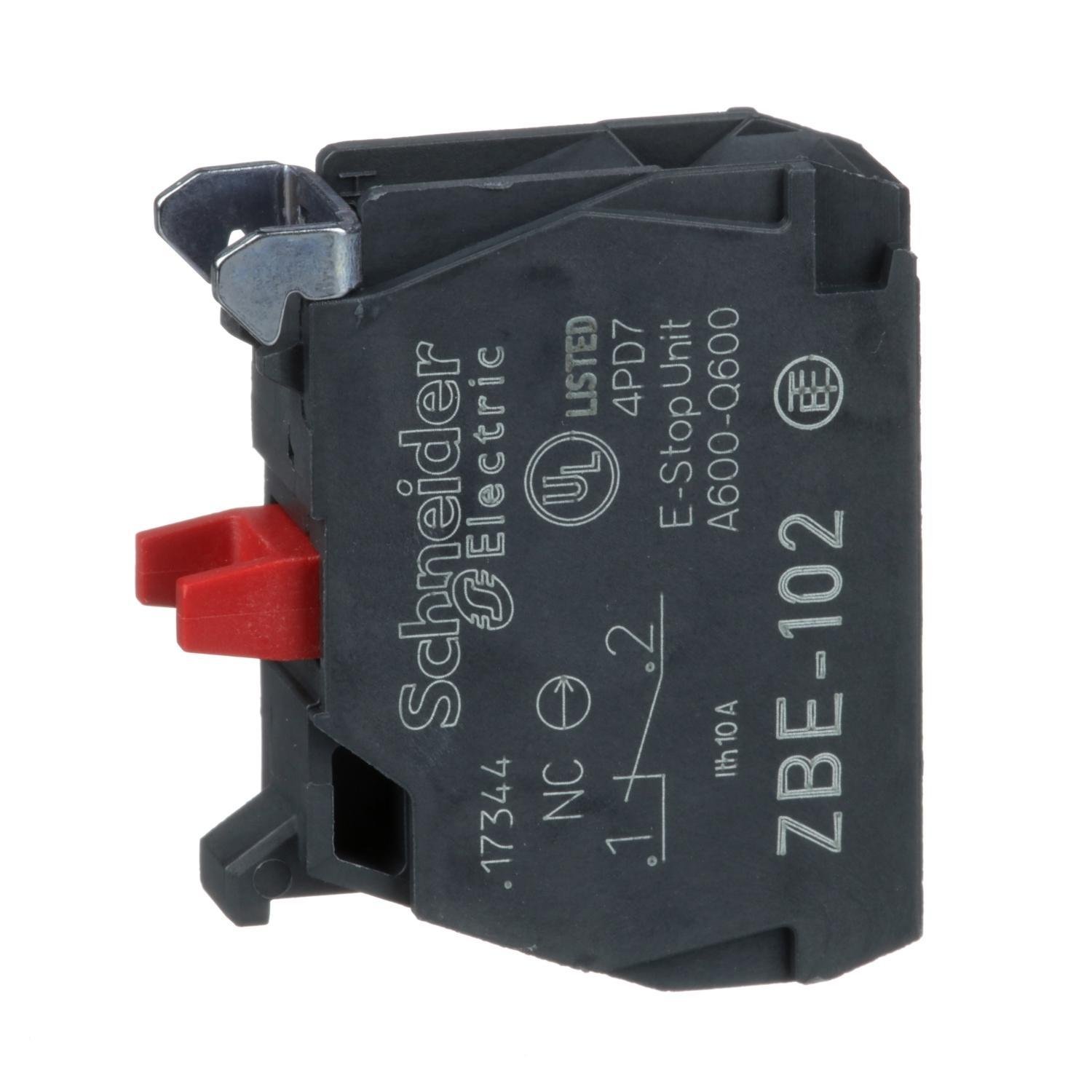

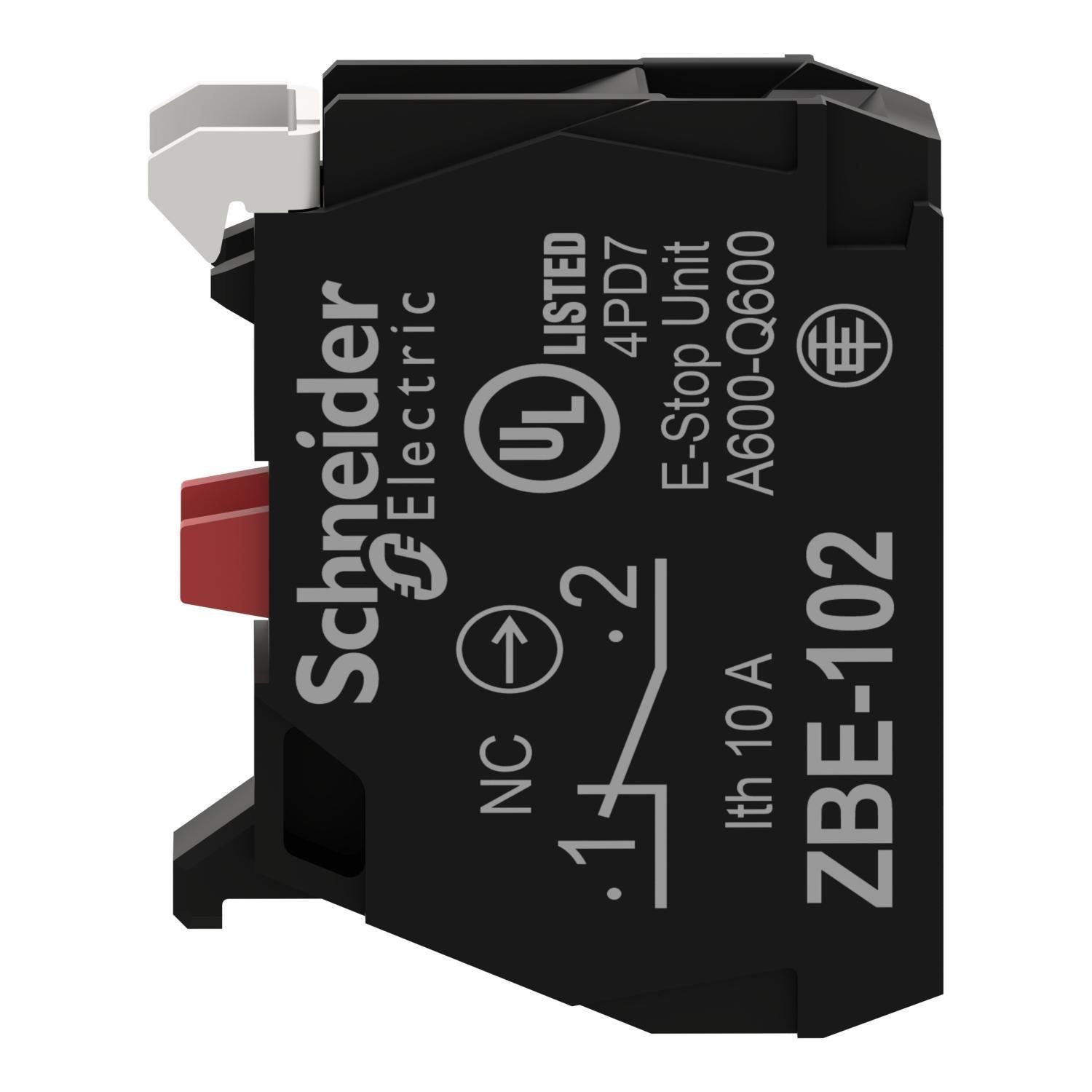

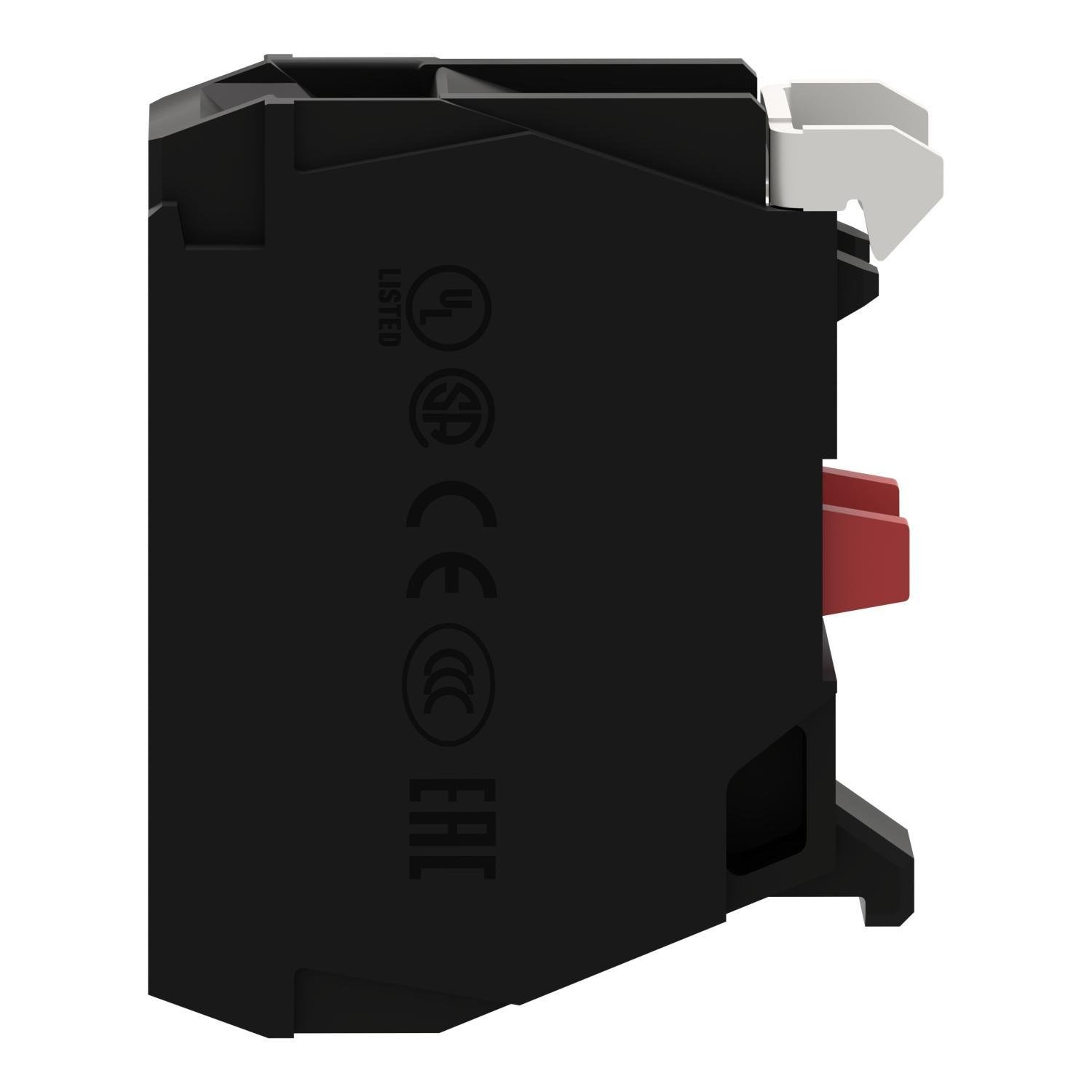

Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal
Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal
Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal
Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal
Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal Picture of ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal
Schneider Electric

ZBE102 - Harmony, 22mm Push Button, add on contact block, 1 NC, screw clamp terminal

Item Code: 18931
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZBE102

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has clear color scheme for NO and NC contact block types. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.02lb

Width

1.33mm

Length

1.4mm

AD Application

Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

BLOCK CONT COMPONENT ELECTRICAL 22MM 1NC

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

1.3300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kSLYD1dXJVc

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Action

Spec 1 Attribute Value

Momentary

Spec 10 Attribute

Operator Type

Spec 10 Attribute Value

Slow Break

Spec 11 Attribute

Series

Spec 11 Attribute Value

ZBE

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

22

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Slow Break

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black/Red

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NC

Spec 4 Attribute

Contact Material

Spec 4 Attribute Value

Silver Alloy

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

10 A at 600 V AC

Spec 6 Attribute

Contacts

Spec 6 Attribute Value

1

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP20

Spec 8 Attribute

Material

Spec 8 Attribute Value

Zamak

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Front
