Schneider Electric

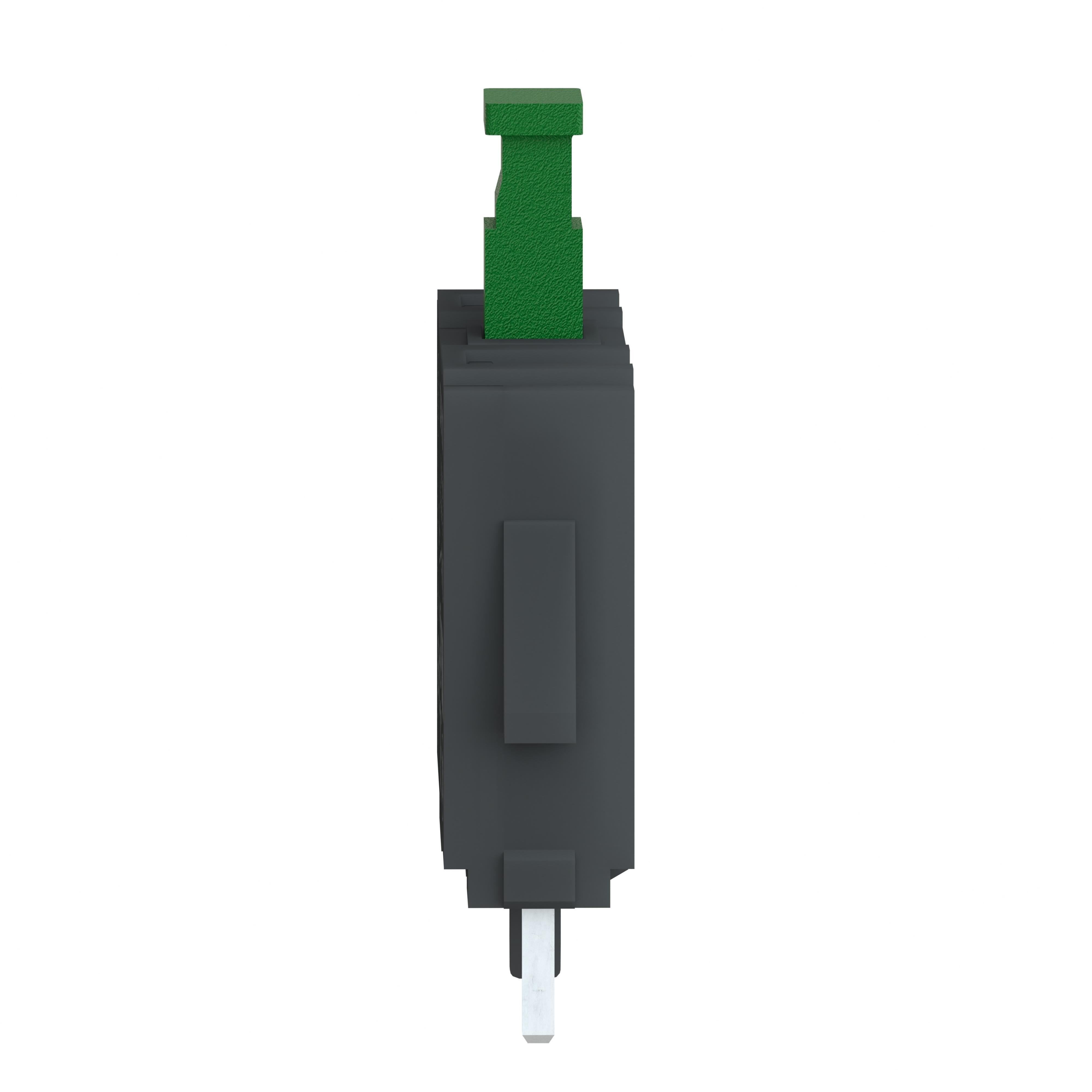

ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

Picture of ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO Picture of ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Picture of ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO Picture of ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Schneider Electric

ZBE701 - Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

Item Code: 972358
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZBE701

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony ZB, single contact block uses PCB terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple PCB connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Width

0.78mm

Length

1.17mm

AD Application

For use with XB4/XB5/ZBE series control and signaling units and pushbuttons

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

BLOCK CONT 22MM 1NO 10 A AT 250 VAC 1

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.1700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

0.7800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Spec 1 Attribute

Contact Configuration

Spec 1 Attribute Value

1NO

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Pin

Spec 11 Attribute

Type

Spec 11 Attribute Value

Standard

Spec 2 Attribute

Contact Material

Spec 2 Attribute Value

Silver Alloy

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

10 A at 250 V AC

Spec 4 Attribute

Contacts

Spec 4 Attribute Value

1

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.77 in H x 2.35 in W x 0.58 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

Material

Spec 7 Attribute Value

Plastic

Spec 8 Attribute

Operator Type

Spec 8 Attribute Value

Slow Break

Spec 9 Attribute

Size

Spec 9 Attribute UOM

MM

Spec 9 Attribute Value

22
