Schneider Electric

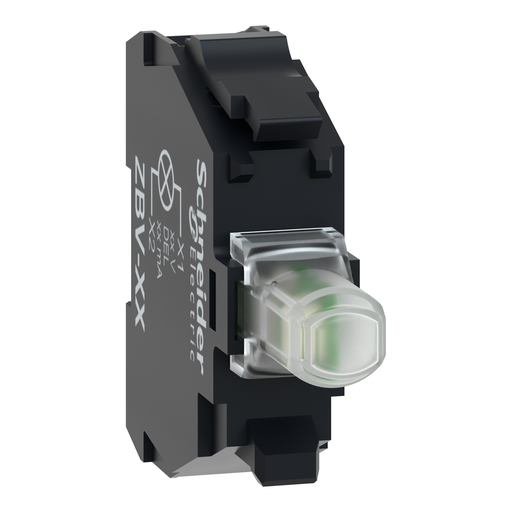

ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

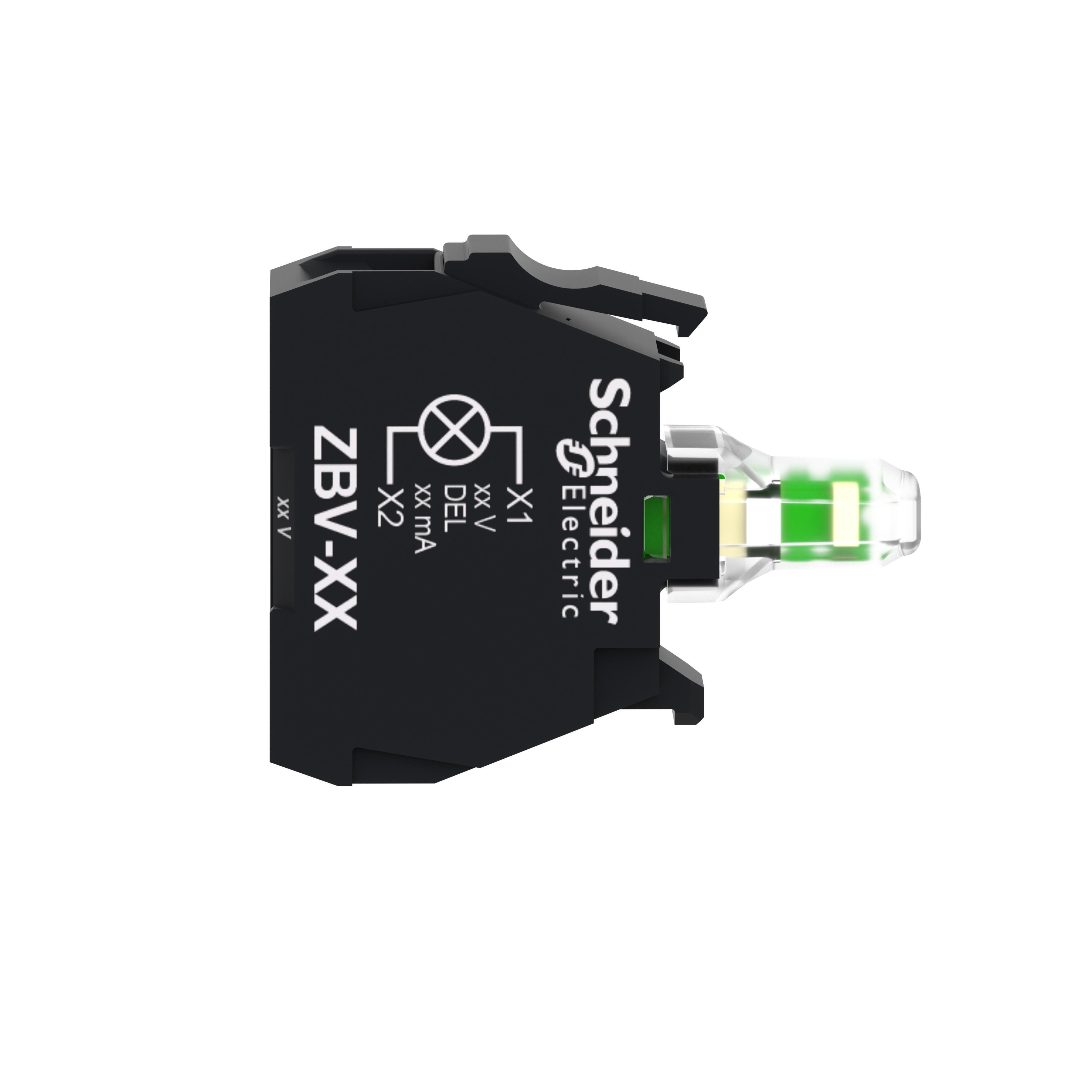

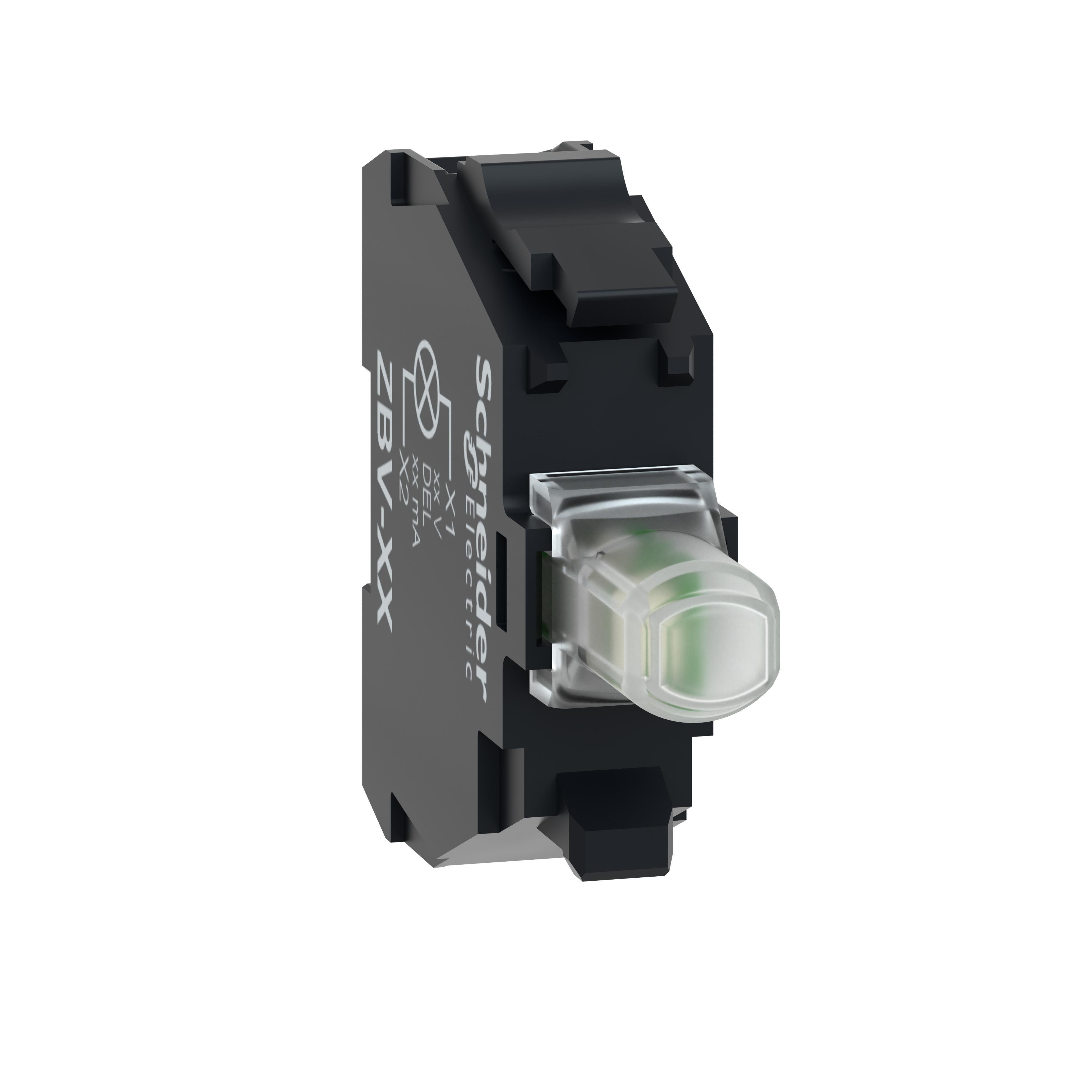

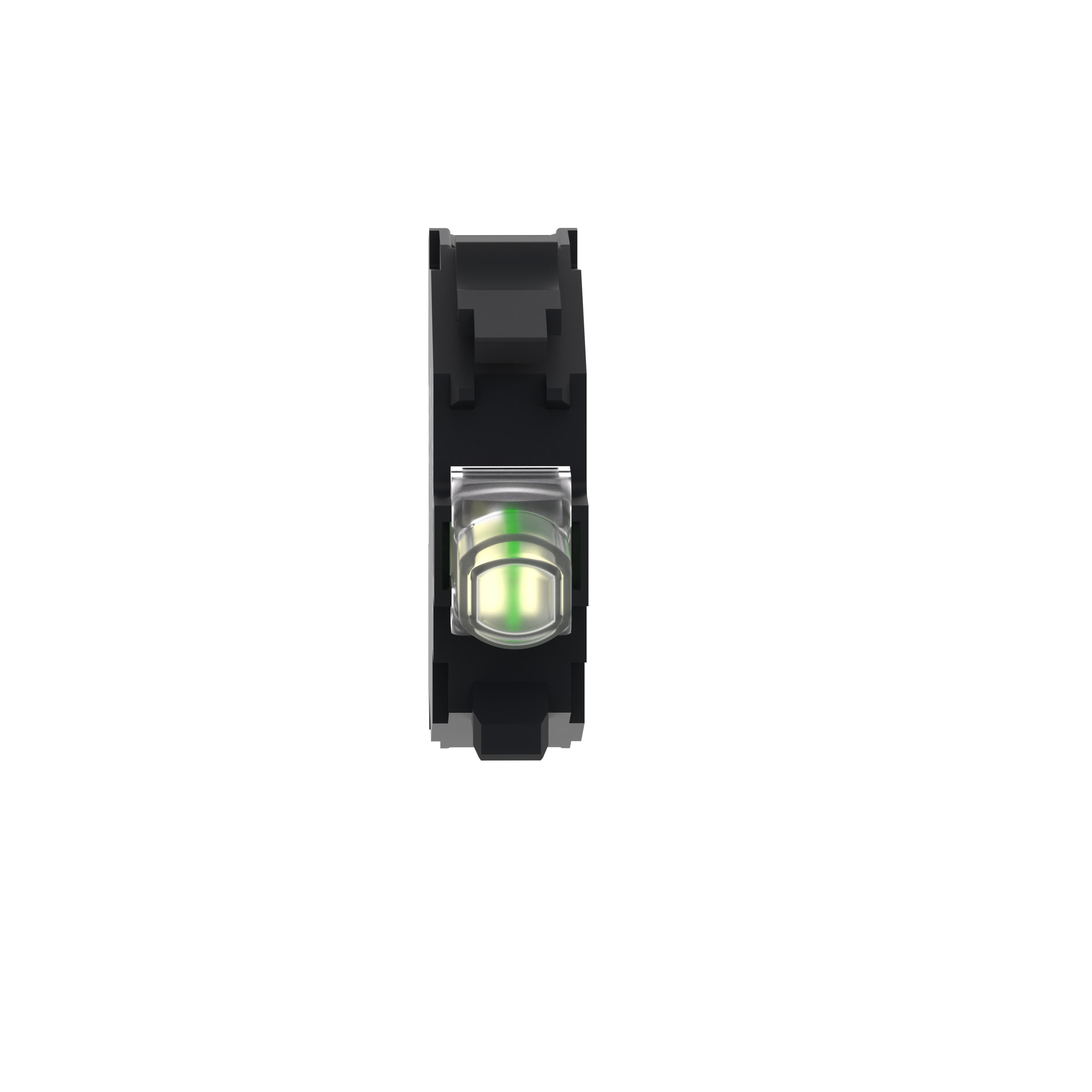

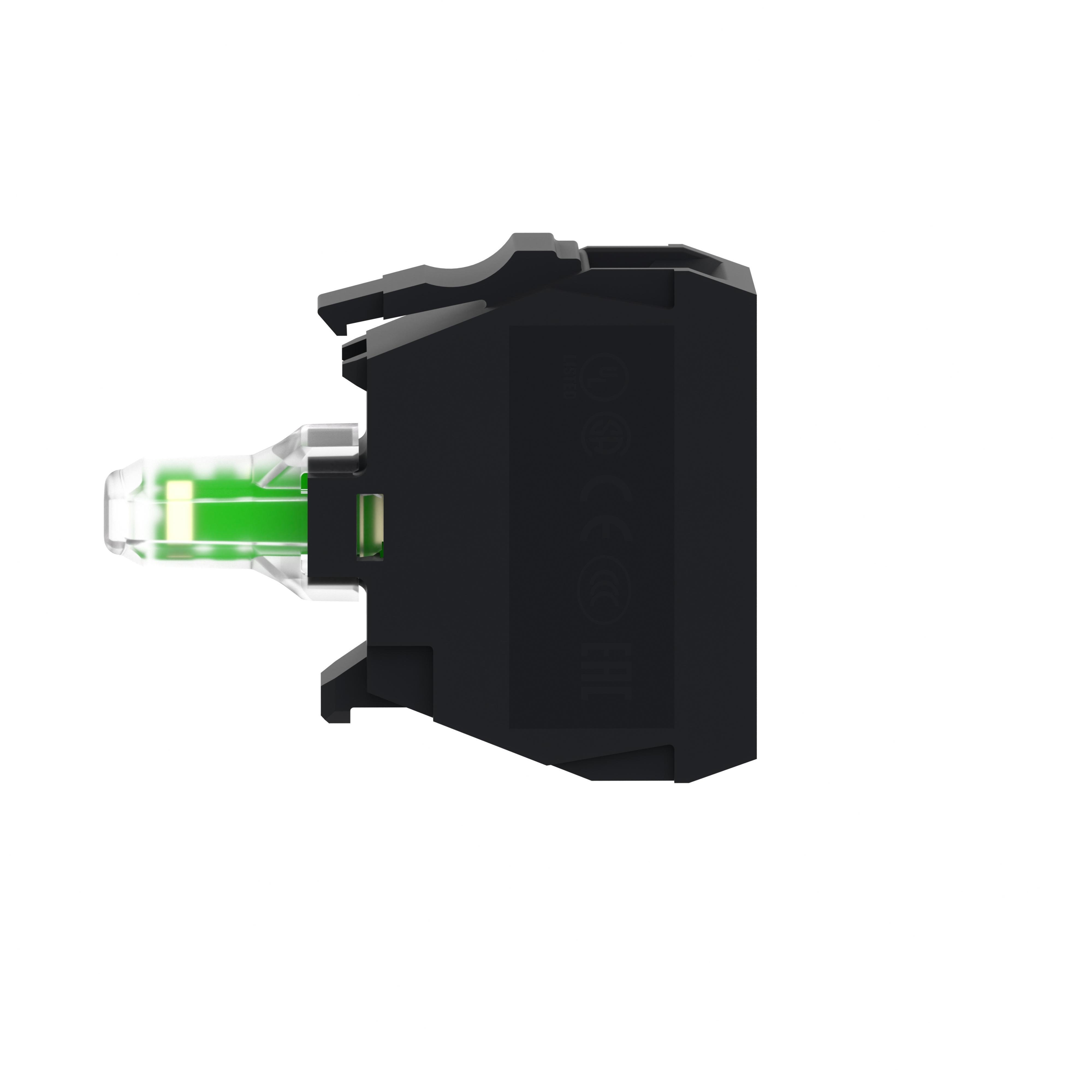

Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC
Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC
Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC
Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC
Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC Picture of ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC
Schneider Electric

ZBVBG1 - Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 24...120V AC DC

Item Code: 638658
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZBVBG1

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony ZB, white light block operates with a universal LED. It is supplied with 24V to 120V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Specifications

Weight

0.02lb

Height

0.4mm

Width

1.72mm

Length

2.18mm

AD Application

Xb4 and Xb5 Series 20 Mm Size Pushbutton

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

MODULE LT 22 MM DIA LED 24 TO 120VAC/VDC

AD Item Features 01

Compatible with improved color heads

AD Item Features 02

Universal LED block to be used for all colors

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.4000

AD Package Height UOM

IN

AD Package Length

2.1800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

1.7200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

White

Spec 2 Attribute

Lamp Type

Spec 2 Attribute Value

Led

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

Front

Spec 4 Attribute

Series

Spec 4 Attribute Value

ZBV

Spec 5 Attribute

Size

Spec 5 Attribute Value

22 mm Dia

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Screw clamp

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC/DC

Spec 7 Attribute Value

24 to 120
