Schneider Electric

ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START

Category Load Centers & Accessories

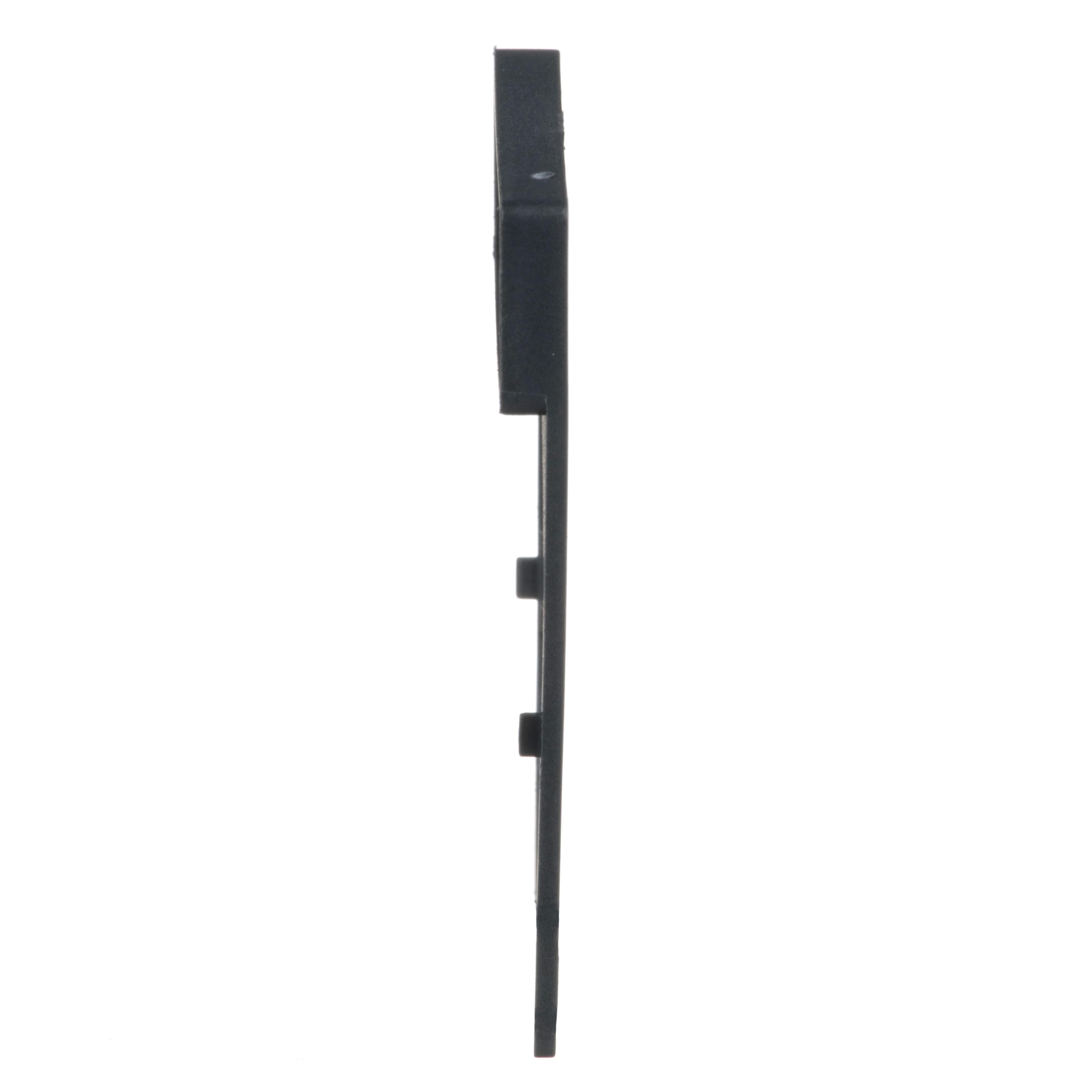

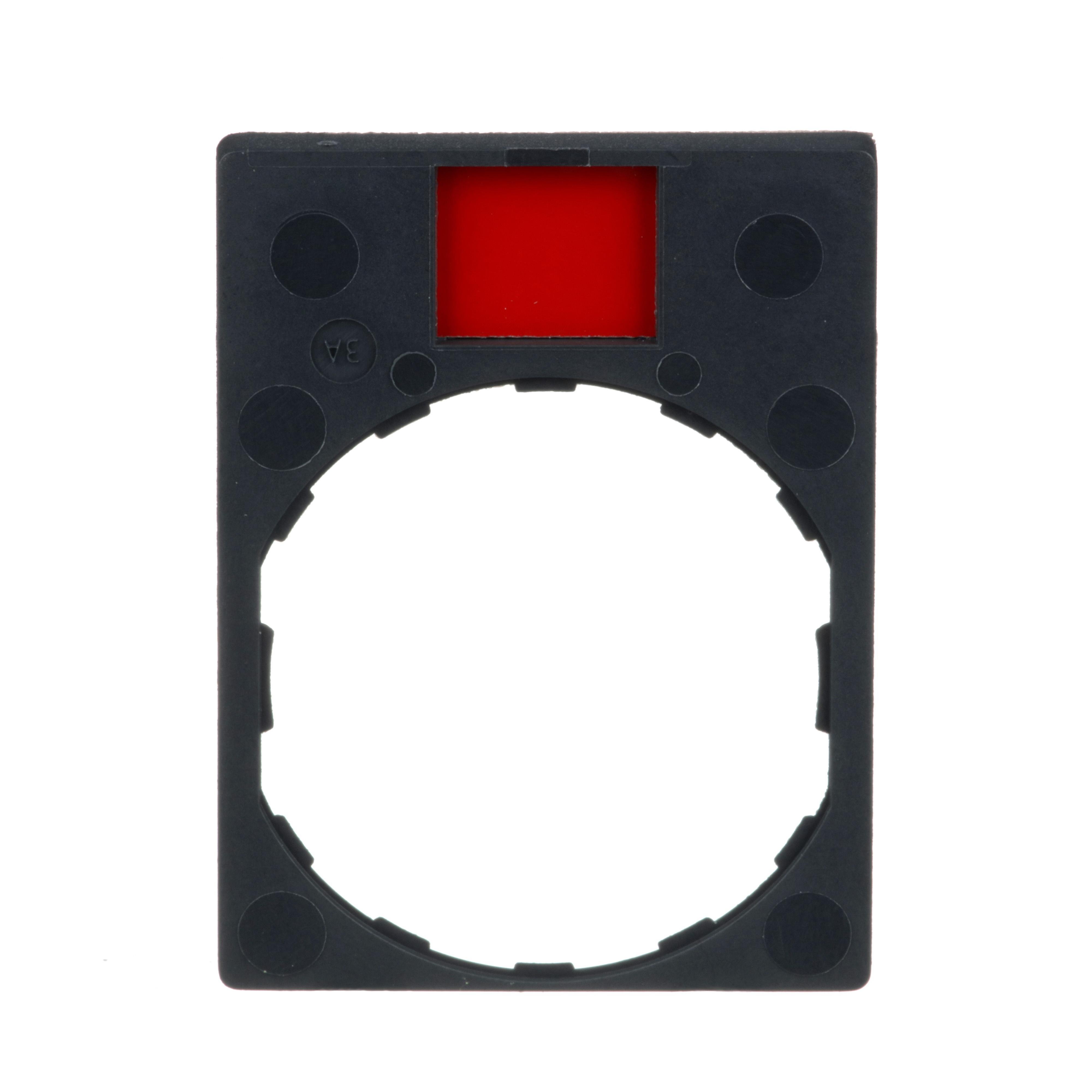

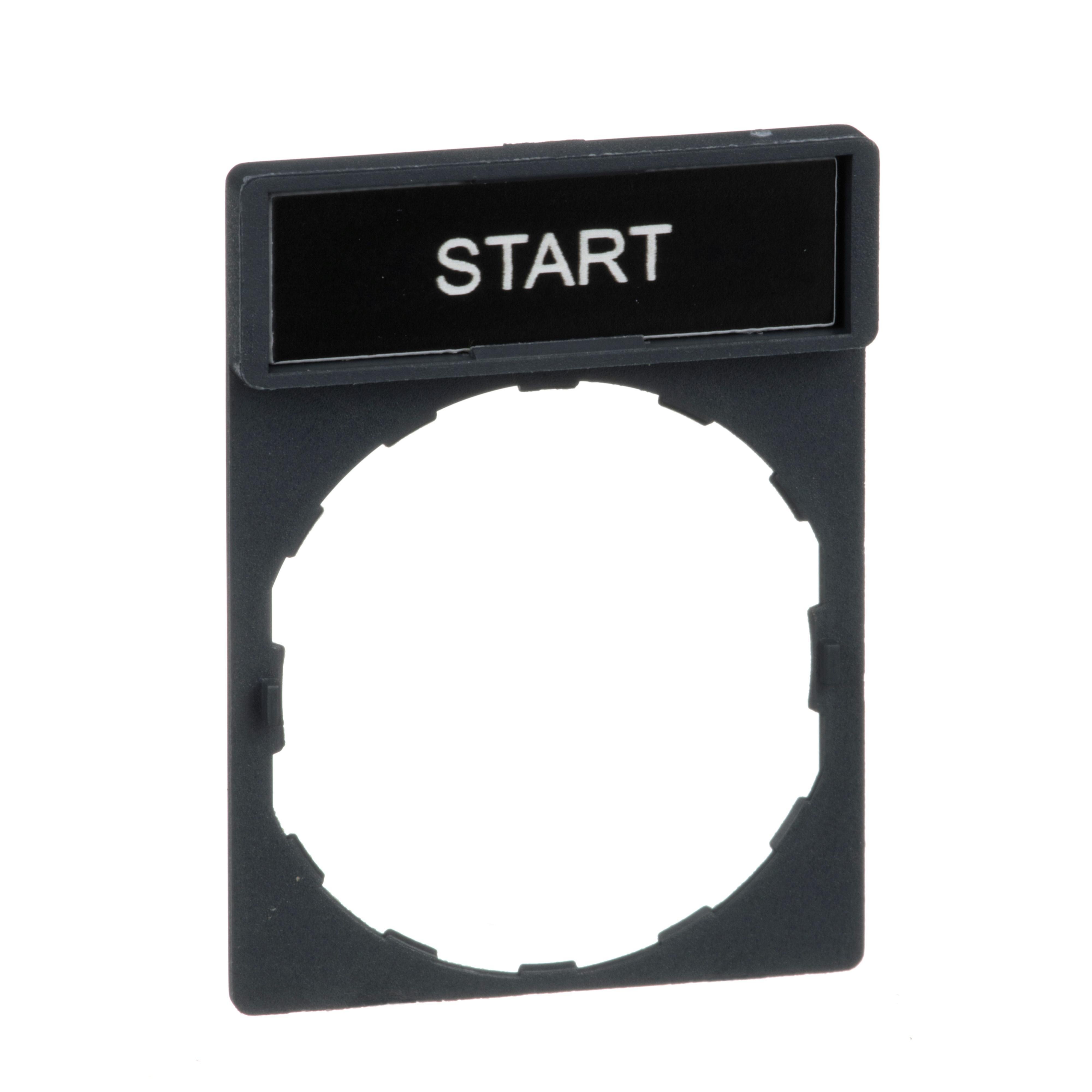

Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START
Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START
Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START
Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START Picture of ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START
Schneider Electric

ZBY2303 - Harmony, 22mm Push Button, legend holder 30 x 40 mm, with legend 8 x 27 mm, marked START

Item Code: 548288
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZBY2303

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Width

1.17mm

Length

1.56mm

AD Application

For use with Harmony™ XB4/XB5 22 mm Dia metal pushbutton

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

PLATE PUSHBUTTON LEGEND 30MM 40MM RND BK

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

1.1700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Field Color

Spec 1 Attribute Value

Black

Spec 10 Attribute

Width

Spec 10 Attribute UOM

MM

Spec 10 Attribute Value

40

Spec 2 Attribute

Height

Spec 2 Attribute UOM

MM

Spec 2 Attribute Value

30

Spec 3 Attribute

Legend

Spec 3 Attribute Value

START

Spec 4 Attribute

Legend Color

Spec 4 Attribute Value

White

Spec 5 Attribute

Material

Spec 5 Attribute Value

Plastic

Spec 6 Attribute

Operator Type

Spec 6 Attribute Value

Pushbutton

Spec 7 Attribute

Plate Shape

Spec 7 Attribute Value

Round

Spec 8 Attribute

Series

Spec 8 Attribute Value

ZBY

Spec 9 Attribute

Type

Spec 9 Attribute Value

Standard
