Schneider Electric

ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal

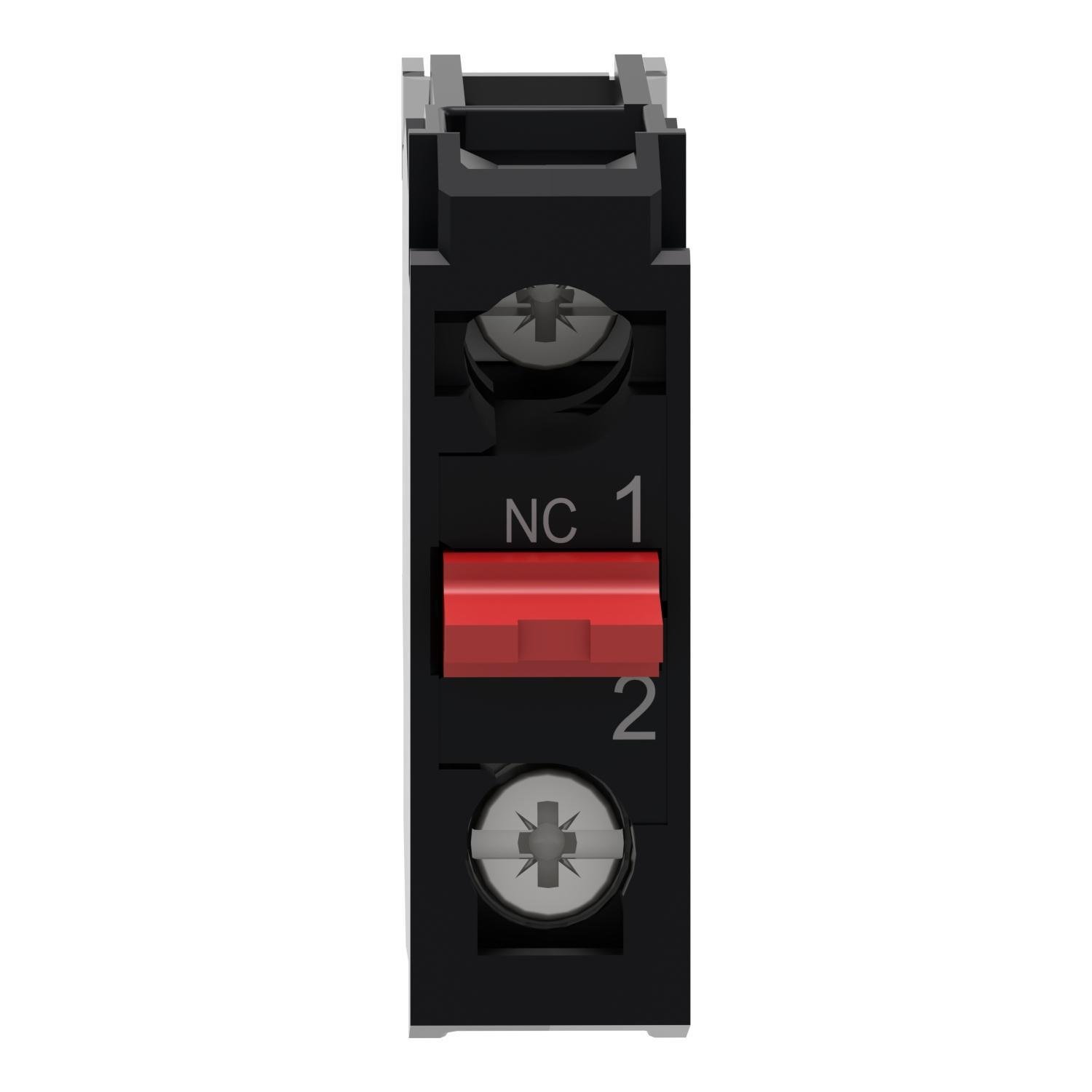

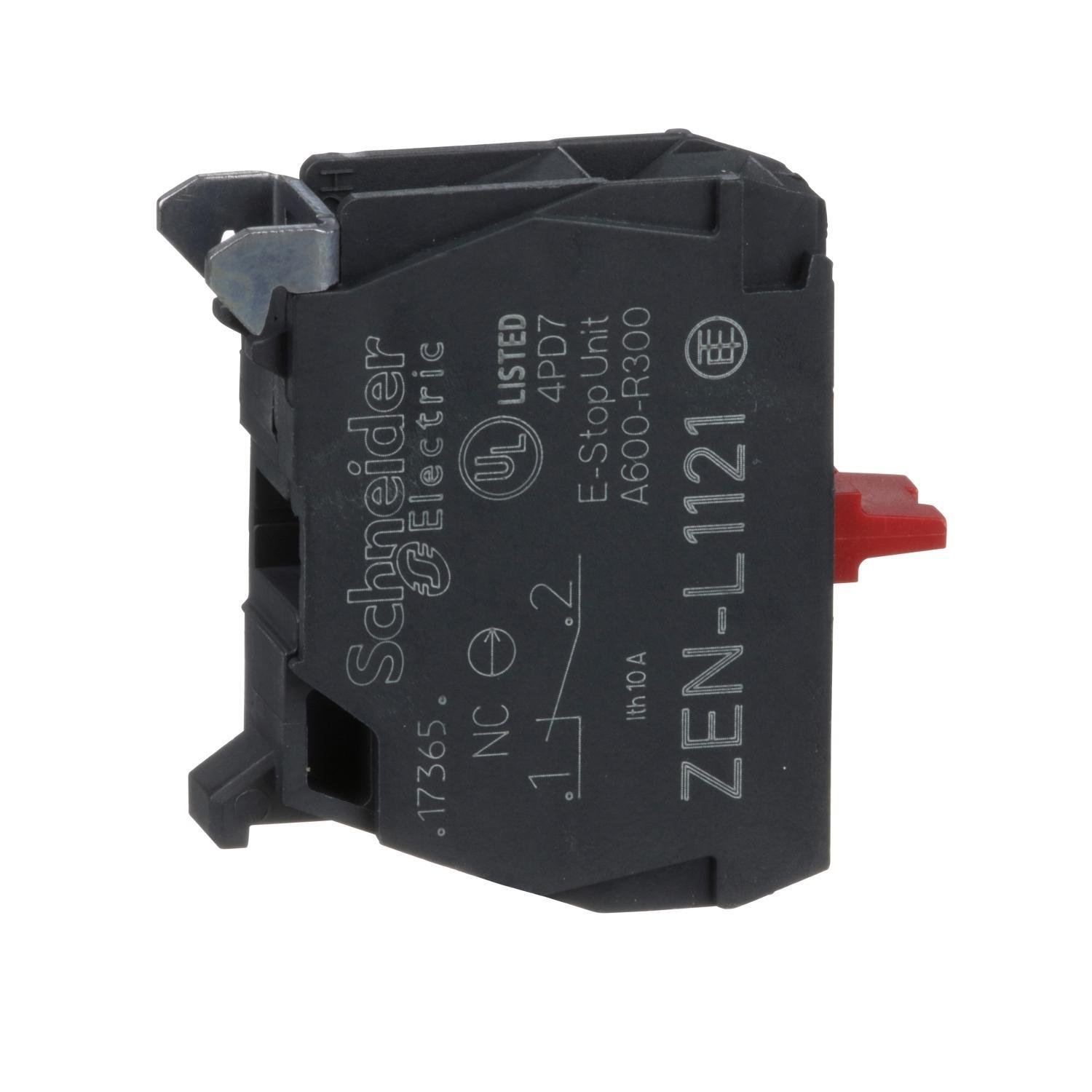

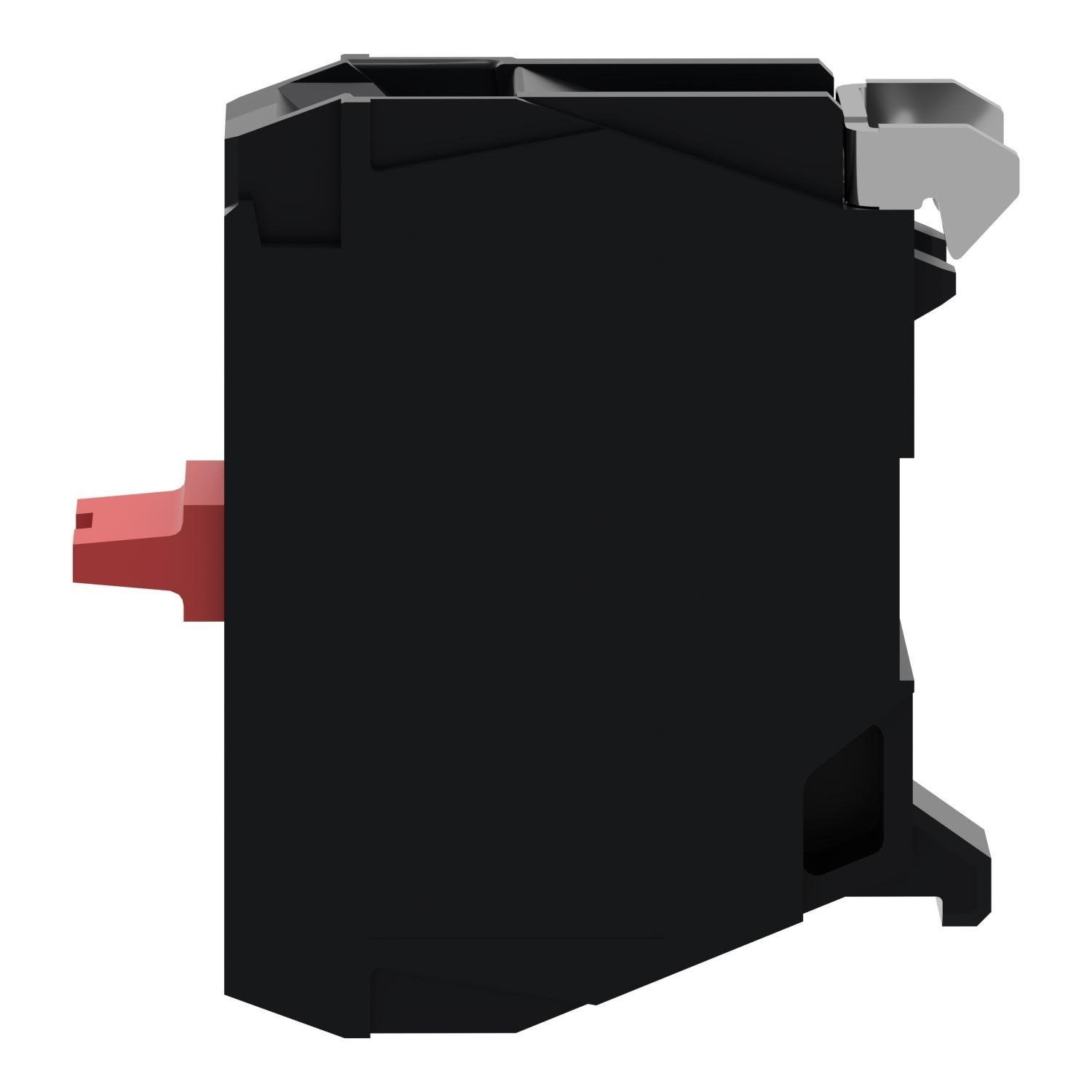

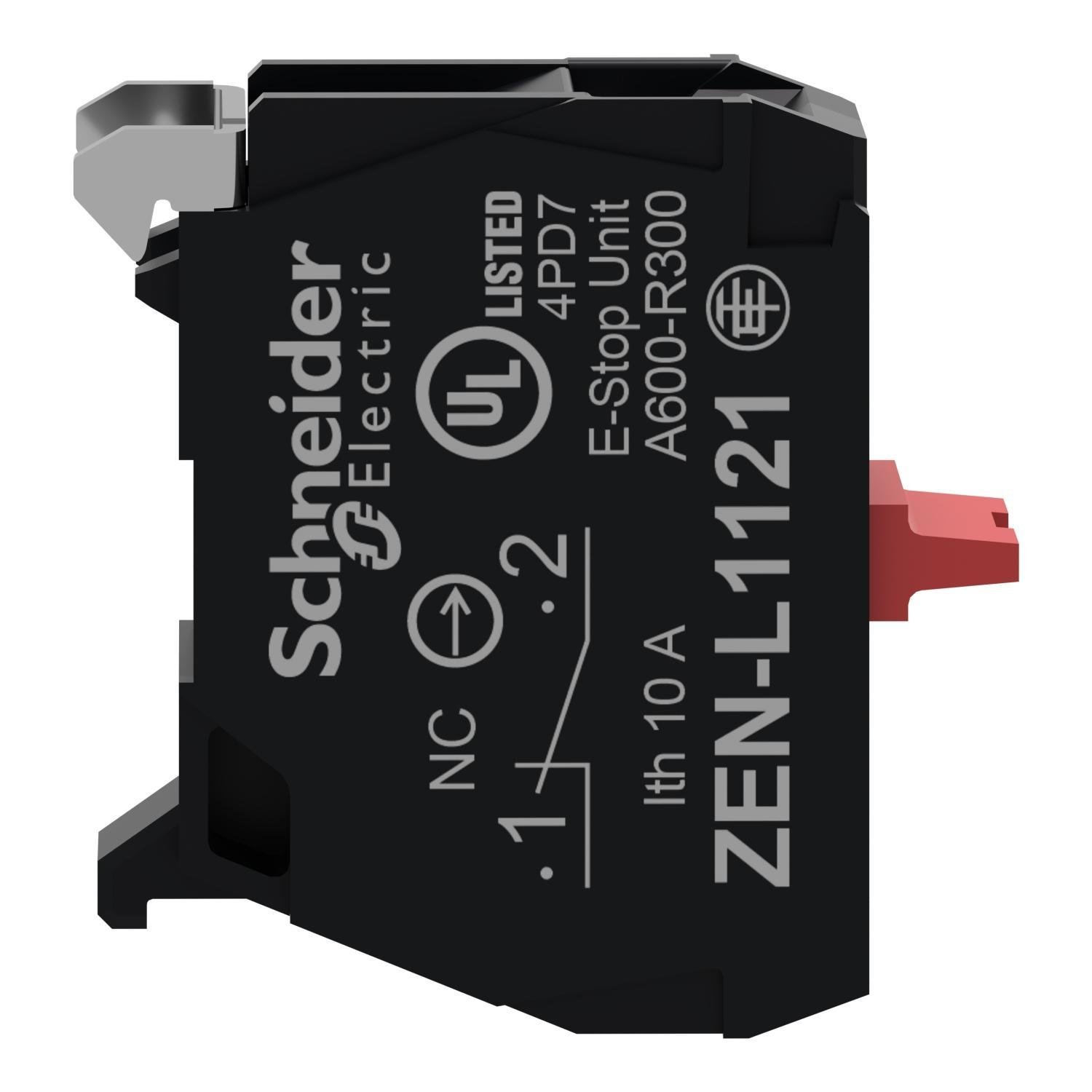

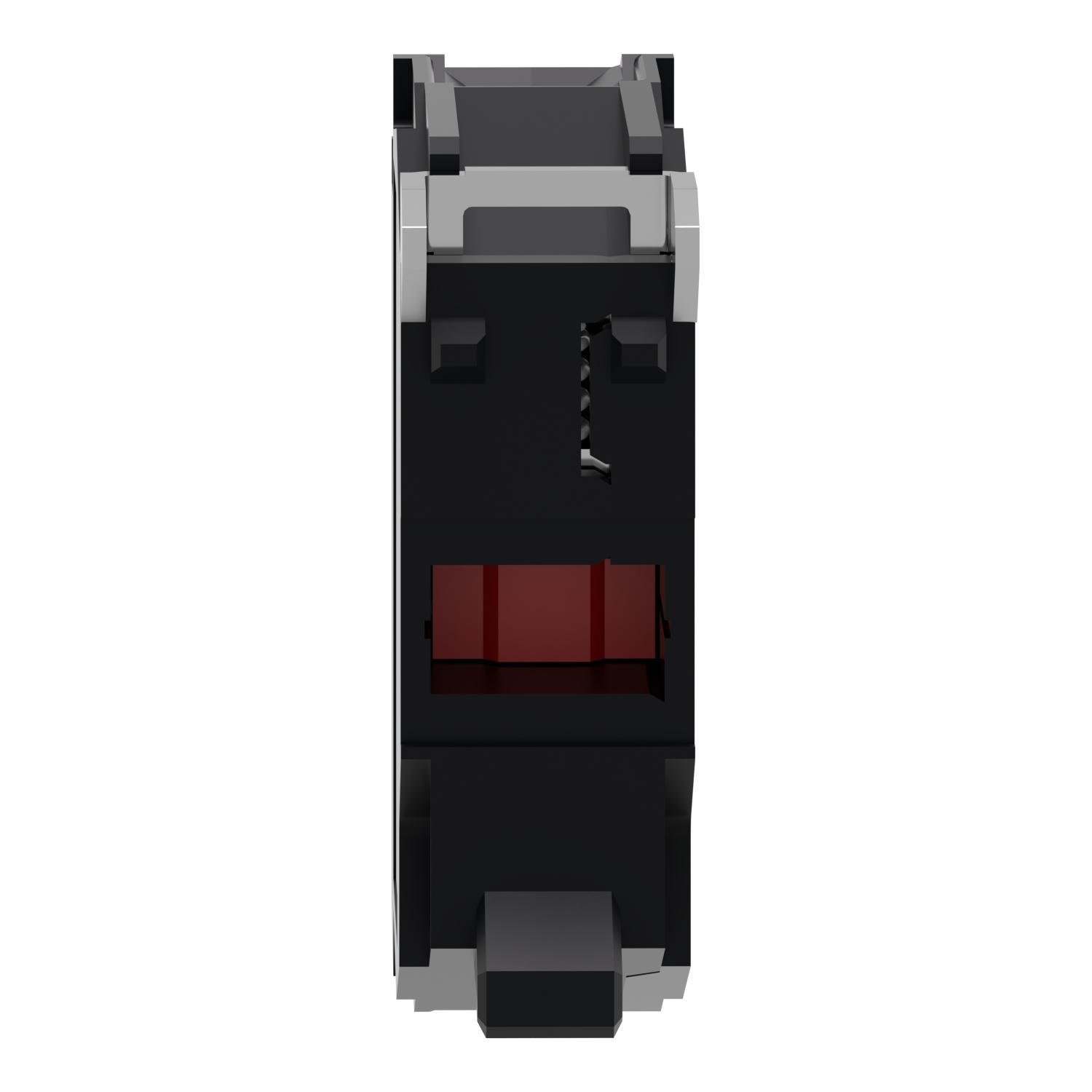

Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal
Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal
Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal
Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal
Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal Picture of ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal
Schneider Electric

ZENL1121 - Harmony, 22mm Push Button, contact block, panel mount, 1 NC, screw clamp terminal

Item Code: 544904
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZENL1121

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.02lb

Width

1.72mm

Length

2.11mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ZENL1121/ZENL1121.spin

AD All Features

Slow break contact operation

AD Alternative Part Number

8016322

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110115086

AD Gtin

03389110115086

AD IDEA Index ID

8016322

AD Invoice Description

BLOCK CONT 1NC 12 A AT 600 VAC/VDC 1 AUX

AD Item Features 01

Slow break contact operation

AD Item Features 02

1 5 mm NC changing electrical state, 4 3 mm total operating travel

AD Item Features 03

10 A fuse protection by cartridge fuse type gG short circuit protection

AD Item Features 04

-25 to 70 deg C operation temperature

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

1.7200

AD Package Width UOM

IN

AD Part Number Keywords

ZENL1121 ; 8016322 ; 785901377511 ; 78590137751 ; 03389110115086 ; 3389110115086

Brand

Square D

Spec 1 Attribute

Contact Configuration

Spec 1 Attribute Value

1NC

Spec 2 Attribute

Contact Material

Spec 2 Attribute Value

Silver Alloy

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

12 A at 600 V AC/DC

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

IP20

Spec 5 Attribute

Mounting

Spec 5 Attribute Value

Rear

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

1

Spec 7 Attribute

Suitable For Use With

Spec 7 Attribute Value

XAL Series, XAPS Control Station, XB5 22 mm Control and Signaling Unit

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Screw clamp

Spec 9 Attribute

Type

Spec 9 Attribute Value

Auxiliary
