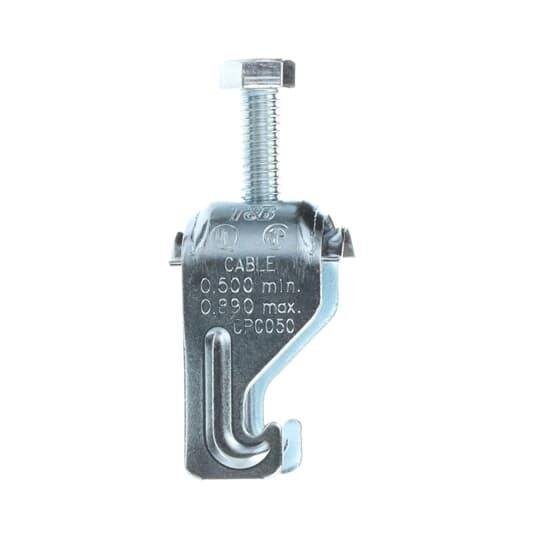

CPC050 - Pipe Straps, Pipe Clamps & Hangers (Series 700)
Description
Specifications
0.1lb
0.01mm
0.01mm
For attaching a full range of rigid/EMT conduit and cable to strut channels
Superstrut
USA
CA
7TBA005370R0001
CLAMP CONDUIT/CBL 1/2IN 200LB STL EMT
1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips® cross-recess and slot) provides a full range of installation options
Reconfigure wiring without complete disassembly
Remove cables easily without disturbing neighboring clamps
Parallel hook design keeps conduits and cable square with strut
Works with all depth of strut 13/16 to 3-1/4 in
2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
ABB
IN
0.0100
IN
1
0.1000
LB
0.0100
IN
Superstrut
CHANNEL & STRUT FITTINGS
Conduit Size
IN
2-Jan
Suitable For Use With
EMT, Rigid Conduit and Cable
Thickness
IN
0.112
Type
1-Piece 1-Hole
Dimensions
1 in W
Finish
GoldGalv®
Load Capacity
LB
200
Material
Steel
Mounting Type
Parallel Hook
Outside Diameter
IN
0.65 to 0.89
Series
700
Specifications
35 ft-lb Torque
