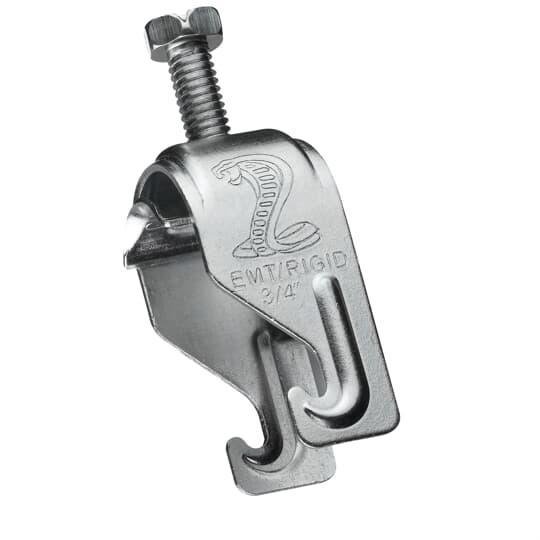

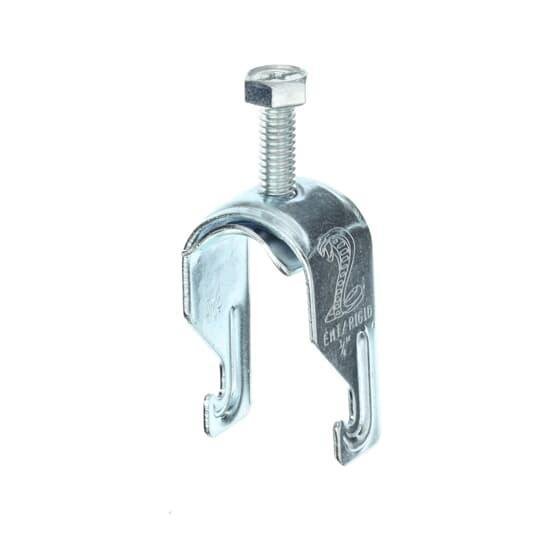

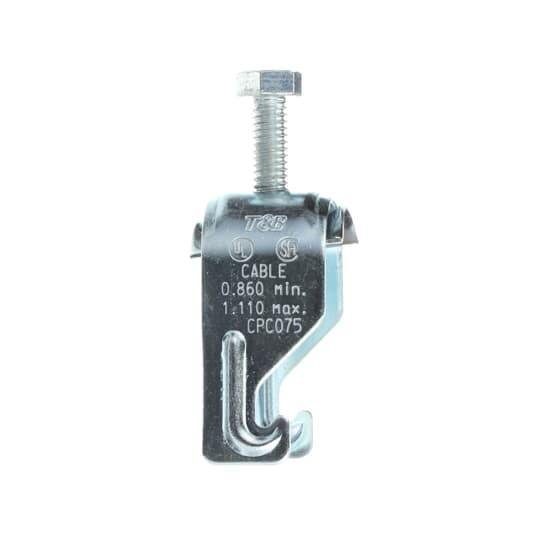

CPC075 - 1-Piece Cable/Pipe Clamp 3/4" Steel
Description
Specifications
0.12lb
0.01mm
0.01mm
For attaching a full range of rigid/EMT conduit and cable to strut channels
Superstrut
USA
CA
7TBA005370R0002
CLAMP CBL AND CONDUIT 3/4IN 200LB STL
1-piece, heavy duty construction ready-to install right out of the box, no need to break-apart and reassemble, no screws or bolts to drop
Heavy duty 5/16 in hex bolt with multi-driver head (Robertson square, Philips® cross-recess and slot) provides a full range of installation options
Reconfigure wiring without complete disassembly
Remove cables easily without disturbing neighboring clamps
Parallel hook design keeps conduits and cable square with strut
Works with all depth of strut 13/16 to 3-1/4 in
2 hooks on the same side make the clamp easy-to install and keep conduits and cable square with strut
Rugged stirrup and wide saddle design holds securely with no damage to conduit or cable
ABB
IN
0.0100
IN
1
0.1200
LB
0.0100
IN
Superstrut
CHANNEL & STRUT FITTINGS
Conduit Size
IN
4-Mar
Type
1-Piece
Finish
Electro Galvanized/Silver Galv®
Load Capacity
LB
200
Material
Steel
Mounting Type
Parallel Hook
Outside Diameter
IN
0.86 to 1.11
Series
700
Specifications
35 ft-lb Torque
Suitable For Use With
EMT, Rigid Conduit and Cable
