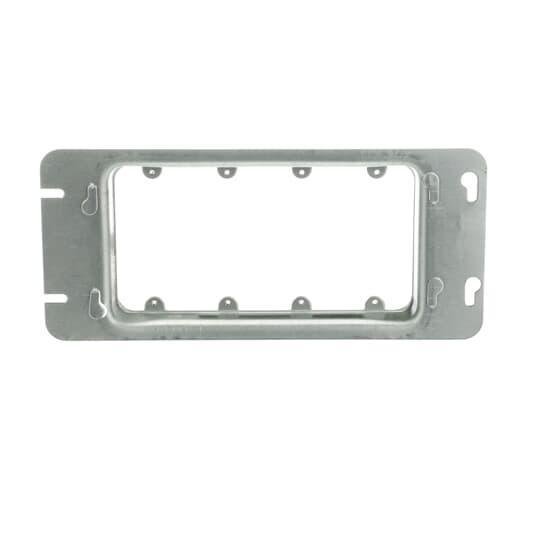

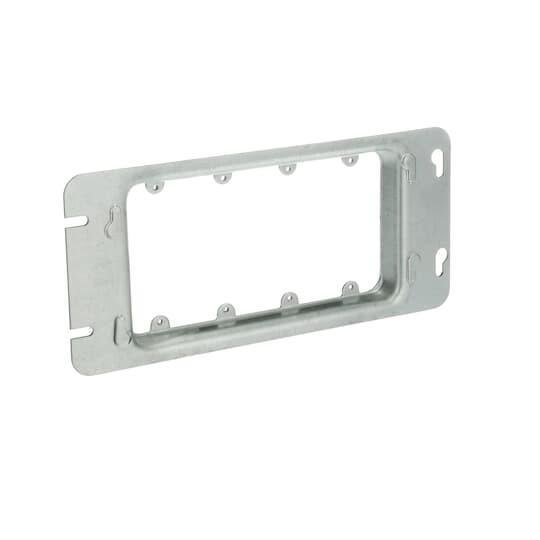

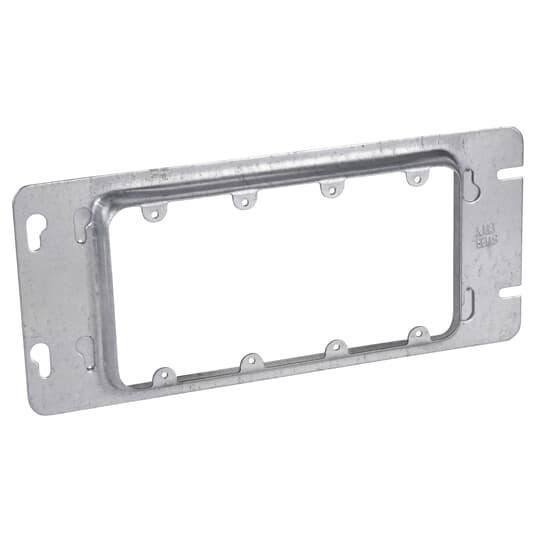

4 GC - 13/16" D Four Gang Box Switch Ring
Item Code: 18982
Category
Bar Hangers & Outlet Box Accessories
Manufacturer ABB
Manufacturer Ref 4GC
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.5lb
Width
0.01mm
Length
0.01mm
AD Application
For to fit the next smaller size box
AD Brand (Description)
Steel City
AD Country
USA
AD Country Of Origin
US
AD Invoice Description
COVER BOX OUT 10-5/8IN 4-11/16IN STL 4 4
AD Item Features 01
13/16 in raised for plaster
AD Item Features 02
Tapped holes in ears are spaced 3-9/32 in to accommodate all standard receptacles and switches
AD Item Features 03
Without knockout
AD Item Features 04
Holes between gangs are spaced on 1-3/16 in centers
AD Item Features 05
Furnished with extra plugged screw holes, if these screw holes are used, the cover will fit the next smaller size box
AD Item Features 06
The cover will fit the next smaller size box
AD Manufacturer (Description)
ABB
AD Package Height UOM
IN
AD Package Length
0.0100
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.5000
AD Package Weight UOM
LB
AD Package Width
0.0100
AD Package Width UOM
IN
Brand
Steel City
Category
BAR HANGERS & OUTLET BOX ACCESSORIES
Spec 1 Attribute
Capacity
Spec 1 Attribute UOM
cu-in
Spec 1 Attribute Value
13.5
Spec 2 Attribute
Finish
Spec 2 Attribute Value
PRE-GALVANIZED
Spec 3 Attribute
Length
Spec 3 Attribute UOM
IN
Spec 3 Attribute Value
10/5/2008
Spec 4 Attribute
Material
Spec 4 Attribute Value
Steel
Spec 5 Attribute
Number of Gangs
Spec 5 Attribute Value
4
Spec 6 Attribute
Number of Outlets
Spec 6 Attribute Value
4
Spec 7 Attribute
Shape
Spec 7 Attribute Value
Rectangle
Spec 8 Attribute
Width
Spec 8 Attribute UOM
IN
Spec 8 Attribute Value
4/11/2016
