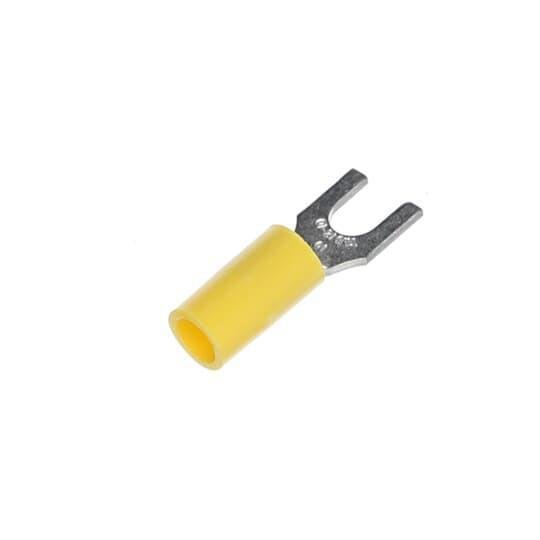

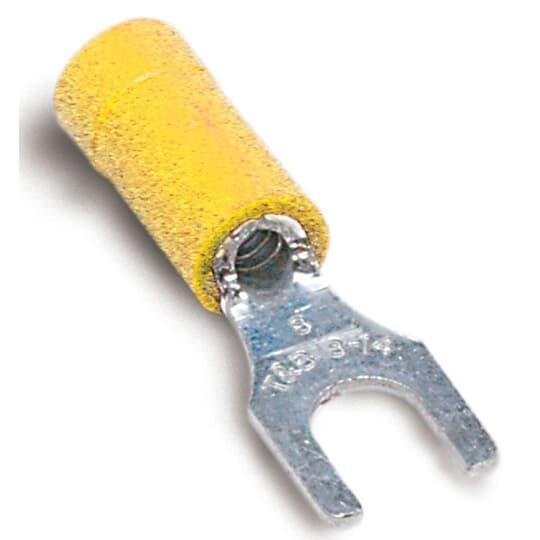

10RC-10F - T&B 10RC-10F NON BULK STAKON
Description
Specifications
0.02lb
0.01mm
0.01mm
Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point
Thomas & Betts
USA
US
TERMINAL FORK 12 TO 10AWG 1.09IN COPPER
Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point
Brazed seam barrel is serrated for high pull-out value
Insulation is Color coded
WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
ABB
IN
0.0100
IN
1
0.0200
LB
0.0100
IN
Thomas & Betts
SMALL TERMINALS & CONNECTORS
Barrel Type
Brazed Seam/Serrated
Temperature Rating
deg C
105
Tongue Size
0.38 in W x 0.04 in THK
Tongue Type
Fork
Type
Insulated
Voltage Rating
V AC
600
Color
Yellow
Conductor Size
AWG
12 To 10
Finish
Electroplated Tin
Length
IN
1.09
Material
Copper
Series
RC Series
Specifications
0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
Stud Size
#10
