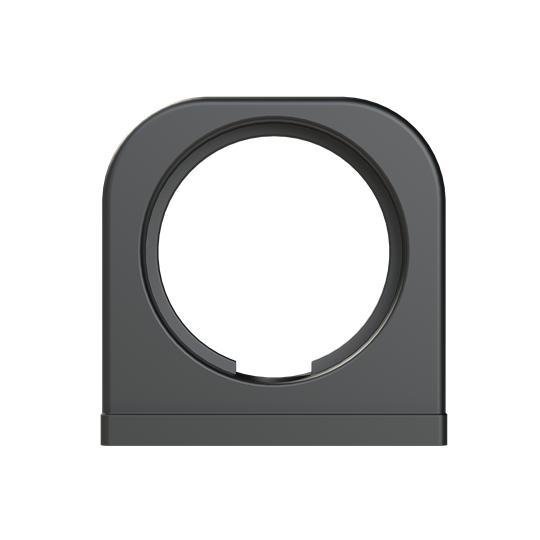

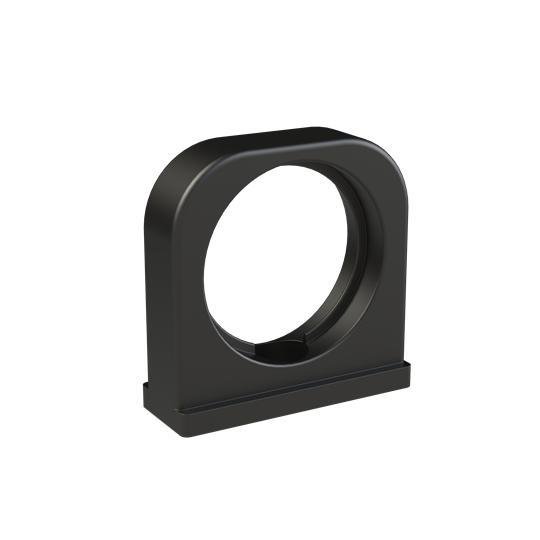

BFH-36-0 - Flexible Conduit Support Systems
Description
Specifications
0.04lb
56mm
0.01mm
0.01mm
20mm
Fixation of PMAFLEX Conduits, Machine Building and Installation Applications
Thomas & Betts
USA
CH
SYSTEM SPRT CONDUIT NW36/M40 NLWK RAIL
PMACLIP 1-piece black system support with safety lid
Very high impact-resistant
Optimal axial strain-relief due to integrated rib
Suitable for overhead installations due to safety lid
Quick mounting due to 1-hole fixing
Very Good Chemical Properties
High retention forces
Free from halogen and cadmium
Fits both conduit profiles - fine (T) and coarse (G)
Fits to rail for system supports FHS
High grade, specially formulated polyamide 6
ABB
IN
0.0100
IN
1
0.0400
LB
0.0100
IN
Thomas & Betts
PLASTIC RIGID CONDUIT FITTINGS
Dimensions
56 mm H x 55.5 mm W x 20 mm D
Finish
Black
Material
Polyamide 6
Mounting Type
Fastened
Size
NW36/M40
Specifications
20 mm THK, 1-Hole
Suitable For Use With
PMAFLEX, PMA Smart Line NW36/M40 Conduit
Temperature Rating
deg C
-40 To 105
Type
1-Piece Flexible
