BGG-70 - Flexible Conduits & Fittings
Description
Specifications
0.27lb
112mm
0.01mm
0.01mm
43mm
For cable protection systems in a wide range of industrial applications
Thomas & Betts
USA
CH

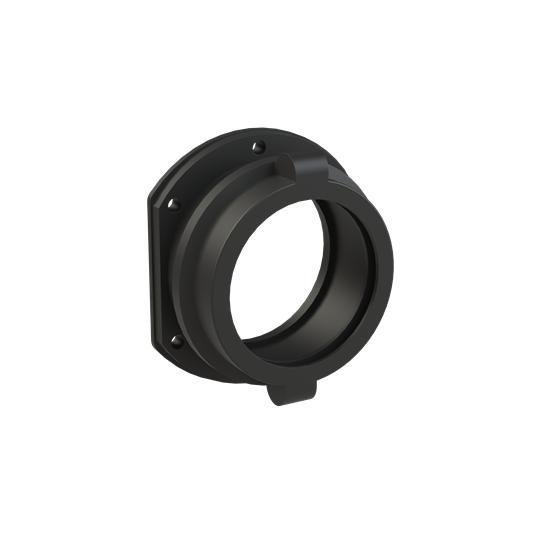

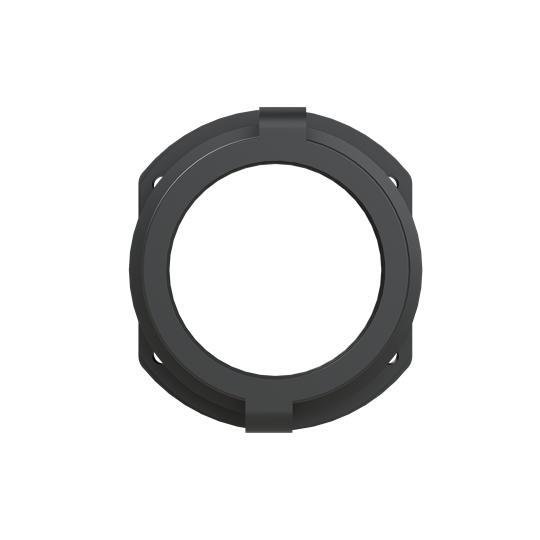

FLANGE CONDUIT NW70 POLYAMIDE 6
For cable protection systems in a wide range of industrial applications
Using the enclosed seals an ingress protection rating of upto IP65 can be achieved
Can be used outdoors with flange seal for standard applications where water proofness and weathering resistance are required
Very High Impact Resistance
Vibration-proof connection to PMAFLEX conduit
High conduit pull-out strength
Selectable flange seal
Very Good Chemical Properties
Self-Extinguishing
Free from Halogens and Cadmium
IP50 ingress protection
For indoor applications the flanges are available with a special flange seal for contact with substances like fuels, mineral oils, emulsions, etc
ABB
IN
0.0100
IN
1
0.2700
LB
0.0100
IN
Thomas & Betts
Bx - Non Metallic Cables - S.E.C. - Liquidtight - Flex. Fittings
Conduit Size
NW70
Dimensions
114 mm H x 97 mm W x 48 mm D
Material
Polyamide 6
Specifications
Black Color
Suitable For Use With
NW-56, PMAFLEX, PMA Smart Line Flexible Conduit
Temperature Rating
deg C
-40 To 105
Type
Straight
