Thomas & Betts

RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM

Category Small Terminals & Connectors

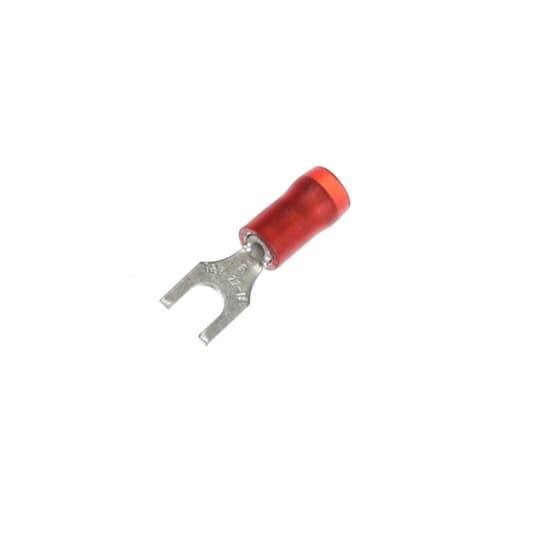

Picture of RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM Picture of RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM
Picture of RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM Picture of RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM
Thomas & Betts

RA18-6F - T&B RA18-6F 22-18 INS SPADE TERM

Item Code: 19560
Category Small Terminals & Connectors
Manufacturer ABB
Manufacturer Ref RA18-6F
Minimum order quantity 100

Document
Call for Availability
Add to Favorites
Compare

Description

Insulated Nylon Fork Terminal For Wire Range 22-16 Stud Size #6, Red

Specifications

Weight

0.25lb

Height

3mm

Width

1.1mm

Length

2.09mm

AD Brand (Description)

Thomas & Betts

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TERMINAL FORK 22 TO 16AWG 0.83IN COPPER

AD Item Features 01

Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep

AD Item Features 02

Brazed seam barrel is serrated for high pull-out value

AD Item Features 03

Nylon jacket is Color coded

AD Item Features 04

WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools

AD Manufacturer (Description)

ABB

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

2.0900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

6.9100

AD Package Volume UOM

cu-in

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

1.1000

AD Package Width UOM

IN

Brand

Thomas & Betts

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Barrel Type

Spec 1 Attribute Value

Brazed Seam/Serrated

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

105

Spec 11 Attribute

Tongue Size

Spec 11 Attribute Value

0.25 in W x 0.02 in THK

Spec 12 Attribute

Tongue Type

Spec 12 Attribute Value

Fork

Spec 13 Attribute

Type

Spec 13 Attribute Value

Insulated

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Conductor Size

Spec 3 Attribute UOM

AWG

Spec 3 Attribute Value

22 To 16

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Electroplated Tin

Spec 5 Attribute

Length

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

0.83

Spec 6 Attribute

Material

Spec 6 Attribute Value

Copper

Spec 7 Attribute

Series

Spec 7 Attribute Value

RA Series

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

0.136 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation

Spec 9 Attribute

Stud Size

Spec 9 Attribute Value

#6
