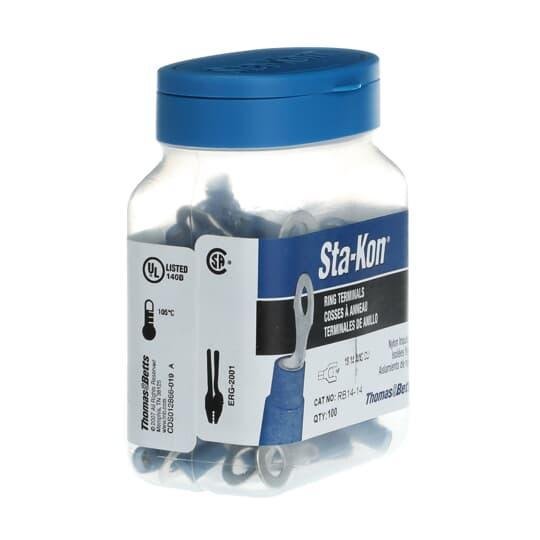

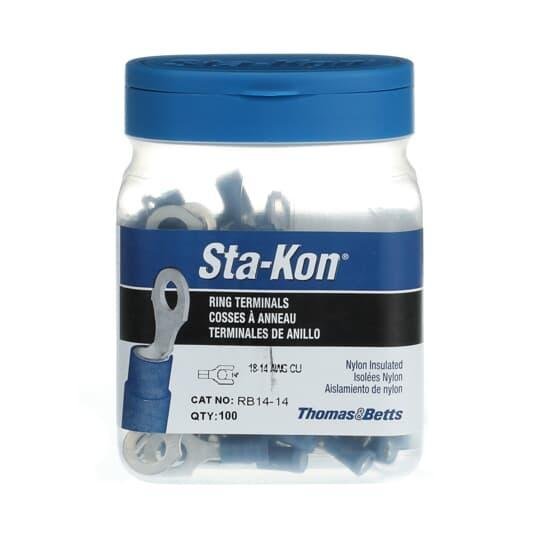

RB14-14 - Ring Terminal
Description
Specifications
0.25lb
3.5mm
1.3mm
2.5mm
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Thomas & Betts
USA
US
TERMINAL RING 18 TO 14AWG 1.08IN COPPER
Self-insulated with high dielectric strength nylon sleeves
An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
Made of copper and has electro-tin plating for high conductivity/corrosion resistance
100 pieces/pack
ABB
3.5000
IN
2.5000
IN
1
12.1000
cu-in
0.2500
LB
1.3000
IN
Thomas & Betts
SMALL TERMINALS & CONNECTORS
Barrel Type
Insulation Grip Sleeve
Temperature Rating
deg C
105
Tongue Size
0.47 in W x 0.03 in THK
Tongue Type
Ring
Type
Insulated
Voltage Rating
V AC
600
Color
Blue
Conductor Size
AWG
18 To 14
Finish
TiN Coated
Length
IN
1.08
Material
Copper
Series
RB Series
Specifications
0.162 in Dia Maximum Insulation, 0.31 in Clearance, Nylon Insulation
Stud Size
IN
4-Jan
