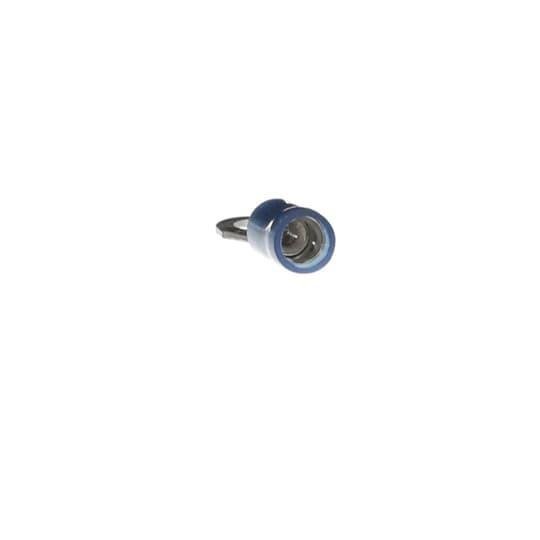

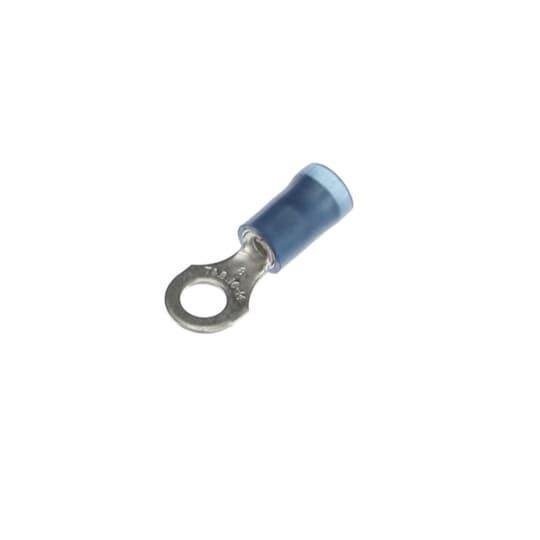

RB14-8 - T&B RB14-8 18-14 NYL RING TERM
Description
Specifications
0.31lb
3mm
1.1mm
2.09mm
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Thomas & Betts
USA
US
TERMINAL RING 18 TO 14AWG 0.89IN COPPER
Self-insulated with high dielectric strength nylon sleeves
An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
Made of copper and has electro-tin plating for high conductivity/corrosion resistance
100 pieces/pack
ABB
3.0000
IN
2.0900
IN
1
6.9100
cu-in
0.3100
LB
1.1000
IN
Thomas & Betts
SMALL TERMINALS & CONNECTORS
Barrel Type
Insulation Grip Sleeve
Temperature Rating
deg C
105
Tongue Size
0.31 in W x 0.03 in THK
Tongue Type
Ring
Type
Insulated
Voltage Rating
V AC
600
Color
Blue
Conductor Size
AWG
18 To 14
Finish
TiN Coated
Length
IN
0.89
Material
Copper
Series
RB Series
Specifications
0.162 in Dia Maximum Insulation, 1/4 in Clearance, Nylon Insulation
Stud Size
#8
