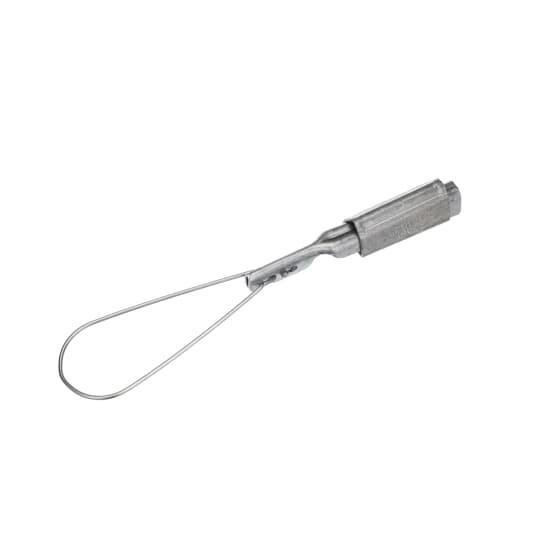

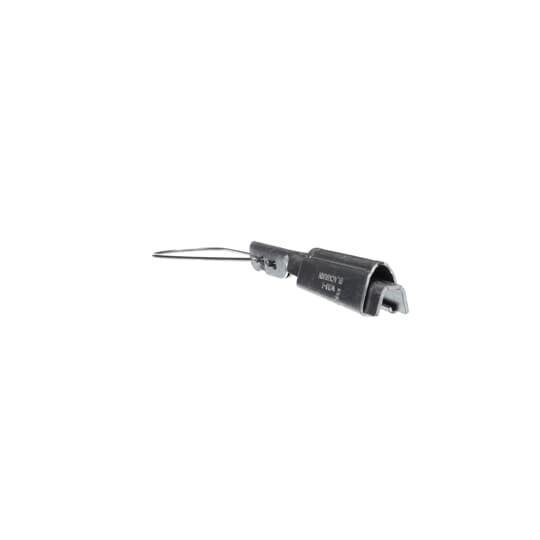

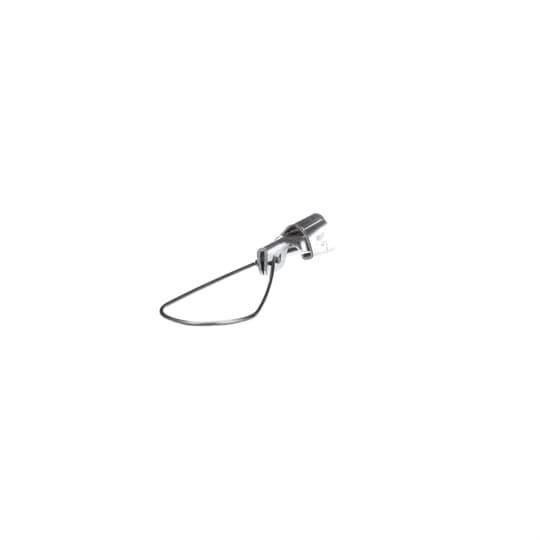

W20-1 - Service Wedge Clamps
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.24lb
Width
0.01mm
Length
0.01mm
AD Application
For dead end self supporting drop wire applications
AD Brand (Description)
Thomas & Betts
AD Country
USA
AD Country Of Origin
MX
AD Invoice Description
CLAMP WG ENTR SVCE ASCR/AAAC/SOL/STRD AL
AD Item Features 01
Drop wire may be cut to exact length to adjust drop wire sag, this also saves the conductor
AD Item Features 02
Can be attached to bare neutral at any point in the span
AD Item Features 03
Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
AD Item Features 04
6/1 to 1/0 AWG ACSR tensile values conductor
AD Manufacturer (Description)
ABB
AD Package Height UOM
IN
AD Package Length
0.0100
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.2400
AD Package Weight UOM
LB
AD Package Width
0.0100
AD Package Width UOM
IN
Brand
Thomas & Betts
Category
SMALL TERMINALS & CONNECTORS
Spec 1 Attribute
Color
Spec 1 Attribute Value
Blue
Spec 10 Attribute
Voltage Rating
Spec 10 Attribute UOM
KV
Spec 10 Attribute Value
35
Spec 2 Attribute
Conductor Size
Spec 2 Attribute Value
4 to 1/0 AWG, 2 to 2/0 AWG
Spec 3 Attribute
Conductor Type
Spec 3 Attribute Value
ASCR/AAAC/Solid/Stranded
Spec 4 Attribute
Dimensions
Spec 4 Attribute Value
12-1/2 in L x 2-3/8 in D
Spec 5 Attribute
Finish
Spec 5 Attribute Value
Bare
Spec 6 Attribute
Material
Spec 6 Attribute Value
Aluminum
Spec 7 Attribute
Series
Spec 7 Attribute Value
W-1
Spec 8 Attribute
Specifications
Spec 8 Attribute Value
1-Conductor, Tension Connection, 1.8 lb Tensile
Spec 9 Attribute
Type
Spec 9 Attribute Value
Type W
