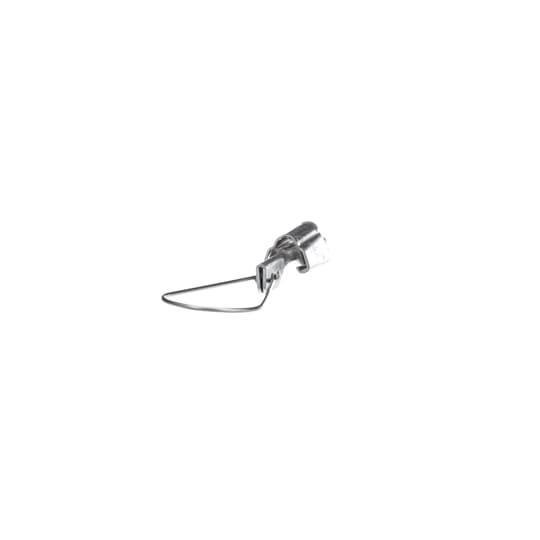

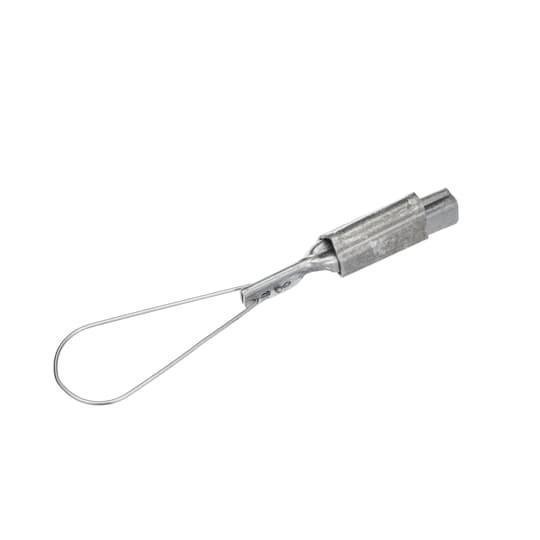

W40-1 - Service Wedge Clamps
Description
Specifications
0.27lb
0.01mm
0.01mm
For dead end self supporting drop wire applications
Thomas & Betts
USA
MX
CLAMP WG ENTR SVCE ASCR/AAAC/STRD AL R
Drop wire may be cut to exact length for adjustments in drop wire sag
Can be attached to bare neutral at any point in the span
Versatile use, flexible and rigid bails grip ACSR, AAC and AAAC conductors
All seasons environmental conditions
Saves Conductor - Drop Wire May Be Cut To Exact Length
Aluminum wedge and slider
W40 series clamps rated 850 lb, ultimate tension for 1/0 AWG ASCR, AL or AAAC
ABB
IN
0.0100
IN
1
0.2700
LB
0.0100
IN
Thomas & Betts
SMALL TERMINALS & CONNECTORS
Color
Red
Voltage Rating
KV
35
Conductor Size
AWG
4/0 to 2/0
Conductor Type
ASCR/AAAC/Stranded
Dimensions
12-3/4 in L x 2-3/8 in D
Finish
Bare
Material
Aluminum
Series
W-1
Specifications
1-Conductor, Tension Connection
Type
Type W
