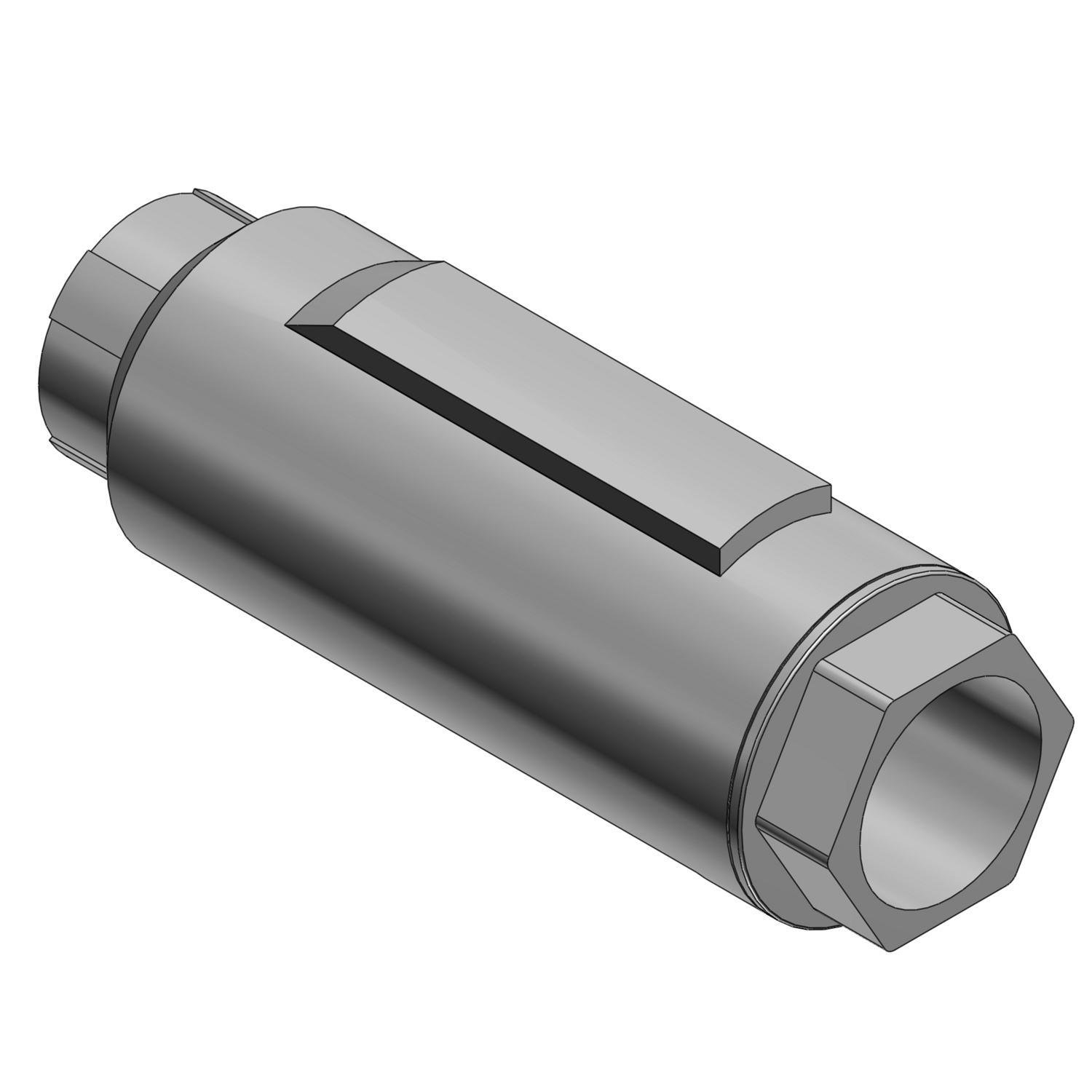

XJG34-TB - XJG Expansion Couplings
Description
Specifications
5.2lb
6.5mm
0.01mm
0.01mm
For contraction and expansion of a conduit run without reducing the mechanical or bonding integrity of the raceway
Thomas & Betts
USA
CN
COUPLING EXP CONDUIT 1IN RGD CONDUIT MI
True internal bonding jumper-no external grounding strap required, tamper proof internal jumper protected from the environment
Exceeds code requirements for long conduit runs to permit linear movement
No Disassembly Necessary to Install
Fast, simple and requires fewer steps
Internal bonding jumper tinned copper braid, packing PTFE/synthetic fiber material
PTFE/synthetic fiber material packing
4 in movement
ABB
6.5000
IN
0.0100
IN
1
5.2000
LB
0.0100
IN
Thomas & Betts
STEEL RIGID CONDUIT FITTINGS
Dimensions
2.67 in OD x 10 in L x 2.99 in H
Finish
Zinc Plated
Material
Malleable Iron
Series
XJG
Size
IN
1
Suitable For Use With
Rigid Conduits
