Telemecanique

9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig

Category Pressure Switches

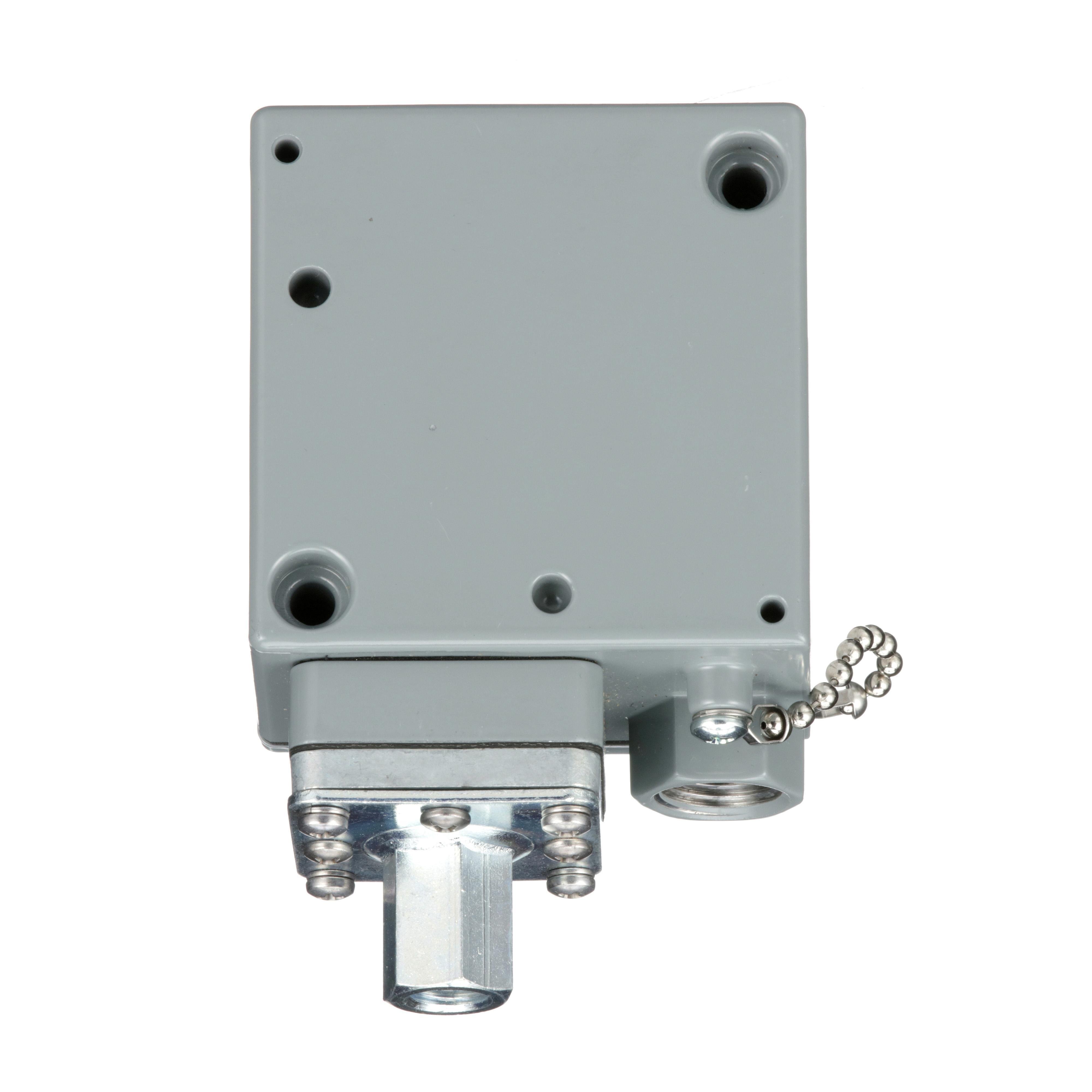

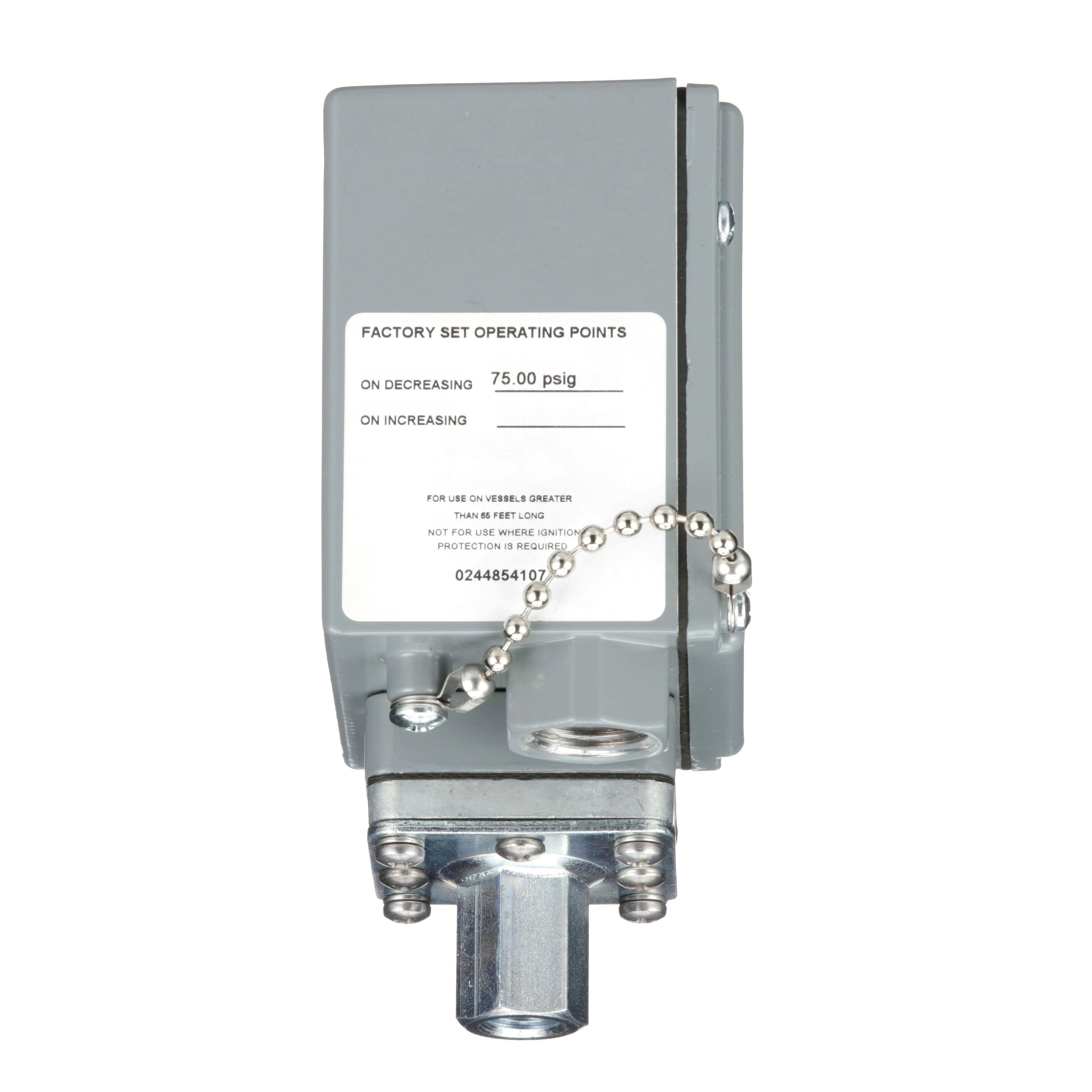

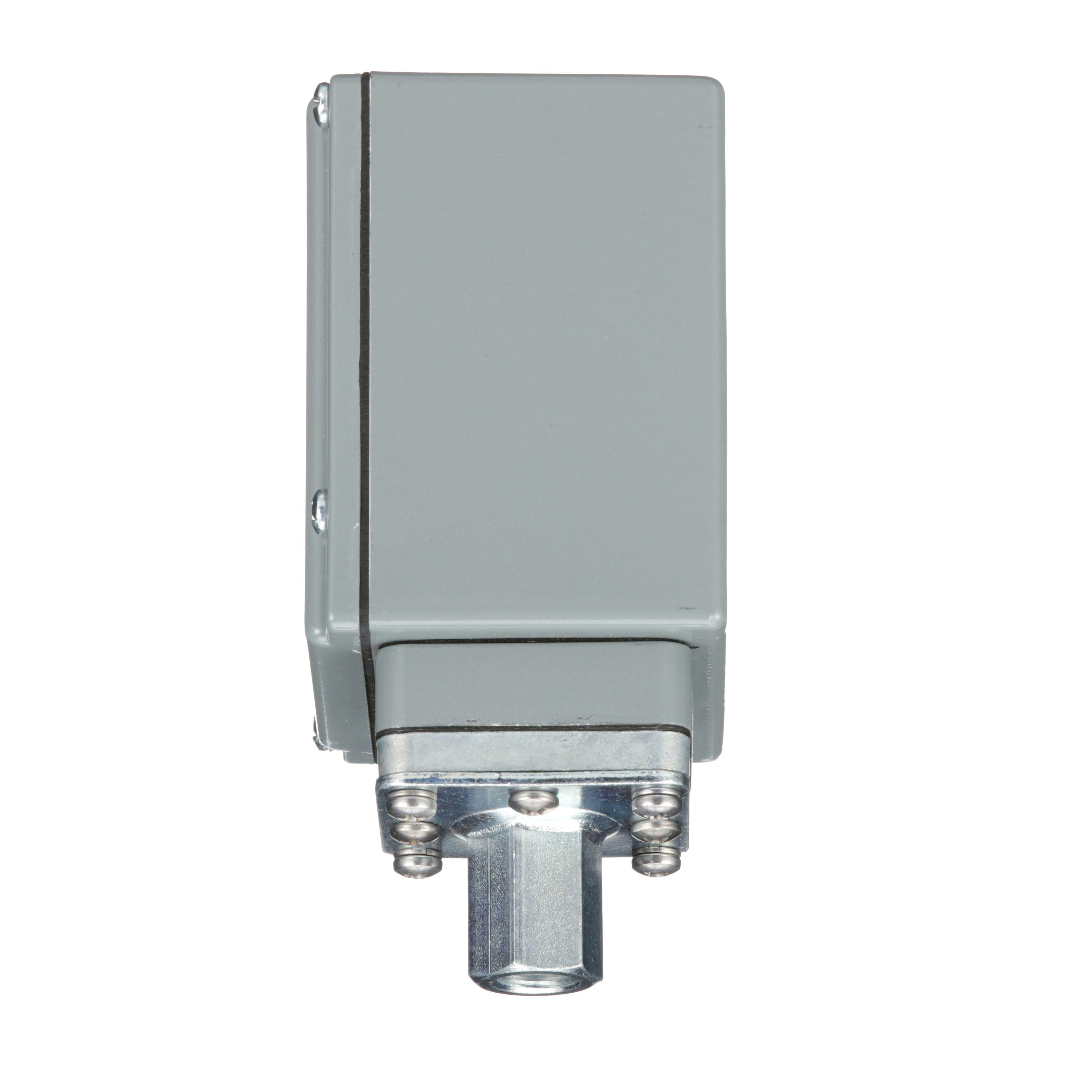

Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig
Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig
Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig
Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig Picture of 9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig
Telemecanique

9012GAW5 - industrial pressure switch, 9012G, adjustable scale, 2 thresholds, 3.0 to 150 psig

Item Code: 32582
Category Pressure Switches
Manufacturer Ref 9012GAW5

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Nema Pressure Switches range, an offer of electromechanical pressure switches. Their efficient design uses durable, low mass components for excellent performance under heavy duty vibration and shock conditions. The 9012G pressure switches line offers devices with either diaphragm or piston actuators for optimum life, versatility, and speed of operation. The pressure switch with an approximate adjustable differential at mid range of 6psi to 30psi and a maximum pressure of 475psi. 9012G machine tool switches are available in Open, NEMA 1, NEMA 4, and NEMA 7, 9 enclosures. This switch has a diaphragm actuator which can be operated from any position, adjustable differential scale for internal settings and regulation of 2 thresholds. Offers mechanical durability of about 5 million operating cycles. Pressure switches are used in a wide variety of applications such as compressed air systems, stamping presses, HVAC equipment, automatic grinders, chillers, welders, pumping systems, process equipment, machine tools and molding machines. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 4/4X/13 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. Single stage pressure switch is control circuit rated device used in pneumatic or hydraulic systems on a wide variety of machine and process applications to protect the equipment and control or monitor the system pressure.

Specifications

Weight

2.81

Height

5.4

Width

6.2

Length

9.8

AD Application

Regulation Between 2 Thresholds Applications

AD Brand (Description)

Telemecanique

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH PRESS 3 TO 150PSI 6 TO 30PSI AL

AD Item Features 01

High shock-resistance

AD Item Features 02

High set point stability

AD Item Features 03

Internal or external range adjustment

AD Item Features 04

No drain line required

AD Item Features 05

Dual numerical range scale (psi and kPa)

AD Item Features 06

Nitrile diaphragms and zinc plated steel flanges are standard

AD Item Features 07

NC-NO, SPDT-DB, form Z, snap action, silver nickel contact

AD Item Features 08

Hydraulic oil (-40 to 250 deg F), non-corrosive liquid, air, non-corrosive gas controlled fluid

AD Item Features 09

1/4 in 18 NPTF conforming to UL 508 fluid connection

AD Item Features 10

Regulation between 2 thresholds, adjustable scale

AD Item Features 11

4 screw terminal block

AD Item Features 12

Screw clamp terminal, 22 to 12 AWG electrical connection

AD Item Features 13

Zinc Plated Steel Flange

AD Item Features 14

Nitrile (Buna-N) diaphragm

AD Item Features 15

Die cast aluminum alloy 380, 120 operating cycles/min (maximum)

AD Item Features 16

1/2 in NPT conduit entrance cable entry

AD Item Features 17

Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions

AD Manufacturer (Description)

YAGEO Corporation

AD Package Height

5.4000

AD Package Height UOM

IN

AD Package Length

9.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

328.1000

AD Package Volume UOM

cu-in

AD Package Weight

2.8100

AD Package Weight UOM

LB

AD Package Width

6.2000

AD Package Width UOM

IN

Brand

Own Brand

Category

Pressure Switches

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Operating Cycles

Spec 10 Attribute UOM

Cycles

Spec 10 Attribute Value

5000000

Spec 11 Attribute

Pressure Rating

Spec 11 Attribute UOM

PSI

Spec 11 Attribute Value

3 to 150

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-10 to 185

Spec 13 Attribute

Type

Spec 13 Attribute Value

Electro-Mechanical

Spec 2 Attribute

Contact Configuration

Spec 2 Attribute Value

1CO SPDT-DB

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

6 A at 120 V AC/0.27 A at 250 V DC

Spec 4 Attribute

Diaphragm Material

Spec 4 Attribute Value

Nitrile

Spec 5 Attribute

Differential

Spec 5 Attribute UOM

PSI

Spec 5 Attribute Value

6 to 30

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

3.5 in W x 2.63 in D x 5.55 in H

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Nema 4/4X/13

Spec 8 Attribute

Housing Material

Spec 8 Attribute Value

Aluminum

Spec 9 Attribute

Maximum Pressure

Spec 9 Attribute UOM

PSI

Spec 9 Attribute Value

475
