Telemecanique

9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC

Category Float Switches & Accessories

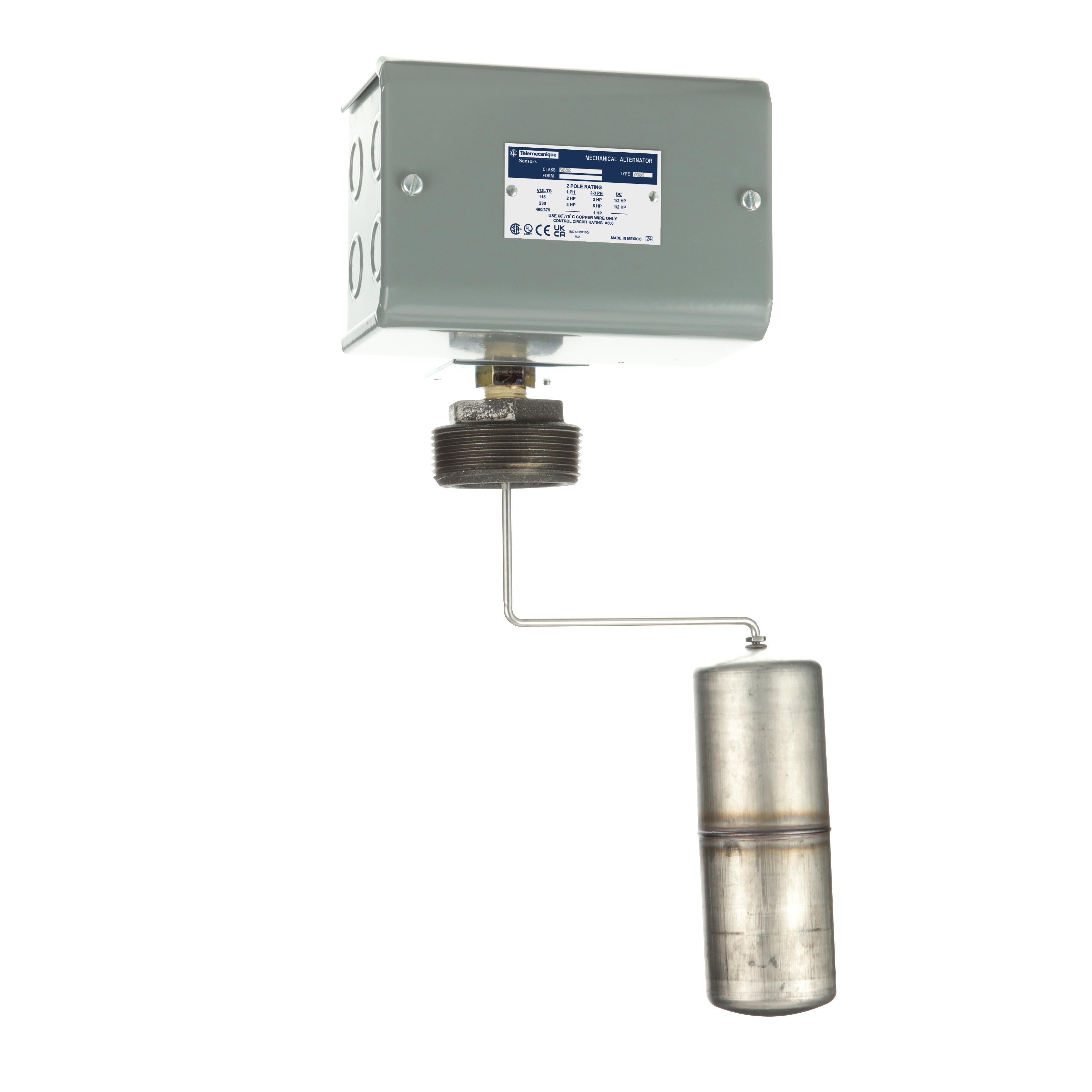

Picture of 9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC Picture of 9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC
Picture of 9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC Picture of 9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC
Telemecanique

9038CG36 - Telemecanique 9038CG36 Type C Mechanical Alternator Float Switch, 575 VAC

Item Code: 1201406
Category Float Switches & Accessories
Manufacturer Ref 9038CG36

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Nema Pressure Switches range, an offer of mechanical alternators. This mechanical alternator has 4 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. 9039 mechanical alternating switches are UL Listed and CSA certified. The closed tank mechanical alternator supports screw-in bush mounting method and 90° (offset) float rod angle for operating in left position. It is furnished with screw clamp terminals for electrical connection and 8 knockouts for 1/2inch or 3/4inch conduit. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. The enclosure is made of painted cold-rolled steel. It weighs 8.67lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is a NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 standards. When liquid level rises to the first level, one pump turns on. Both pumps automatically turn on when a peak condition occurs and the liquid level continues to rise. If form N5 or N25 is present and the water level continues to rise. Mechanical alternator provides a simple, positive means of mechanically alternating two pumps or motors. This alternator is used on devices that are installed in a duplex system with a common tank.

Specifications

Weight

8.67

Height

9.4

Width

11

Length

12.3

AD Application

For mechanically alternating the operation of two pumps or motors and indoor applications

AD Brand (Description)

Telemecanique

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH FLT 575VAC -22 TO 220DEG F CRS

AD Item Features 01

1/2 In, 3/4 In Conduit

AD Item Features 02

90 deg (offset) float rod angle

AD Item Features 03

2-1/2 in Dia x 7 in L float dimension

AD Item Features 04

3.7 kW at 230 VAC 3 ph

AD Item Features 05

4-3/4 to 9-1/2 in adjustable float movement

AD Item Features 06

1 hp power rating

AD Item Features 07

Screw-in bushing mounting

AD Item Features 08

NEMA 1 Enclosure

AD Item Features 09

4-1/2 in sensing range

AD Item Features 10

Screw clamp connection

AD Manufacturer (Description)

YAGEO Corporation

AD Package Height

9.4000

AD Package Height UOM

IN

AD Package Length

12.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1271.8200

AD Package Volume UOM

cu-in

AD Package Weight

8.6700

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

Brand

Own Brand

Category

FLOAT SWITCHES & ACCESSORIES

Spec 1 Attribute

Finish

Spec 1 Attribute Value

Painted

Spec 2 Attribute

Input

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

575

Spec 3 Attribute

Material

Spec 3 Attribute Value

Cold Rolled Steel

Spec 4 Attribute

Series

Spec 4 Attribute Value

9038

Spec 5 Attribute

Temperature Rating

Spec 5 Attribute UOM

deg F

Spec 5 Attribute Value

-22 to 220

Spec 6 Attribute

Type

Spec 6 Attribute Value

Type C Adjustable Closed Tank Mechanical Alternator
