Genesis Cable

TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor

Category Jacketed Thermostat Wiring & Cables

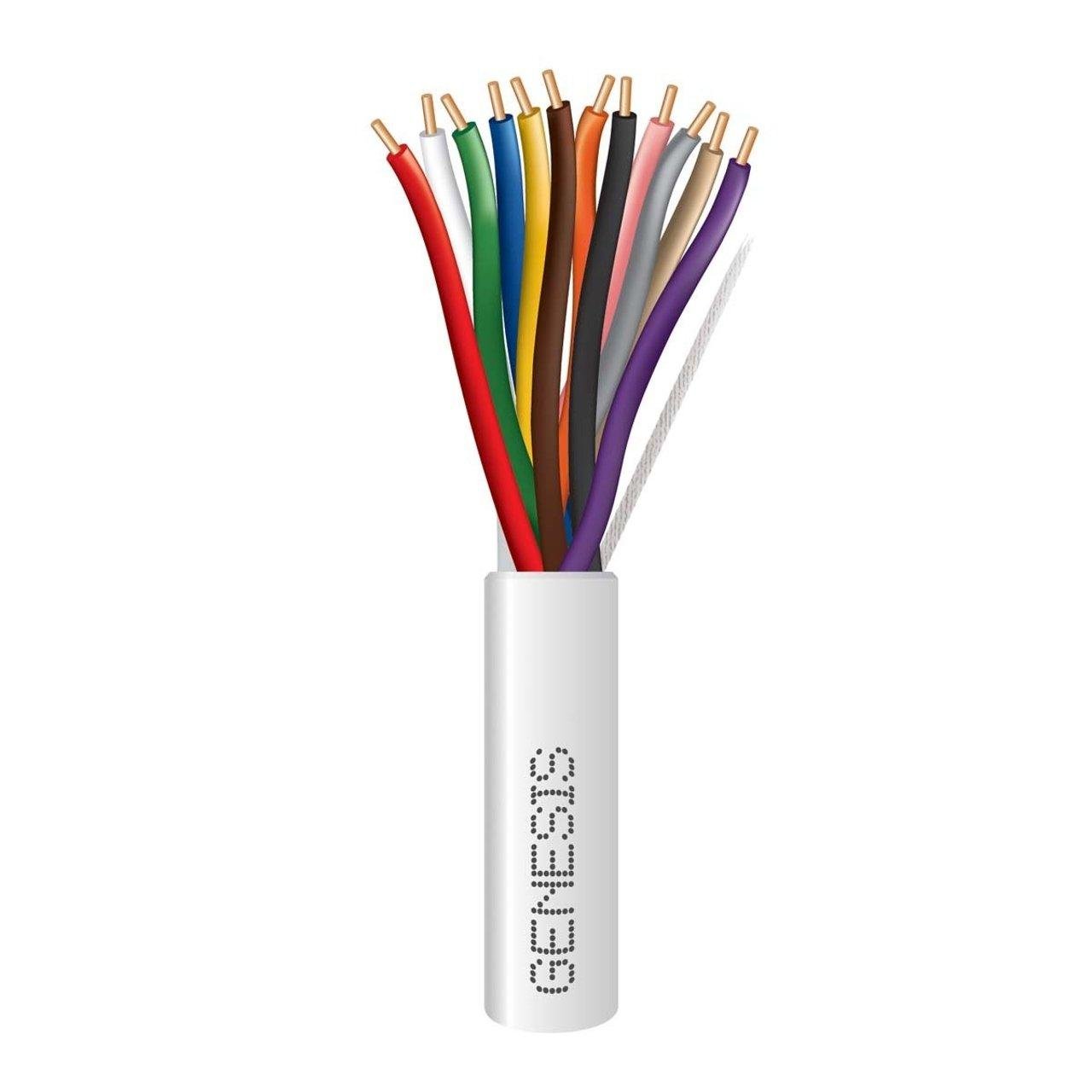

Picture of TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor Picture of TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor
Picture of TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor Picture of TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor
Genesis Cable

TH18UL12 - Thermostat Wire 18 AWG, 12 Conductor

Item Code: 19750
Category Jacketed Thermostat Wiring & Cables
Manufacturer Southwire Company
Manufacturer Ref TH18UL12
Minimum order quantity 250

Document
Call for Availability
Add to Favorites
Compare

Description

Thermostat Wire; Type CL2/CM/CMH/FT1; Voltage Rating 150 V; Conductor Material Bare Copper; Conductor Size 18 AWG; Number of Conductors 12; Jacket Color Brown; Stranding Solid; Jacket Material PVC; Insulation Material Polypropylene; Color Code Red, White, Green, Blue, Yellow, Brown, Orange, Black, Pink, Gray, Tan, Purple; Temperature Rating -20 to 60 Deg C; Length 250 Ft; Outer Diameter 0.245 Inch; Weight 72 Lb/MFt; Package Type Reel; Approval UL, ETL (Canada and US); ROHS Compliant; Applicable Standard NEC 725; Insulation Thickness 0.006 Inch; Insulated Conductor Diameter 0.052 Inch; Jacket Thickness 0.015 Inch; Application Thermostats, Air-Conditioning Controls, Other Low Voltage Remote Control Circuits, Doorbells, Alarm Systems

Specifications

Weight

17.87lb

Height

7mm

Width

11mm

Length

11mm

AD Brand (Description)

Genesis Cable

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

THERMO W REEL 150V 12 18AWG SOLID 250FT

AD Item Features 01

Cable Rating - General Purpose

AD Item Features 02

Cable Listing - CL2, Sunlight Resistant

AD Item Features 03

Conductor Material - Bare Copper

AD Item Features 04

Shielding - No

AD Item Features 05

Rip Cord - Yes

AD Item Features 06

67% Velocity of Propagation

AD Item Features 07

1 Package Quantity

AD Item Features 08

Cable Packaging - Reel

AD Item Features 09

11 in Package Length

AD Item Features 10

11 in Package Width

AD Item Features 11

7 in Package Height

AD Item Features 12

16.1 lb Product Weight

AD Manufacturer (Description)

Southwire Company

AD Package Height

7.0000

AD Package Height UOM

IN

AD Package Length

11.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.8700

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

Brand

Genesis

Category

Jacketed Thermostat Wiring & Cables

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

18

Spec 10 Attribute

Resistance

Spec 10 Attribute Value

6.52 Ohm/1000 ft at 20 deg C

Spec 11 Attribute

Series

Spec 11 Attribute Value

4719

Spec 12 Attribute

Strands

Spec 12 Attribute Value

1

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-20 To 60

Spec 14 Attribute

Type

Spec 14 Attribute Value

Thermostat

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V

Spec 15 Attribute Value

150

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

Polypropylene

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

White

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

PVC

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

250

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

12

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.248

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Reel
