Genesis Cable

TH20UL5 - Thermo Wire 20UL5 Brown

Category Jacketed Thermostat Wiring & Cables

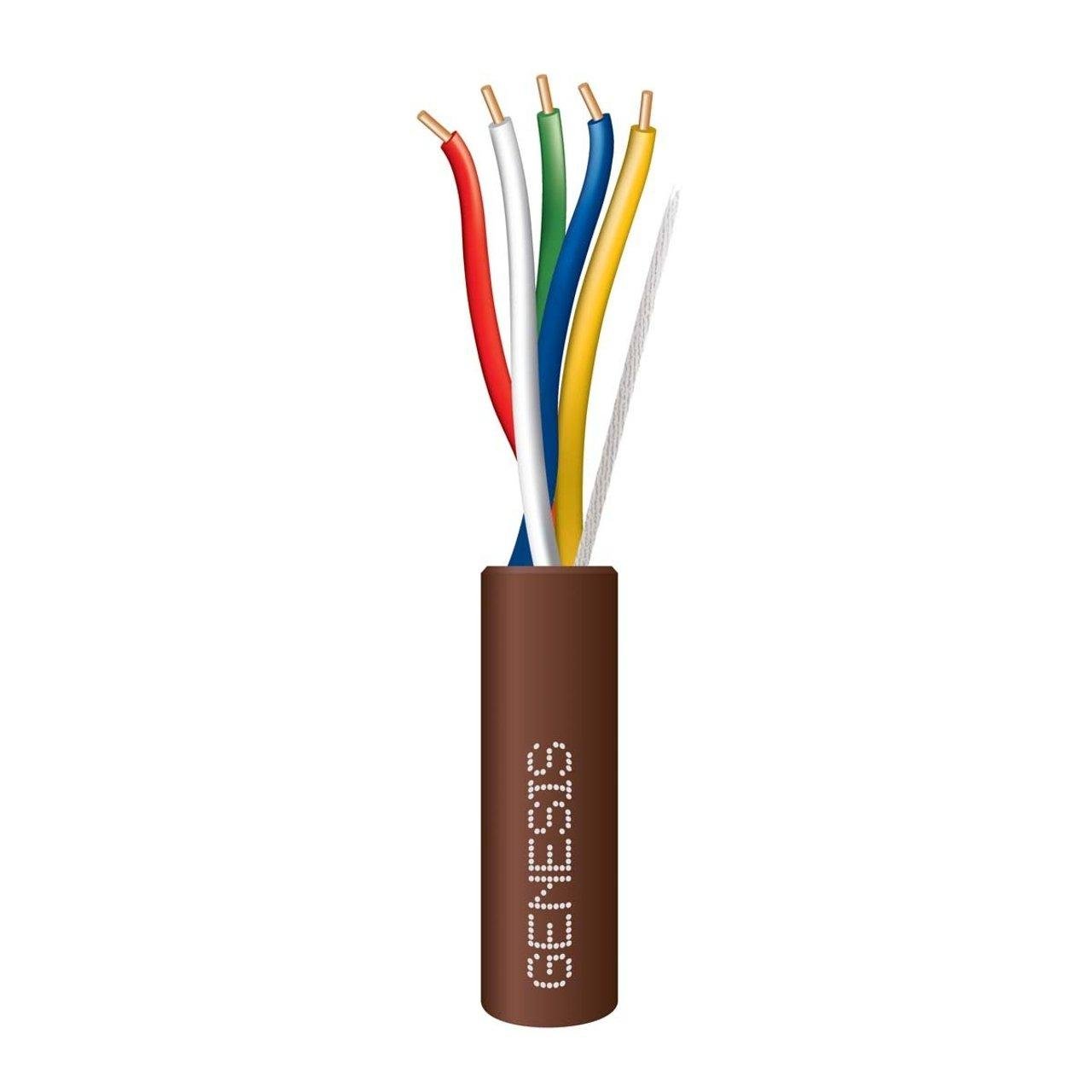

Picture of TH20UL5 - Thermo Wire 20UL5 Brown Picture of TH20UL5 - Thermo Wire 20UL5 Brown
Picture of TH20UL5 - Thermo Wire 20UL5 Brown Picture of TH20UL5 - Thermo Wire 20UL5 Brown
Genesis Cable

TH20UL5 - Thermo Wire 20UL5 Brown

Item Code: 19769
Category Jacketed Thermostat Wiring & Cables
Manufacturer Southwire Company
Manufacturer Ref TH20UL5
Minimum order quantity 250

Document
Call for Availability
Add to Favorites
Compare

Description

Thermostat Wire; Type CL2/CM/CMH/FT1; Voltage Rating 150 V; Conductor Material Bare Copper; Conductor Size 20 AWG; Number of Conductors 5; Jacket Color Brown; Stranding Solid; Jacket Material PVC; Insulation Material Polyethylene; Color Code Red, White, Green, Blue, Yellow; Temperature Rating -20 to 60 Deg C; Length 250 Ft; Outer Diameter 0.147 Inch; Weight 19 Lb/MFt; Package Type Reel; Approval UL, ETL (Canada and US); ROHS Compliant; Applicable Standard NEC 725; Insulation Thickness 0.006 Inch; Insulated Conductor Diameter 0.043 Inch; Jacket Thickness 0.015 Inch; Application Thermostats, Air-Conditioning Controls, Other Low Voltage Remote Control Circuits, Doorbells, Alarm Systems

Specifications

Weight

19.61lb

Height

5mm

Width

13.25mm

Length

13.25mm

AD Brand (Description)

Genesis Cable

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

THERMO W REEL 150V 5 20AWG SOLID 250FT

AD Item Features 01

Cable Rating - General Purpose

AD Item Features 02

Cable Listing - CL2, Sunlight Resistant

AD Item Features 03

Conductor Material - Bare Copper

AD Item Features 04

Shielding - No

AD Item Features 05

Rip Cord - Yes

AD Item Features 06

67% Velocity of Propagation

AD Item Features 07

4 Package Quantity

AD Item Features 08

Cable Packaging - Reel

AD Item Features 09

13.25 in Package Length

AD Item Features 10

13.25 in Package Width

AD Item Features 11

4.25 in Package Height

AD Item Features 12

23 lb Product Weight

AD Manufacturer (Description)

Southwire Company

AD Package Height

5.0000

AD Package Height UOM

IN

AD Package Length

13.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

19.6100

AD Package Weight UOM

LB

AD Package Width

13.2500

AD Package Width UOM

IN

Brand

Genesis

Category

Jacketed Thermostat Wiring & Cables

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

20

Spec 10 Attribute

Resistance

Spec 10 Attribute Value

11.1 Ohm/1000 ft at 20 deg C

Spec 11 Attribute

Series

Spec 11 Attribute Value

4704

Spec 12 Attribute

Strands

Spec 12 Attribute Value

1

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

-20 To 60

Spec 14 Attribute

Type

Spec 14 Attribute Value

Thermostat

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V

Spec 15 Attribute Value

150

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

Polypropylene

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

Brown

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

PVC

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

250

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

5

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.148

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Reel
