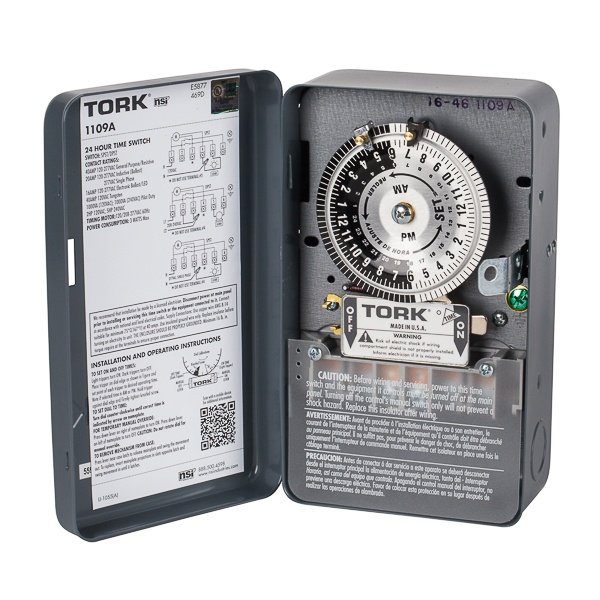

1109A - 24Hr Time Switch 40A 120/208-277V Indoor
Description
Specifications
2.42lb
5.1mm
8.7mm
Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans, Automatic ON/OFF Control and Indoor Applications
NSI
USA
MX
(1) Pair of Trippers
SWITCH TIME MECH 20MIN ON/75MIN OFF
Easy Scheduling, TORK 24 hr time switches allow you to set automatic schedules for appliances that need to be run at the same time every day
Repairable Units, Mechanical time switches can be repaired when components reach the end of their service life - saving you money on replacement units and producing less overall waste
Built to Last, A metal NEMA TYPE 1 lockable enclosure which protects inner gears and wiring plus an operating range of -40 to 165 deg F (-40 to 74 C) makes this timer reliable under pressure
NSi Industries
IN
8.7000
IN
1
2.4200
LB
5.1000
IN
Tork
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
40
Voltage Rating
V AC
120 To 277
Contact Form
DPST
Dimensions
7-15/16 in H x 4-11/16 in W x 2-15/16 in D
Enclosure Type
NEMA 1
HORSEPOWER
HP
5
Operation Mode
HR
24
Series
1100
Temperature Rating
deg F
-40 To 165
Time Setting
20 min ON/75 min OFF
