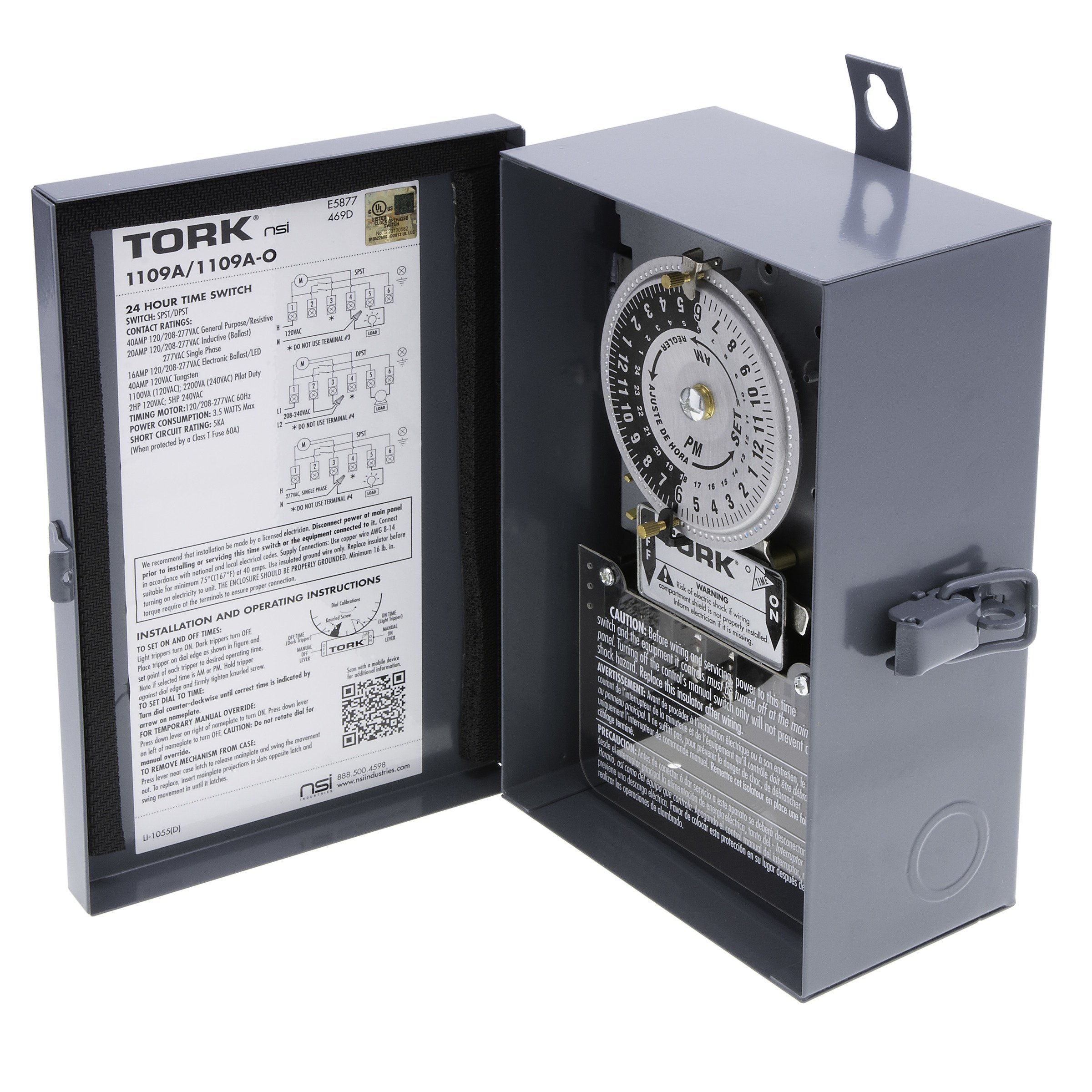

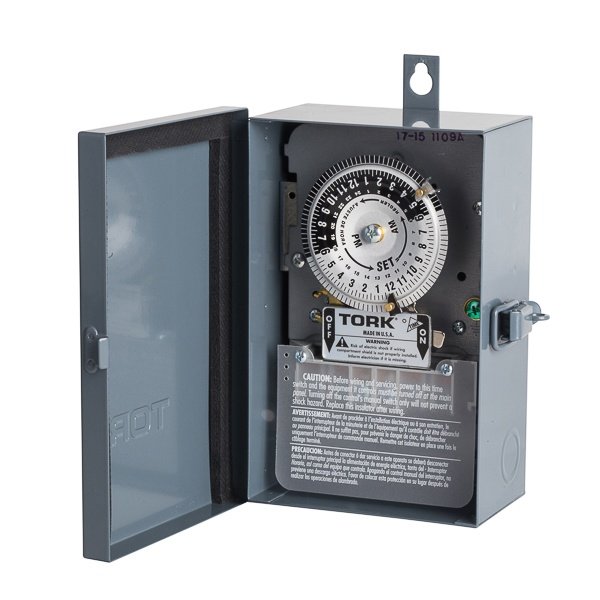

1109A-O - 24Hr Time Switch 40A 120/208-277V Outdoor
Description
Specifications
3.48lb
6.45mm
9.6mm
14080600
Indoor/Outdoor, Lighting, Pumps, Signs, Air Conditioning, Water Heater and Fan Control Applications
NSI
USA
CN
Technical Bulletin
00786261101068
14080600
TIMER MECH 24HR 120/208 TO 277VAC DPST 2
Easy Scheduling, TORK 24 hr time switches allow you to set automatic schedules for appliances that need to be run at the same time every day
Repairable Units, Mechanical time switches can be repaired when components reach the end of their service life - saving you money on replacement units and producing less overall waste
Built to Last, A metal NEMA TYPE 3 lockable enclosure which protects inner gears plus an operating range of -40 to 165 deg F (-40 to 74 C) makes this timer reliable when used outdoors
Flexible Automations, Mechanical time switches are compatible with up to 12 pairs of trippers for automating an advanced 24 hr ON/OFF schedule
Tork 1109A-O 1-Phase Mechanical Timer, 24 hr Setting, 120/208 to 277 V AC, 2 hp, 5 hp, DPST Contact, 2 Poles ; NSi Industries ; NSI ; 1109AO ; 786261101068 ; Mechanical Timers
NSi Industries
IN
9.6000
IN
1
3.4800
LB
6.4500
IN
1109A-O ; 1109AO ; 14080600 ; 786261101068 ; 78626110106 ; 00786261101068
Tork
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
40
Time Setting
HR
24
Type
1-Phase
Voltage Rating
V AC
120/208 to 277
Contact Form
DPST
Dimensions
4.12 in L x 5.25 in W x 8.25 in H
Enclosure Type
NEMA 3
HORSEPOWER
2 hp, 5 hp
Mounting Type
Threaded
Number Of Poles
2
Operation Mode
On/Off
Temperature Rating
deg F
-40 To 165
