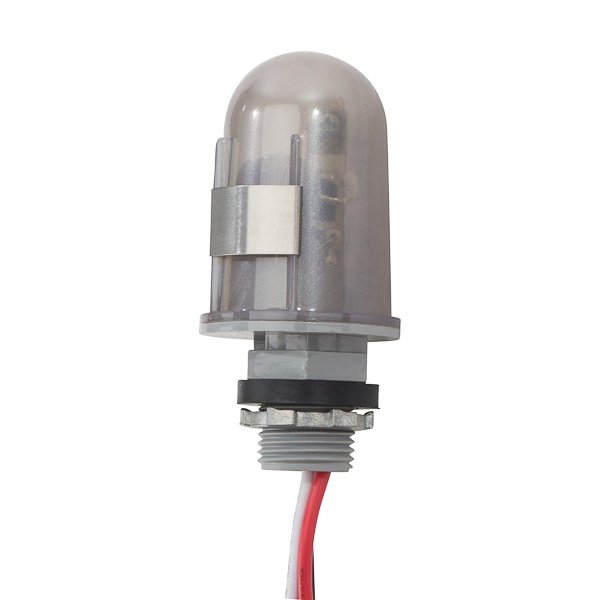

2000-2 - Stem 208-277V 4620W 2770VA 1385VA LED
Description
Specifications
0.19lb
1.67mm
1.67mm
Flood and Patio Lamp and Decorative Lighting
NSI
USA
CN
PHOTOCONTROL POSN FXD PHOTOCONTROL SPST
All Lexan® enclosures are impact and vandal resistant
Translucent Lexan® dome prolongs cell life by further screening out ultraviolet rays
Dome and base are ultrasonically welded for maximum strength
Delay of up to 2 min to prevent false switching due to light from passing vehicles, lightning
Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
Photocell responds to the light spectrum near to that of a human eye
Under 1 W power consumption
1/2 in conduit mounting
NSi Industries
IN
1.6700
IN
1
0.1900
LB
1.6700
IN
Tork
LIGHTING PHOTOCELLS
Ballast Load
VA
2080 to 2770
Series
2000
Timing Range
MIN
2
Tungsten Rating
W
3470 to 4620
Type
Stem
Voltage Rating
V AC
208 to 277
Wire Size
AWG
16
Color
Gray
Contact Form
SPST
Environmental Conditions
-40 to 140 deg F Operating Temperature
Frequency Rating
HZ
50/60
Material
Lexan®
Mounting Type
Surface
Sensitivity
1 to 5 FC On/3 to 15 FC Off
Sensor Type
Cadmium Sulfide Cell
