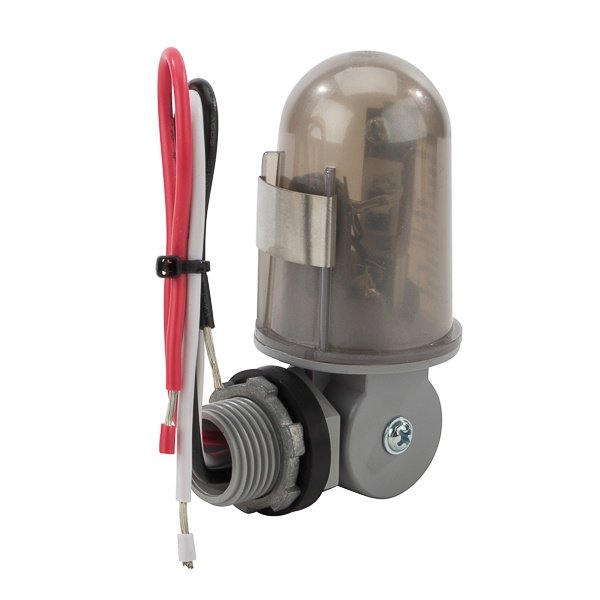

2001 - Stem & Swivel 120V 2000W 1800VA 600VA LED
Description
Specifications
0.22lb
1.67mm
1.67mm
Flood Lamp, Patio Lamp, Decorative Lighting, Parking Lot Lighting, Building Lighting and Outdoor Signs
NSI
USA
CN
1/2 In Conduit
PHOTOCONTROL 120VAC 2000W 1800VA LEXAN
Conformal coated cadmium sulphide photocell resists effects of moisture and airborne contaminants
Photocell responds to the light spectrum near to that of a human eye
Delay of up to two minutes to prevent false switching due to light from passing vehicles, lightning and more
Works with screw base CFL and LED lamp
On and Off time delay
Cadmium sulphide, epoxy conformal coated 1/2 in diameter cell
Remain closed between dusk and dawn (the unit fails in the on position) contacts
Three color coded, minimum 6 in wire leads, 16 AWG, rated for 105 deg C lead wires
On fail mode
Epoxy conformal coated
NSi Industries
IN
1.6700
IN
1
0.2200
LB
1.6700
IN
Tork
LIGHTING PHOTOCELLS
Ballast Load
VA
1800
Timing Range
MIN
2
Tungsten Rating
W
2000
Voltage Rating
V AC
120
Wire Size
AWG
16
Contact Form
SPST
Environmental Conditions
-40 to 140 deg F Operating Temperature
Frequency Rating
HZ
50/60
Material
Lexan
Mounting Type
Box/Fixture
Sensitivity
1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio
Sensor Type
Cadmium Sulfide Cell
Series
2000
