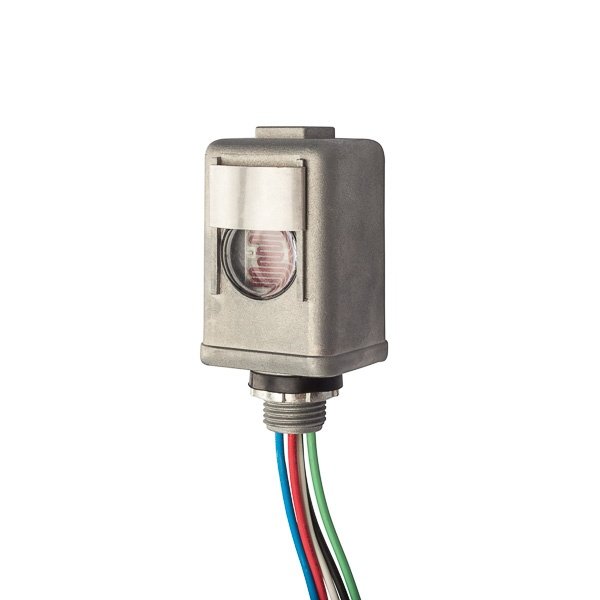

2129A - AlumStem 120/208-277V 2000W 1800VA
Description
Specifications
0.72lb
2.3mm
5.4mm
Parking Lots, Building Perimeter Lighting and Outdoor Signage Applications
NSI
USA
CN
190 J Metal Oxide Varistor
PHOTOCONTROL 120/208 TO 277VAC SURF CFL
Weather Protection - 2100 series photocontols come with a heavy-duty gasketed die cast zinc housing and base to protect sensor and wiring from extreme weather
Built for Convenience, Key features include a time delay which prevents stray lights from turning the control OFF and 190 JMOV surge protection
Broad Compatibility, Compatible with LED, CFL, Induction, HPS and HID lighting fixtures in the 120/208-277V, 2000/3470-4620W range
High-Quality Construction, Built to resist weather and moisture, this photocontrol has an operating temperature range of -40 to 149 deg F
NSi Industries
IN
5.4000
IN
1
0.7200
LB
2.3000
IN
Tork
Lighting Controls
Ballast Load
VA
1800/2080 to 2770
Series
2100 Series
Timing Range
MIN
2
Tungsten Rating
W
2000/3470 to 4620
Type
Stem
Voltage Rating
V AC
120/208 to 277
Wire Size
IN
6
Dimensions
1.709 in L x 1.875 in W x 3.836 in H
Environmental Conditions
deg F
-40 To 140
Fixture Type
CFL
Frequency Rating
HZ
50/60
Material
Die Cast Zinc
Mounting Type
Box/Fixture
Sensitivity
1 to 5 FC Turn ON, 3 to 15 FC Turn OFF
Sensor Type
Cadmium Sulfide Cell
