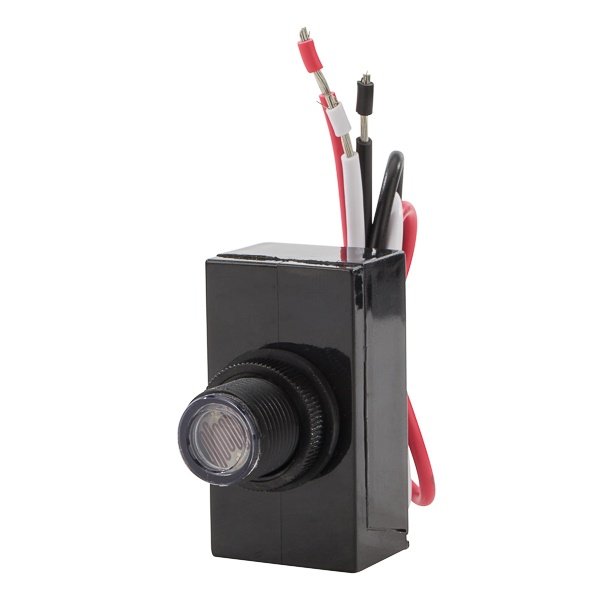

3000 - Button 120V 2000W 1800VA 600VA LED
Description
Specifications
0.13lb
2.05mm
0.83mm
Pole Lanterns, Lawn Lighting and Walkways
NSI
USA
CN
3/4 in Flush Mount with Gasket and Nut
PHOTOCONTROL 120VAC 2000W 1200VA FL 2MIN
Accurate Light Sensing, Conformal coated cadmium sulphide photocell resists the effects of moisture and airborne contaminants while responding to a light spectrum near to that of a human eye
Energy Savings, In addition to the energy savings of lighting automations, this photocell works with screw base CFLs with power consumption averages under 1 W
Reliable Operation, A two-minute OFF delay prevents false switching due to light from passing vehicles, lightning and other quick, temporary flashes
Easy Mounting, The TORK 3000 flush mounts through a .6875 in hole in post lantern or lighting fixture using a 3/4 in long, 3/8 in NPT threaded stem
NSi Industries
IN
0.8300
IN
1
0.1300
LB
2.0500
IN
Tork
LIGHTING PHOTOCELLS
Ballast Load
VA
1200
Series
3000
Timing Range
MIN
2
Tungsten Rating
W
2000
Type
Button
Voltage Rating
V AC
120
Wire Size
AWG
16
Contact Form
1NC-SPST
Dimensions
2 in H x 1 in W x 1-1/2 in D
Environmental Conditions
-40 to 140 deg F Operating Temperature
Frequency Rating
HZ
50/60
Material
Lexan
Mounting Type
Box/Fixture
Sensitivity
1 to 5 FC (ON)/3 to 15 FC (OFF) Ratio
Sensor Type
Cadmium Sulfide Cell
