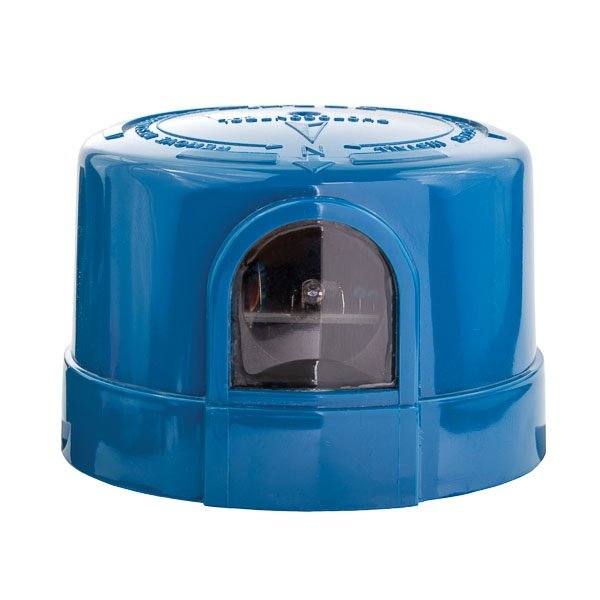

5237-UL - Elec Turn Lock 105-305V 1KW 1800VA 1KVA LED
Description
Specifications
0.34lb
3.25mm
3.2mm
Local Utility Street, Highway Lighting Control Applications
NSI
USA
CN
PHOTOCONTROL 105 TO 305VAC 1000W 1800VA
Automate Roadway Lighting, Use turn-lock photocontrol light sensors on streets, highways and other luminaries equipped with locking-type receptacles where the most stringent surge protection is needed
Accurate Light Sensing, This photocontrol's superior light sensing technology is driven by a molded, sealed, IR-filtered non-drifting silicone sensor designed to duplicate a human eye response
Safety Requirements, The 5237-UL has 360 JMOV protection
Built for Convenience, Key features include a time delay which prevents stray lights from turning the control OFF and a UV stabilized polycarbonate housing to protect against extreme weather elements
NSi Industries
IN
3.2000
IN
1
0.3400
LB
3.2500
IN
Tork
LIGHTING OCCUPANCY SENSORS
ARRESTER
J
360
Sensitivity
1.5 FC (ON), 1.5:1 FC Average (OFF) to (ON) Ratio
Sensor Type
Molded Sealed IR
Timing Range
S
3 to 5
Tungsten Rating
W
1000
Type
Electronic Instant Response Utility Grade
Voltage Rating
V AC
105 to 305
Ballast Load
VA
1800
Color
Blue
Dimensions
2.187 in H x 3.187 in W
Environmental Conditions
-40 to 158 deg F Operating Temperature
Frequency Rating
HZ
50/60
Material
Polycarbonate
Mounting Type
Fixture
Operating Cycles
Cycles
6000
