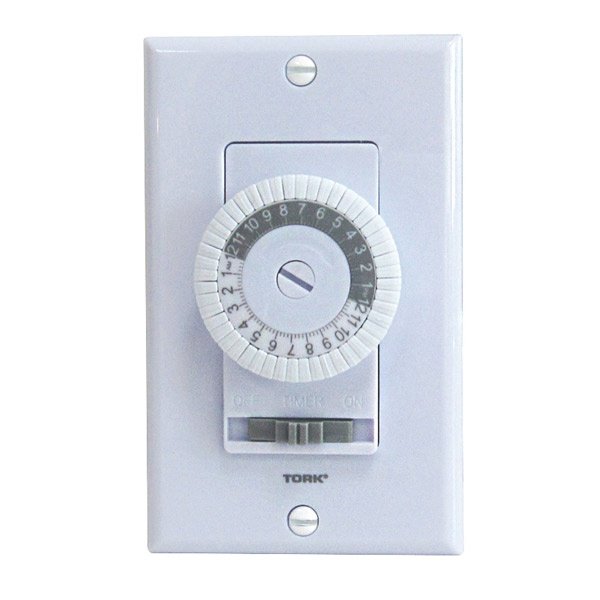

701B - 24 Hour Wall Switch Timer 20A 125V White
Description
Specifications
0.37lb
5.25mm
8mm
Porch, Patio, Pool, Interior lighting, Entryway and Outdoor Security Lighting Applications
NSI
USA
CN
TIMER MECH 24HR 125VAC 1HP SPST 1 ON/OFF
Simple to Program, To program the timer, pull all tabs up to define the OFF state and then push the tabs down to define the ON states in as little as 30 min increments
Convenient Scheduling, This in-wall timer has 48 captive trippers, allowing for the convenience of advanced 24 hr power automations that repeat each day
Vacation Mode, Switching to either of the manual ON/OFF modes allows you to override the regularly scheduled power automations without changing the timer's settings
Easy and Flexible Installation, This timer comes fitted with an attractive white wall plate
NSi Industries
IN
8.0000
IN
1
0.3700
LB
5.2500
IN
Tork
MECHANICAL TIME SWITCHES
Amperage Rating
A
20
Type
1-Phase
Voltage Rating
V AC
125
Contact Form
SPST
Dimensions
5 in H x 3 in W
HORSEPOWER
HP
1
Mounting Type
Wall
Number Of Poles
1
Operation Mode
On/Off
Temperature Rating
deg F
32 To 104
Time Setting
HR
24
