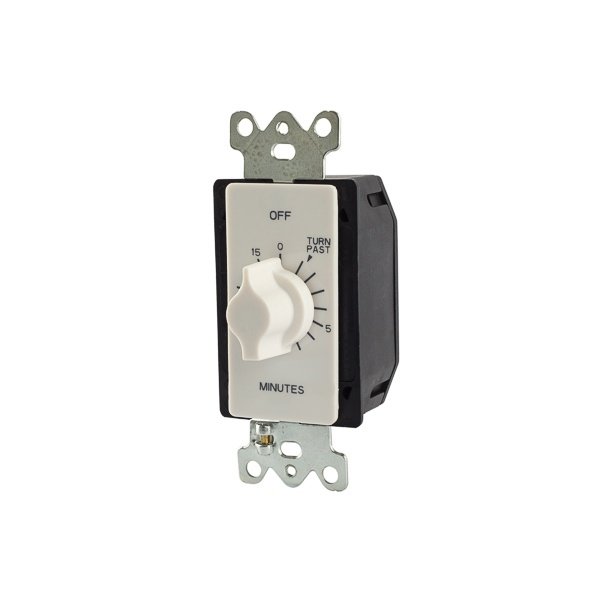

A515MW - 15 Min Timer 125-277V SPDT White
Description
Specifications
0.32lb
1.75mm
1.41mm
10871238
Whole House Fans, Indoor, Outdoor Lighting, Bathroom Fans and Self Storage Control
NSI
USA
CN
Catalog
Specification Sheet
00786261151131
10871238
TIMER WND SPR 15MIN 125/250/277VAC SPDT
Twist knob for time on setting, Time on lengths from 15 min to 12 hr vary by model
No neutral required, great for retrofit use as single or in multi-gang box with no de-rating
Interval timer
Single Phase
Contact initiation
Single gang wall plate enclosure
7 A at 125 VAC (tungsten), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (resistive), 20 A at 120 VAC/10 A at 250 VAC/10 A at 277 VAC (inductive)
1 hp at 125 VAC/2 hp at 250 VAC
50/60 Hz frequency
No hold in wall time switch
White Color
Without wallplate
Tork A515MW Auto Off Interval Mechanical Spring Wound Timer, 15 min Setting, 125/250/277 V AC, 1 hp, 2 hp, 1 Form C SPDT Contact, 1 Pole ; NSi Industries ; NSI ; A515MW ; 786261151131 ; Spring Wound Timers
NSi Industries
IN
1.4100
IN
1
0.3200
LB
1.7500
IN
A515MW ; 10871238 ; 786261151131 ; 78626115113 ; 00786261151131
Tork
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
20/10
Time Setting
MIN
15
Type
Auto Off Interval Mechanical
Voltage Rating
V AC
125/250/277
Contact Form
1 Form C SPDT
Dimensions
5 in H x 3 in W
HORSEPOWER
HP
1 hp, 2 hp
Mounting Type
Wall
Number Of Poles
1
Operation Mode
MIN
15
Series
A Series
Temperature Rating
deg F
32 To 122
