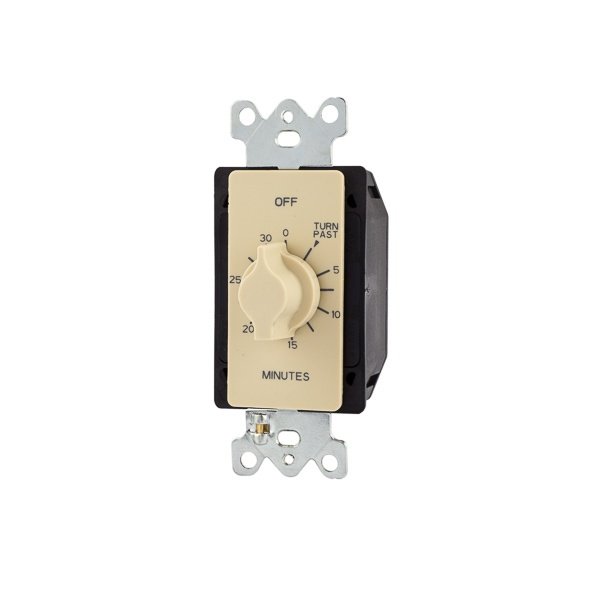

A530M - 30 Min Timer 125-277V SPDT Ivory
Description
Specifications
0.32lb
1.75mm
1.41mm
Whole House Fans, Indoor, Outdoor Lighting, Bathroom Fans and Self Storage Control
NSI
USA
CN
TIMER WND SPR 30MIN 125/250/277VAC SPDT
Automatic Shutoff, Spring-wound twist timers are perfect for automatically turning off a variety of equipment such as whole house fans, lighting, air compressors, water heaters or motors
Easy In-Box Mounting, Housing fits inside a standard electrical box for in-wall mounting, with an ivory colored face and a simple setup that requires no adjustments
Consistent and Durable, This reliable twist timer can handle loads up to 20 Aresistive, 7 Atungsten lighting or 1 hp motor loads at 125VAC and keeps working for years
The A530M time switch delivers dependable performance and is ideally suited for use indoors controlling lighting or appliances
NSi Industries
IN
1.4100
IN
1
0.3200
LB
1.7500
IN
Tork
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
20/10
Time Setting
MIN
30
Type
Auto Off Interval Mechanical
Voltage Rating
V AC
125/250/277
Contact Form
1 Form C SPDT
Dimensions
5 in H x 3 in W
HORSEPOWER
HP
1 hp, 2 hp
Mounting Type
Wall
Number Of Poles
1
Operation Mode
MIN
30
Series
A Series
Temperature Rating
deg F
32 To 122
