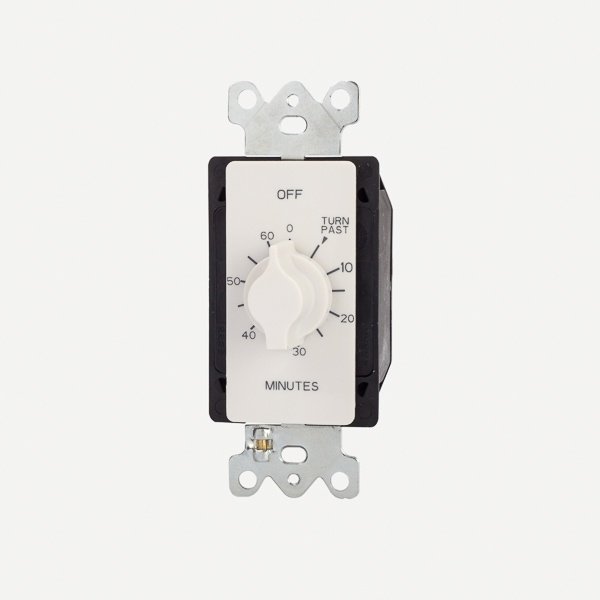

A560MW - 60 Min Timer 125-277V SPDT White
Description
Specifications
0.32lb
2.4mm
5.65mm
10871240
Whole House Fans, Indoor, Outdoor Lighting, Bathroom Fans and Self Storage Control
NSI
Grainger - 52ZC33
USA
CN
Specification Sheet
Catalog
00786261151155
10871240
TIMER WND SPR 60MIN 125/250/277VAC SPDT
Automatic Shutoff, Spring-wound twist timers are perfect for automatically turning off a variety of equipment such as whole house fans, lighting, air compressors, water heaters or motors
Easy In-Box Mounting, Housing fits inside a standard electrical box for in-wall mounting, with a white colored face and a simple setup that requires no adjustments
Consistent and Durable, This reliable twist timer can handle loads up to 20 Aresistive, 7 Atungsten lighting or 1 hp motor loads at 125VAC and keeps working for years
Quality Assurance, The A560MW time switch delivers dependable performance and is ideally suited for use indoors controlling lighting or appliances
Tork A560MW Auto Off Interval Mechanical Spring Wound Timer, 60 min Setting, 125/250/277 V AC, 1 hp, 2 hp, 1 Form C SPDT Contact, 1 Pole ; NSi Industries ; NSI ; A560MW ; 786261151155 ; Spring Wound Timers
NSi Industries
IN
5.6500
IN
1
0.3200
LB
2.4000
IN
A560MW ; 10871240 ; 786261151155 ; 78626115115 ; 00786261151155
Tork
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
20/10
Time Setting
MIN
60
Type
Auto Off Interval Mechanical
Voltage Rating
V AC
125/250/277
Contact Form
1 Form C SPDT
Dimensions
5 in H x 3 in W
HORSEPOWER
HP
1 hp, 2 hp
Mounting Type
Wall
Number Of Poles
1
Operation Mode
MIN
60
Series
A Series
Temperature Rating
deg F
32 To 122
