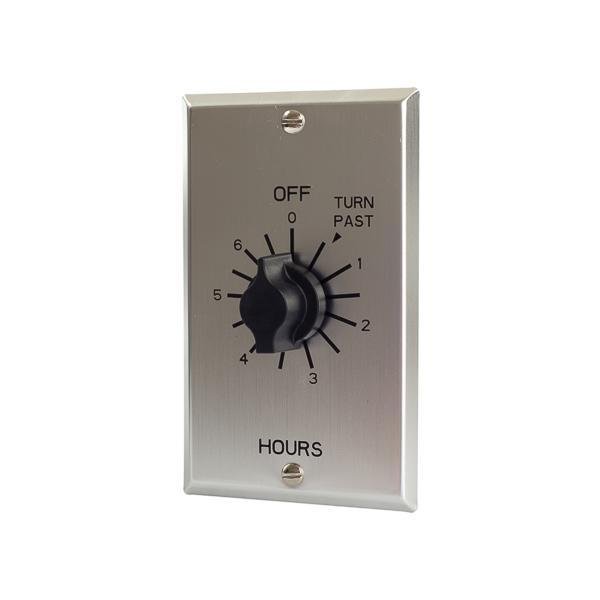

C506H - 6 Hour Timer 125-277V SPDT Metal Plate
Description
Specifications
0.38lb
1.73mm
1.23mm
Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pump Control Applications
NSI
USA
CN
TIMER MECH 6HR 125/250/277VAC 1HP 2HP
Variable timing twist knob for time ON setting, time ON lengths from 15 min to 12 hr vary by model
Easy set, no adjustments, just wire and go
Easy wiring no neutral required, great for retrofit
Real metal wall plate with screw mounting, to add extra security for commercial applications
Without hold
1 hp at 125 VAC, 2 hp at 250 VAC power rating
20 A at 125 VAC, 10 A at 250 VAC, 10 A at 277 VAC amperage rating
NSi Industries
IN
1.2300
IN
1
0.3800
LB
1.7300
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
20-Oct
Time Setting
HR
6
Type
1-Phase Commercial Grade Spring Wound
Voltage Rating
V AC
125/250/277
Contact Form
1 Form C SPDT
Dimensions
5 in H x 3 in W
HORSEPOWER
1 hp, 2 hp
Mounting Type
Wall
Number Of Poles
1
Operation Mode
Auto On/Off
Series
C Series
Temperature Rating
deg F
32 To 122
