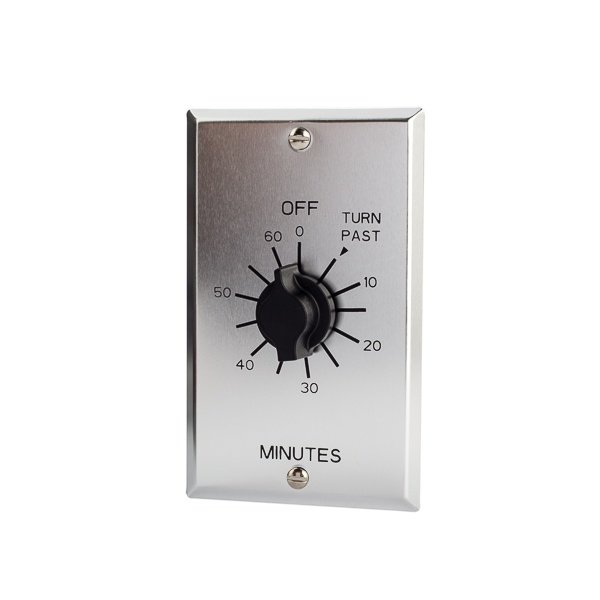

C560M - 60 Min Timer 125-277V SPDT Metal Plate
Description
Specifications
0.38lb
1.73mm
1.23mm
Ventilating Fans, HVAC, Whirlpools, Self Storage, Motors and Pump Control
NSI
USA
CN
TIMER WND SPR 60MIN 125/250/277VAC SPDT
Automatic Shutoff, Spring-wound twist timers are perfect for automatically turning off a variety of equipment such as ventilation fans, lighting, air compressors, HVAC, motors or pumps
Variable Time Setting, Simply twist the timer knob to set an auto-off countdown between 5 and 60 min to match your power needs
Easy In-Box Mounting, Housing fits inside a standard electrical box for in-wall mounting, with a professional metal faceplate and a simple setup that requires no adjustments
Consistent and Durable, This reliable twist timer can handle 20 Aresistive loads or 2 hp motor loads at 125VAC and keeps working for years
The C560M time switch delivers dependable performance and is ideally suited for use indoors controlling lighting or appliances
NSi Industries
IN
1.2300
IN
1
0.3800
LB
1.7300
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
20/10
Time Setting
MIN
60
Type
Auto Off Interval Mechanical
Voltage Rating
V AC
125/250/277
Contact Form
1 Form C SPDT
Dimensions
5 in H x 3 in W
HORSEPOWER
HP
1 hp, 2 hp
Mounting Type
Wall
Number Of Poles
1
Operation Mode
MIN
60
Series
C Series
Temperature Rating
deg F
32 To 122
