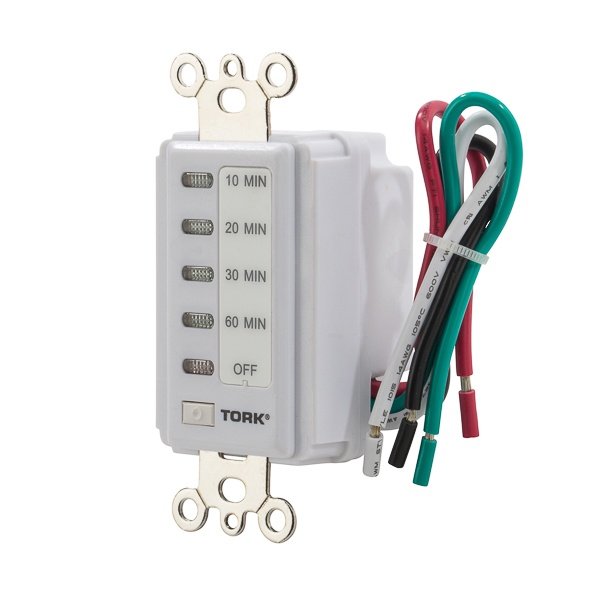

D1060MW - 10/20/30/60 Min Wall Sw Timer 120V White
Item Code: 875663
Category
Electronic Time Switches
Manufacturer NSI INDUSTRIES
Manufacturer Ref D1060MW
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.34lb
Width
1.71mm
Length
1.73mm
AD All Features
Button push changes time on setting
AD Application
Whole House Fans, Indoor, Outdoor Lighting, Bathroom Fans and Self Storage Control
AD Brand (Description)
NSI
AD Country
USA
AD Country Of Origin
CN
AD Invoice Description
SWITCH TIME ELEK 10 TO 60MIN 120VAC SPST
AD Item Features 01
Button push changes time on setting
AD Item Features 02
Indicator moves to new range as timer counts down
AD Item Features 03
Time on interval preset tamper resistance
AD Item Features 04
No adjustments, just wire and go
AD Item Features 05
14 AWG terminal
AD Item Features 06
White Color
AD Manufacturer (Description)
NSi Industries
AD Package Height UOM
IN
AD Package Length
1.7300
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.3400
AD Package Weight UOM
LB
AD Package Width
1.7100
AD Package Width UOM
IN
Brand
Tork
Category
ELECTRONIC TIME SWITCHES
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
15
Spec 10 Attribute
Series
Spec 10 Attribute Value
D Series
Spec 11 Attribute
Temperature Rating
Spec 11 Attribute UOM
deg F
Spec 11 Attribute Value
32 To 122
Spec 12 Attribute
Time Setting
Spec 12 Attribute UOM
MIN
Spec 12 Attribute Value
10 to 60
Spec 13 Attribute
Type
Spec 13 Attribute Value
Auto Off
Spec 14 Attribute
Voltage Rating
Spec 14 Attribute UOM
V AC
Spec 14 Attribute Value
120
Spec 2 Attribute
Contact Form
Spec 2 Attribute Value
SPST
Spec 3 Attribute
Dimensions
Spec 3 Attribute Value
5 in H x 3 in W
Spec 4 Attribute
Display Type
Spec 4 Attribute Value
Led
Spec 5 Attribute
Enclosure Type
Spec 5 Attribute Value
NEMA 3R
Spec 6 Attribute
HORSEPOWER
Spec 6 Attribute UOM
HP
Spec 6 Attribute Value
4-Jan
Spec 7 Attribute
Mounting Type
Spec 7 Attribute Value
Wall/Threaded
Spec 8 Attribute
Number Of Poles
Spec 8 Attribute Value
1
Spec 9 Attribute
Operation Mode
Spec 9 Attribute UOM
MIN
Spec 9 Attribute Value
10/20/30/60
