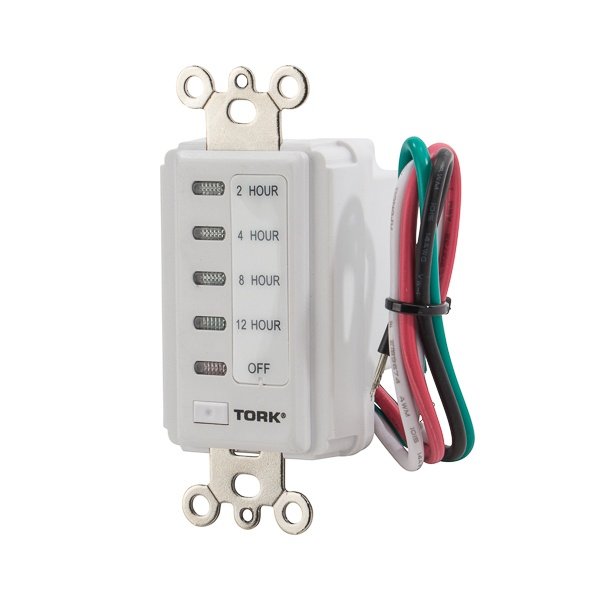

D212HW - 2/4/8/12 Hour Wall Sw Timer 120V White
Description
Specifications
0.36lb
4.65mm
7mm
Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Self Storage Control Applications
NSI
USA
CN
TIMER ELEK 2/4/8/12HR 120VAC 1/4HP SPST
Easy Assembly, The TORK D212HW fits into a standard electrical box for quick and easy in-wall mounting and has a wire size of 14 AWG wiring
No Programming Needed, Setting the timer is easy - just use the push-button to select a countdown time of either 2, 4, 8 or 12 hr
LED Display, The LED display indicates which countdown time interval has been selected, and then moves to each lower interval range as the timer nears the finish of its cycle
Built to Last, This countdown timer is suitable for indoor use and features an attractive white faceplate for blending seamlessly into a home's interior
NSi Industries
IN
7.0000
IN
1
0.3600
LB
4.6500
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
15
Temperature Rating
deg F
32 To 122
Time Setting
HR
2/4/8/12
Type
1-Phase
Voltage Rating
V AC
120
Contact Form
SPST
Dimensions
5 in H x 3 in W
Display Type
Led
HORSEPOWER
HP
4-Jan
Mounting Type
Wall/Threaded
Number Of Poles
1
Operation Mode
Auto On/Off
Series
D Series
