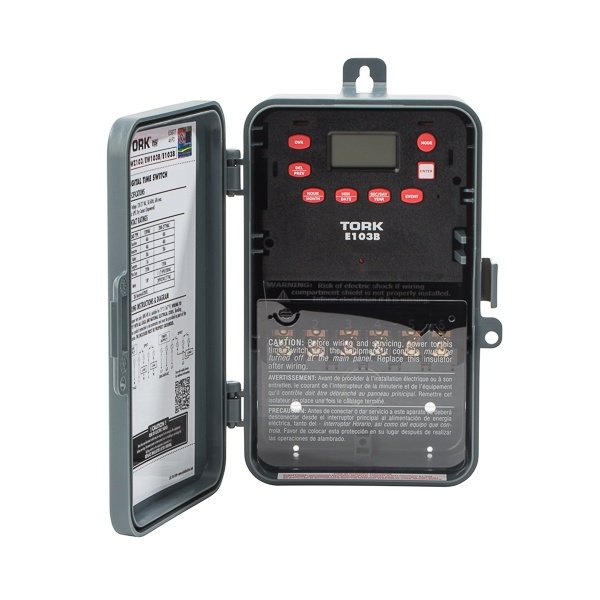

E103B - 24 Hour Digital 1CH 40A 120-277V DPST
Description
Specifications
1.53lb
5.06mm
3.06mm
Sign, Air Conditioning, Lighting, Sump Pumps, Ventilating Fan Control
NSI
USA
US
SWITCH TIME 1MIN TO 24HR 120 TO 277VAC
20 On and Off set points repeat each day, minimum setting 1 min
Automatic adjustment (can be omitted)
Automatic leap year compensation
Until the next regularly scheduled On or Off, automatic operation then resume
AM/PM clock format
Super capacitor provides 4 days of real time backup
18 to 8 AWG terminal range
6 VA maximum power consumption
Plastic indoor/outdoor enclosure
NSi Industries
IN
3.0600
IN
1
1.5300
LB
5.0600
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
30
Operation Mode
HR
24
Series
E Series
Temperature Rating
deg F
-40 To 149
Time Setting
1 min to 24 hr
Voltage Rating
V AC
120 To 277
Contact Form
DPST
Dimensions
5.062 in L x 3.062 in W x 8.312 in H
Display Type
Digital LED
Enclosure Type
NEMA 3R
HORSEPOWER
1 hp, 2 hp
Mounting Type
Threaded
Number of Channels
1
Number Of Poles
2
