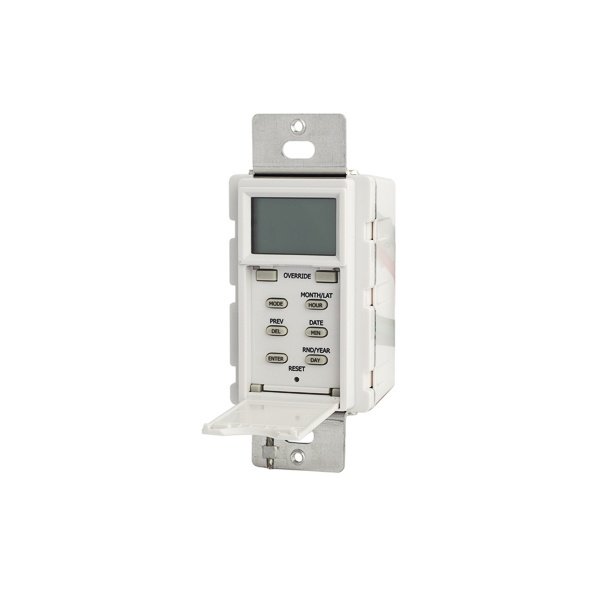

SS703Z - Astro Wall Sw Timer 120/277V LED White
Description
Specifications
0.34lb
2.35mm
6.2mm
Residential Interior Lighting, Small Fans and Motors and Appliances
NSI
USA
CN
1-gang wallplate
SWITCH TIME 7DAYS 120VAC 15A 0.5HP 1 1/2
Full Digital Control, The SS703Z provides complete control with 10 ON/OFF pairs for each day of the week and the option for 11 different day groups for quick programming
Astronomic Timer, Sunset and sunrise times are adjustable from 10 - 60 deg Northern or Southern latitudes
Additionally, timer can be individually offset +/- 1-240 for earlier or later operation
Save Energy, Saves trouble, energy and money by automating your home or business, while also improving security by giving a lived-in look
Flexible Use, The SS703Z automatically adjusts for daylight savings (optional) and leap years, while also offering a manual override, fully manual mode and vacation mode for ultimate flexibility
Easy to Install, This in-wall timer does not require a neutral wire and can be used as a 3-way switch
NSi Industries
IN
6.2000
IN
1
0.3400
LB
2.3500
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
15
Operation Mode
Days
7
Series
SS703Z
Temperature Rating
deg F
32 To 104
Time Setting
1 min to 7 days
Type
3 -Way Sunrise/Sunset On/Off
Voltage Rating
V AC
120
Contact Form
SPST
Dimensions
5 in H x 3 in W
Display Type
Led
Enclosure Type
NEMA 3R
HORSEPOWER
HP
0.5
Mounting Type
Wall
Number of Channels
2-Jan
Number Of Poles
1
