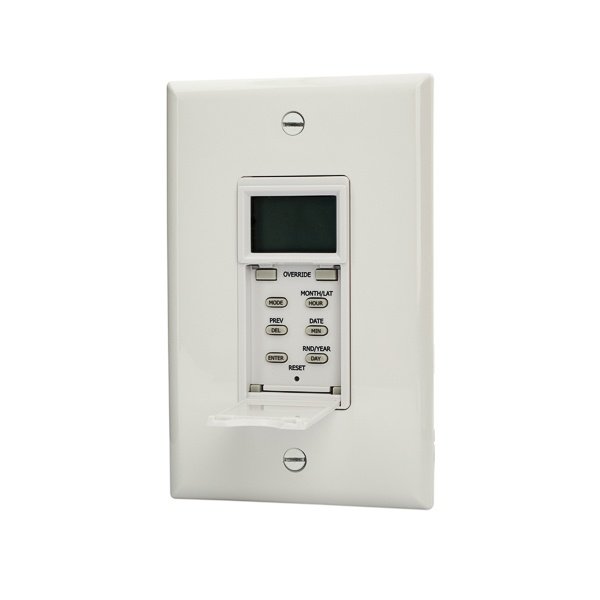

SS703ZA - Astro Wall Sw Timer 120/277V LED Lt Almd
Description
Specifications
0.39lb
1.7mm
1.74mm
Residential Interior Lighting, Small Fans, Motors, Appliances and Commercial Outdoor Security Lighting Applications
NSI
USA
CN
TIMER ELEK 7DAYS 120 TO 277VAC 1/2HP 1
Scheduling 10 ON and OFF pairs of set points for individual programs on each day of the week
11 day groups speed programming, 1 min minimum setting
Sunset astronomic adjusts daily to changes in sunset times, sunset and sunrise times are adjustable from 10 to 60 deg northern or southern latitudes
Can be individually offset +/- 1 to 240 min for earlier or later operation
Random mode varies ON and OFF times to create lived in look when away
Daylight saving automatic adjustment (can be omitted)
Leap year automatic compensation
Manual override until the next regularly scheduled ON-OFF automatic operation then resumes
Manual mode does not run programs until set to AUTO (automatic) mode
Use as vacation setting for no operation when away
Easy wiring does not requires a neutral
Clock format AM/PM
Power outage backup permanent schedule retention, super capacitor provides 2 days of real time backup
7 ON and OFF pairs of set points each day astronomic random mode daylight savings
1/2 hp at 120 VAC power rating
NSi Industries
IN
1.7400
IN
1
0.3900
LB
1.7000
IN
Tork
ELECTRONIC TIME SWITCHES
Amperage Rating
A
16
Temperature Rating
deg F
32 To 104
Time Setting
Days
7
Type
1-Phase 3-Way Astronomic Sunset
Voltage Rating
V AC
120 To 277
Contact Form
SPST
Dimensions
5 in H x 3 in W
Display Type
Digital
HORSEPOWER
HP
2-Jan
Mounting Type
Wall
Number Of Poles
1
Operation Mode
On/Off
Series
SS700Z Series
