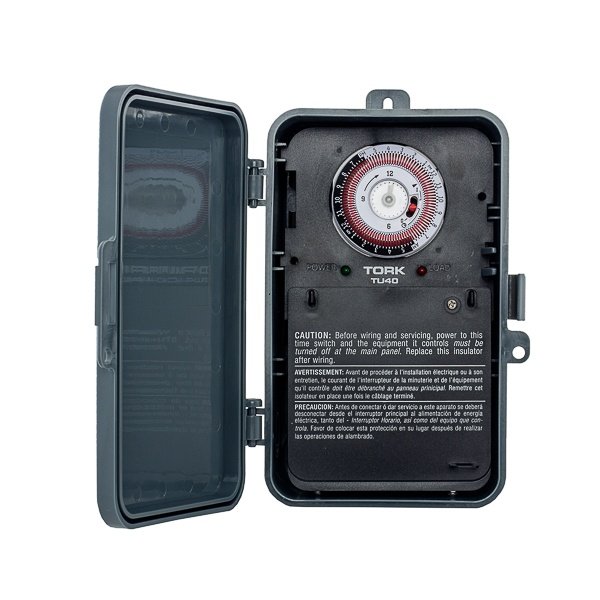

TU40 - 24 Hour Timer 40A 120-277V DPDT Outdoor
Description
Specifications
1.76lb
5.06mm
3.06mm
Lighting, Pumps, Signs, Air Conditioning, Water Heaters and Fan Control
NSi Industries
USA
CN
SWITCH MECH TIME 24HR 120/208/240/277VAC
60 Hz Frequency
Automatic input voltage detection multi-voltage
Real time clock face and day/night markings for setting trippers easy set
Minimum On is setting 15 min, dial has 96 captive trippers
Set timer to permanent On, Off or timer operation bypass switch
Set timer Off with no change of tripper settings vacation mode
Power on green and load on red and LED indicators
18 to 8 AWG terminal range
6 W power consumption
Lockable hasp standard enclosure
Plastic indoor/outdoor enclosure
NSi Industries
IN
3.0600
IN
1
1.7600
LB
5.0600
IN
NSi Industries
ELECTROMECHANICAL TIME SWITCHES
Amperage Rating
A
40
Temperature Rating
deg F
-31 To 116
Time Setting
HR
24
Type
On/Off
Voltage Rating
V AC
120/208/240/277
Contact Form
2 Form C DPDT
Dimensions
5.625 in L x 4.5 in W x 8.312 in H
Enclosure Type
NEMA 3R
HORSEPOWER
HP
2
Mounting Type
Threaded
Number Of Poles
2
Operation Mode
HR
24
Series
TU40
