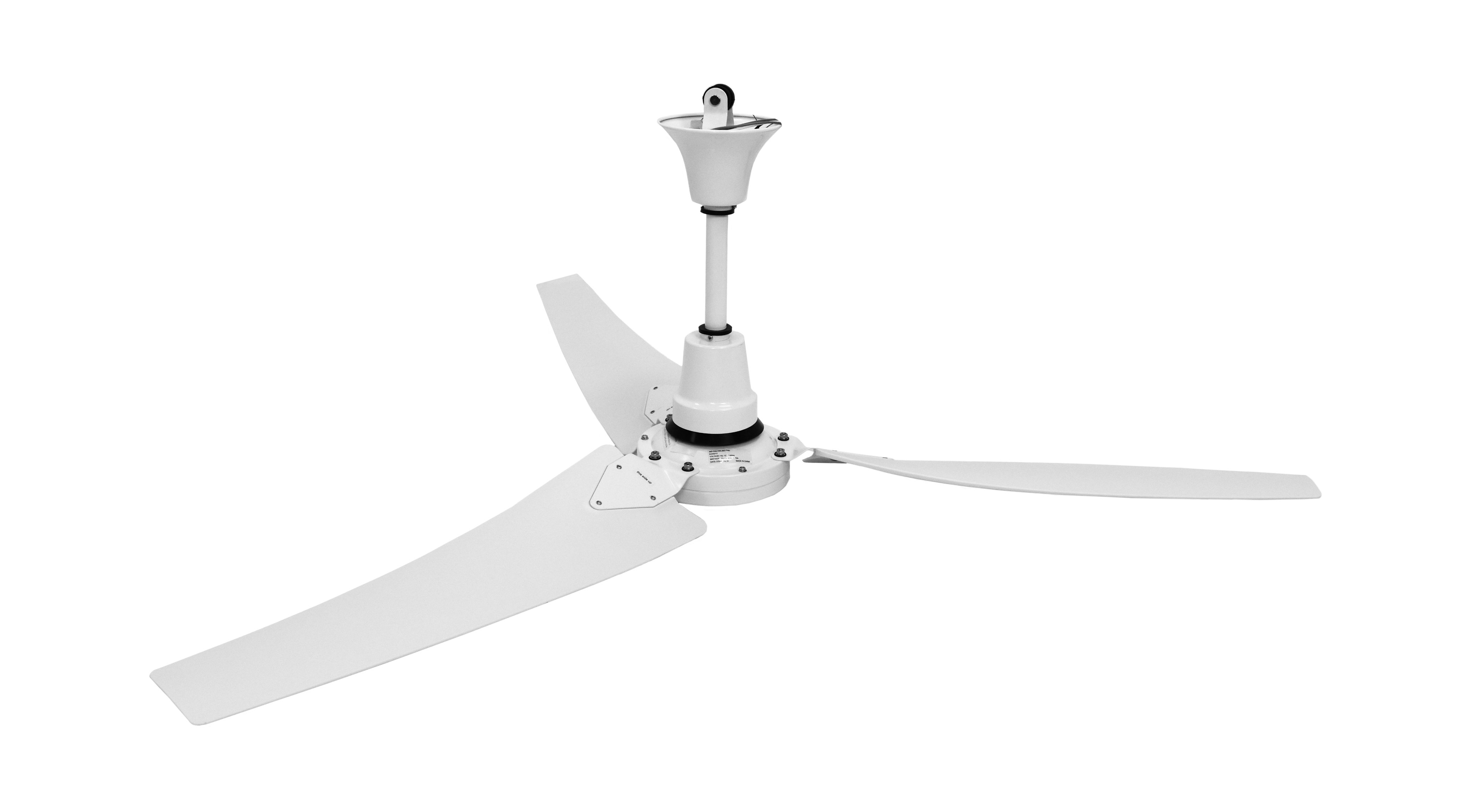

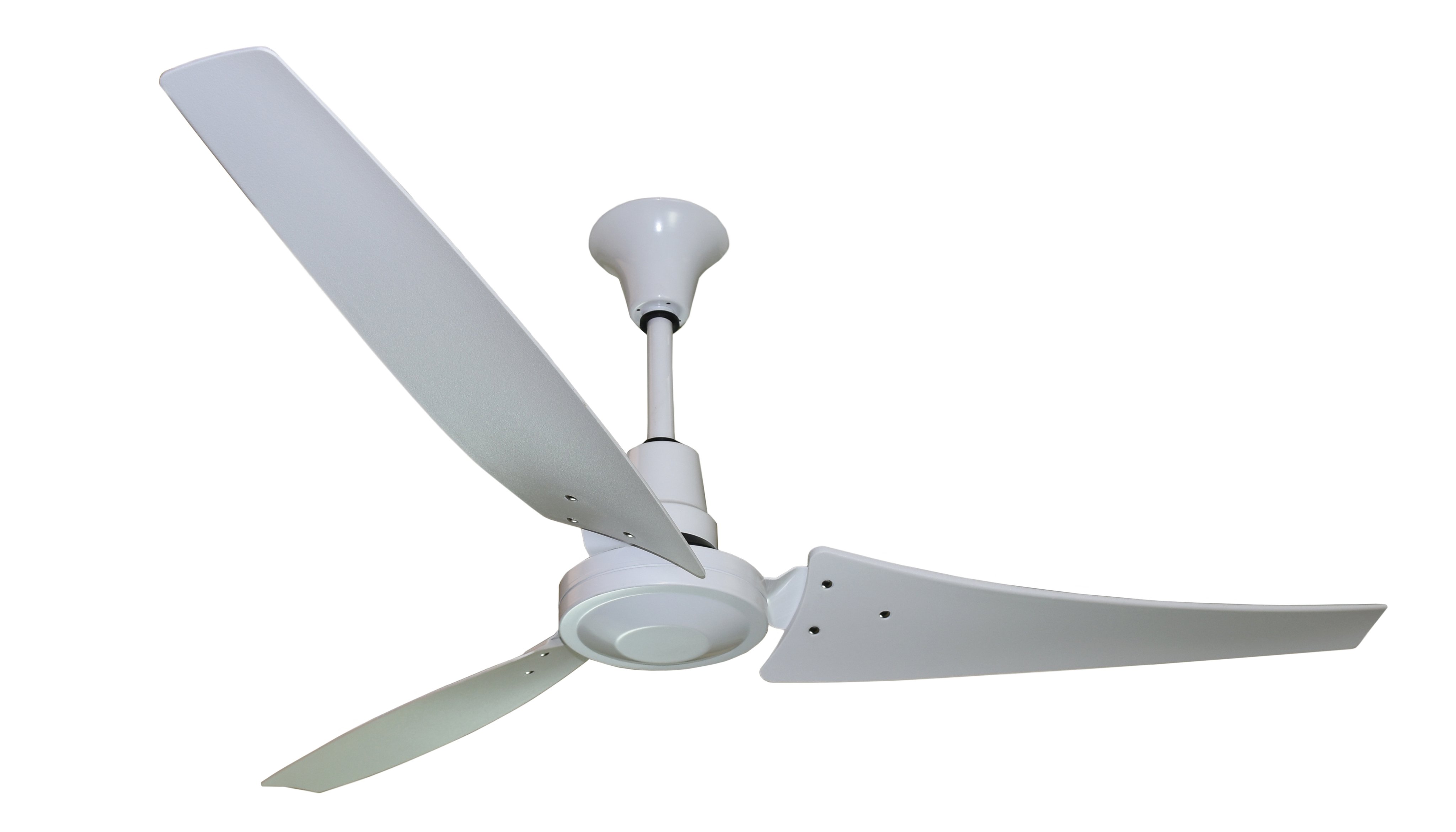

E-56CF - 56" Indl High Eff. Ceiling Fan, White
Description
Specifications
22lb
28mm
12mm
11mm
Commercial, Factory, Indoor and Outdoor, Industrial, Material Handling Area, Patio, Repair Garage, Retail Stores, Warehouse and Workshop Applications
TPI
USA
CN
24 in Stainless Steel Safety Cable Kit and 3-Paddle Polymer Blade Assembly
FAN COMMERCIAL
Permanently sealed double radial ball bearing PSC AC motor provides maintenance free and quiet operation
Low energy consumption - high efficiency performance
White power coated finish on steel motor housing and down rod
White polymer three paddle blade system designed for quiet operation
Easy to mount to the supplied steel J-hook connection
Satisfies the US Department of Energy's "Energy Guide" requirements

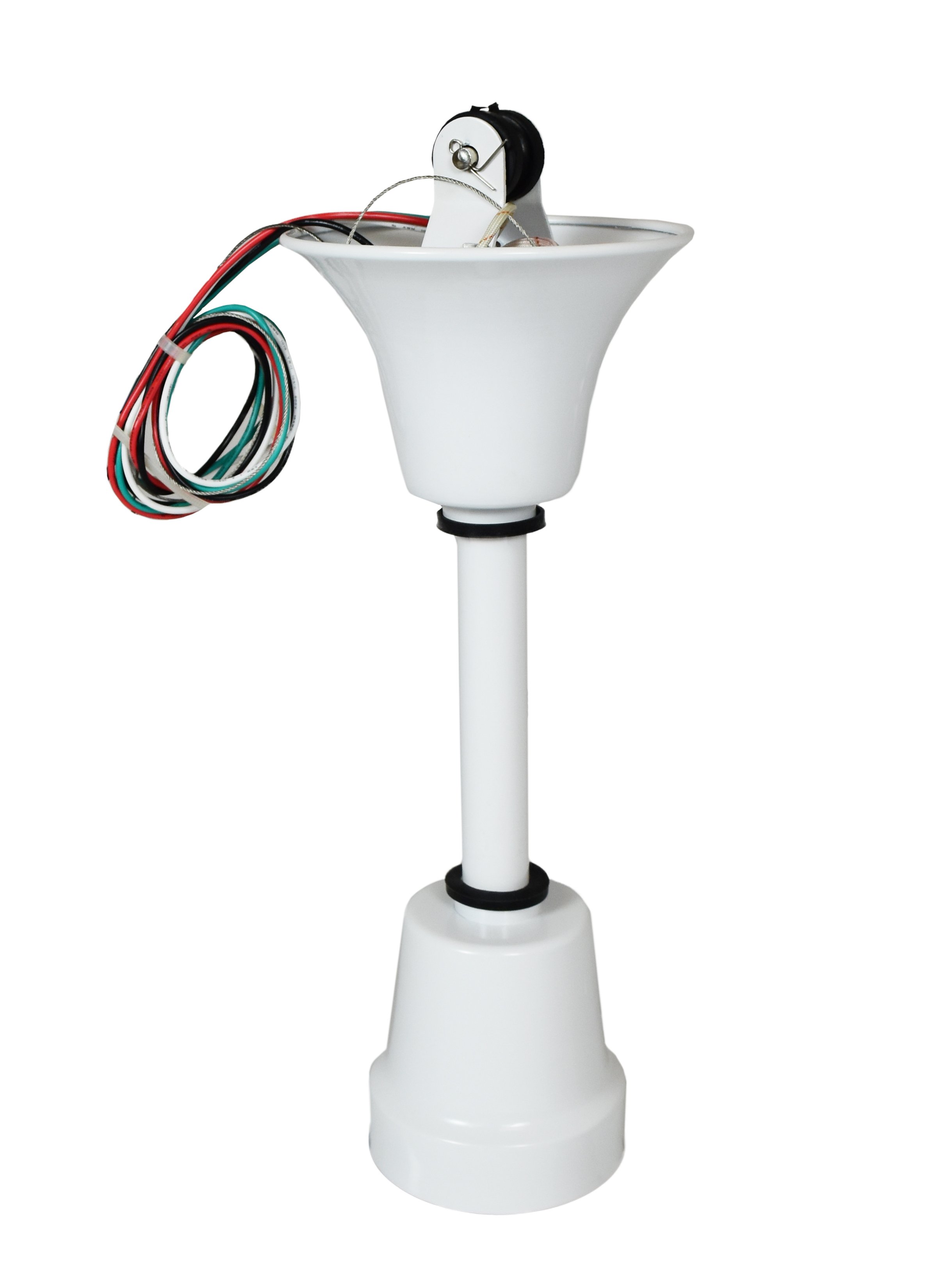

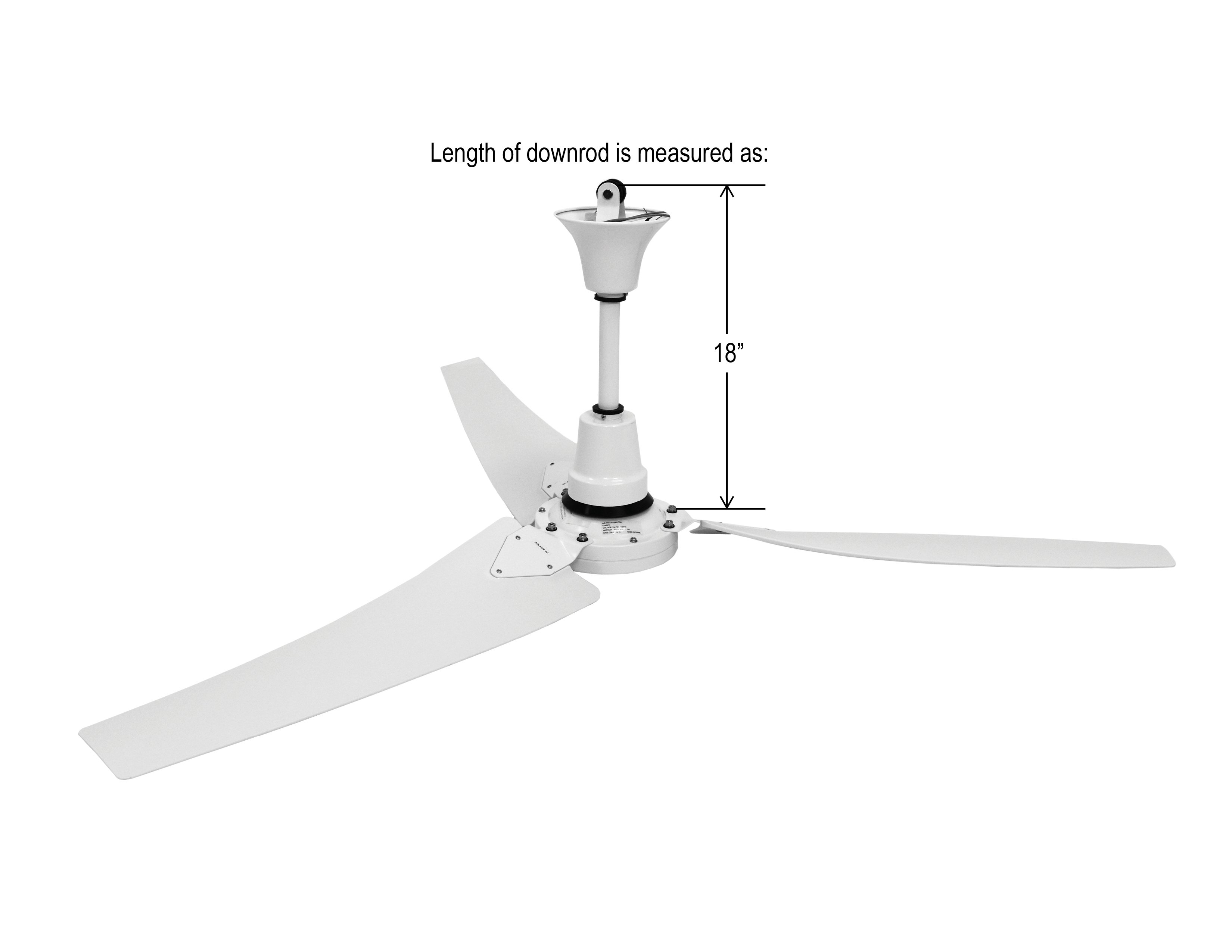

1 in OD x 18 in L steel down rod
J-hook connector has a 5/16 in OD
Direct four-wire connection with 24 in long lead wire, non-corded
Forward and reverse wiring options for down flow and up flow providing year round operation
Use KBWC-15SK speed control accessory
Moisture-resistant motor for damp locations for either indoor or protected outdoor applications
TPI Corporation
28.0000
IN
11.0000
IN
1
22.0000
LB
12.0000
IN
TPI
CEILING FANS (PADDLE FANS) & COMPONENTS
Amperage Rating
A
0.7
Power Rating
W
85
Series
E-CF Series
Speed
RPM
290
Type
1-Phase
Voltage Rating
V
120
Blade Material
Polymer
Blade Size
IN
56
Blade Type
Paddle
Flow Rate
CFM
7775
Frequency Rating
HZ
60
Motor Type
PSC
Mounting Type
Ceiling
Number of Blades
3
