TPI

E2903-024SW - Electric Baseboard Convection Heater

Category Baseboard Heaters

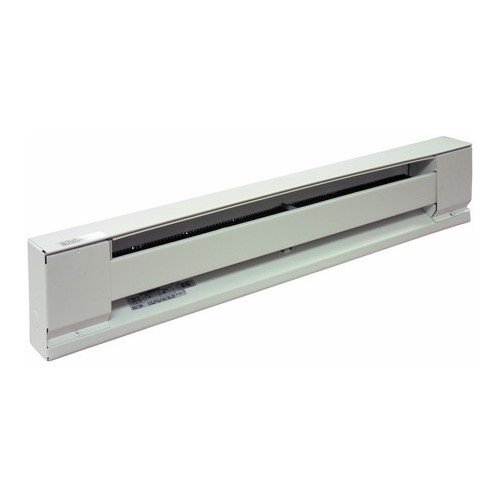

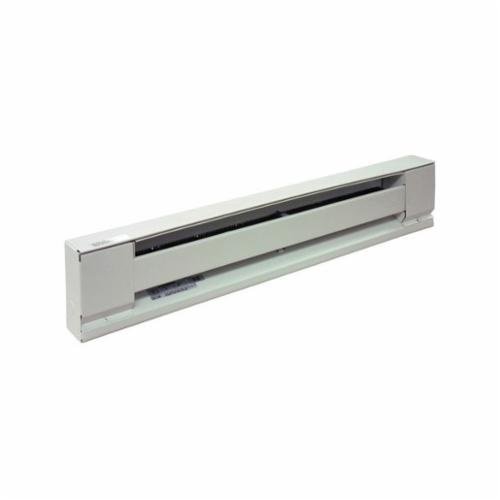

Picture of E2903-024SW - Electric Baseboard Convection Heater Picture of E2903-024SW - Electric Baseboard Convection Heater

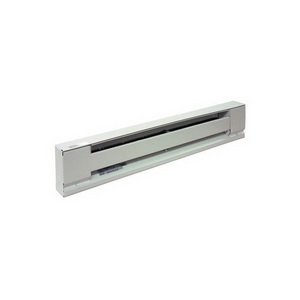

Picture of E2903-024SW - Electric Baseboard Convection Heater Picture of E2903-024SW - Electric Baseboard Convection Heater
Picture of E2903-024SW - Electric Baseboard Convection Heater Picture of E2903-024SW - Electric Baseboard Convection Heater
TPI

E2903-024SW - Electric Baseboard Convection Heater

Item Code: 33936
Category Baseboard Heaters
Manufacturer TPI Corporation
Manufacturer Ref E2903-024SW

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Electric Baseboard Convection Heater; Type Slim Contoured; Voltage Rating 120 V; Current Rating 3.1 Ampere; Power Rating 375 W; Heating Capacity 1275 BTU/Hr; Length 24 Inch; Height 6 Inch; Color White; Heating Element Aluminum Finned Stainless Steel Element; Control Type Built-In Thermostat; Mounting Wall; Approval ETL (Canada and US); Depth 2-1/2 Inch; Front Panel Material 22 Gauge Painted Steel

Specifications

Weight

10lb

Height

3mm

Width

7mm

Length

28mm

AD Application

Indoor-Commercial and Residential Applications

AD Brand (Description)

TPI

AD Country

USA

AD Country Of Origin

US

AD Gtin

00686334104999

AD Invoice Description

HEATER CONVN BASEBOARD ELEC 1275BTU/HR

AD Item Features 01

Stainless steel heating element and aluminum fins

AD Item Features 02

Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires

AD Item Features 03

Over temperature thermal limit extends entire length of heated area

AD Item Features 04

A full length wireway provided along the back of the heater

AD Item Features 05

Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater

AD Item Features 06

Optional in-built thermostats field installed in the junction box

AD Manufacturer (Description)

TPI Corporation

AD Package Height

3.0000

AD Package Height UOM

IN

AD Package Length

28.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

10.0000

AD Package Weight UOM

LB

AD Package Width

7.0000

AD Package Width UOM

IN

Brand

TPI

Category

BASEBOARD HEATERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

3.1

Spec 10 Attribute

Type

Spec 10 Attribute Value

1-Phase Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

120

Spec 2 Attribute

Capacity

Spec 2 Attribute UOM

Btu/hr

Spec 2 Attribute Value

1275

Spec 3 Attribute

Color

Spec 3 Attribute Value

White

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

24 in L x 2-1/2 in D x 6 in H

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Painted

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

W

Spec 8 Attribute Value

375

Spec 9 Attribute

Series

Spec 9 Attribute Value

2900S
