TPI

HF3220T2RPW - Fan Forced Wall Heater

Category Wall Heaters

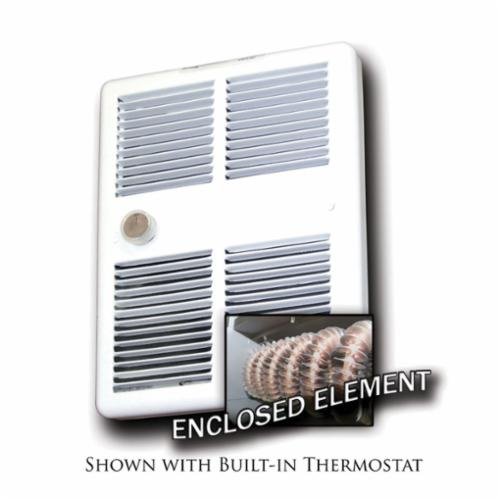

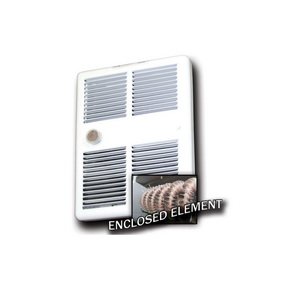

Picture of HF3220T2RPW - Fan Forced Wall Heater Picture of HF3220T2RPW - Fan Forced Wall Heater
Picture of HF3220T2RPW - Fan Forced Wall Heater Picture of HF3220T2RPW - Fan Forced Wall Heater
Picture of HF3220T2RPW - Fan Forced Wall Heater Picture of HF3220T2RPW - Fan Forced Wall Heater
TPI

HF3220T2RPW - Fan Forced Wall Heater

Item Code: 572574
Category Wall Heaters
Manufacturer TPI Corporation
Manufacturer Ref HF3220T2RPW

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Fan Forced Wall Heater; Type Mid Size; Voltage Rating 208/240 V; Current Rating 7.2 Ampere at 208 V, 8.3 Ampere at 240 V; Power Rating 1500 W at 208 V, 2000 W at 240 V; Heating Capacity 5120 BTU/Hr at 208 V, 6826 BTU/Hr at 240 V; Housing Size 9-1/4 Inch W x 3-5/8 Inch D x 12-1/8 Inch H; Color White; Heating Element Finned Tubular Steel; Control Type 40 to 100 Deg F Built-In Positive Off 2-Pole Thermostat; Fan/Motor Type Propeller Style Fan Blade, 2200 RPM Motor; Air Flow Rate 70 CFM; Mounting Wall; Approval ETL (Canada and US); Grill Size 9-25/32 Inch W x 13 Inch H; Front Panel Material 18 Gauge Powder Coated Steel; Includes Wall Box

Specifications

Weight

6lb

Height

14mm

Width

6mm

Length

11mm

AD All Features

Built- in double pole thermostat

AD Application

For Indoor and Residential/Some Commercial/Some Industrial Purpose

AD Brand (Description)

TPI

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HEATER ELEC 2/1.5KW 208/240VAC 8.3/7.2A

AD Item Features 01

Built- in double pole thermostat

AD Item Features 02

Drywall depth embossments on back can, manual reset thermal unit

AD Item Features 03

Propeller style fan blade is 2200 rpm/70 cfm

AD Item Features 04

Powder coated 18 gauge steel front

AD Item Features 05

Finned tubular steel element

AD Manufacturer (Description)

TPI Corporation

AD Package Height

14.0000

AD Package Height UOM

IN

AD Package Length

11.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

6.0000

AD Package Weight UOM

LB

AD Package Width

6.0000

AD Package Width UOM

IN

Brand

TPI

Category

WALL HEATERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8.3/7.2

Spec 2 Attribute

Finish

Spec 2 Attribute Value

Powder Coated

Spec 3 Attribute

Material

Spec 3 Attribute Value

Steel

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Wall

Spec 5 Attribute

Power Rating

Spec 5 Attribute UOM

KW

Spec 5 Attribute Value

2/1.5

Spec 6 Attribute

Series

Spec 6 Attribute Value

3200

Spec 7 Attribute

Type

Spec 7 Attribute Value

Fan Forced Midsized

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

208/240
