TPI

03265502 (HF3316T2RPW) - Fan Forced Wall Heater

Category Wall Heaters

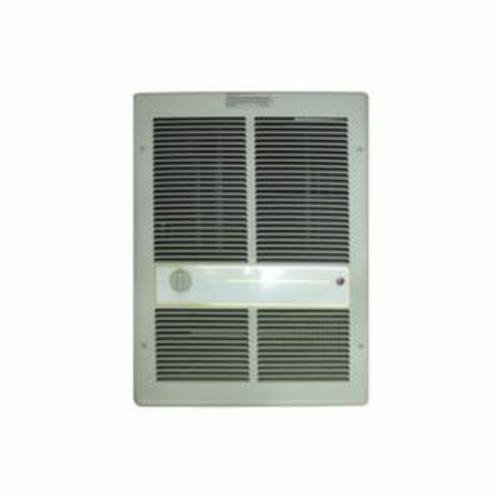

Picture of 03265502 (HF3316T2RPW) - Fan Forced Wall Heater
TPI

03265502 (HF3316T2RPW) - Fan Forced Wall Heater

Item Code: 552801
Category Wall Heaters
Manufacturer TPI Corporation
Manufacturer Ref HF3316T2RPW

Catalog
Specification Sheet
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

Fan Forced Wall Heater; Voltage Rating 208/240 V; Current Rating 7.2/8.3 Ampere at 208 V, 14.4/16.8 Ampere at 240 V; Power Rating 1500/2000 W at 208 V, 3000/4000 W at 240 V; Heating Capacity 6826 BTU/Hr at 208 V, 13648 BTU/Hr at 240 V; Housing Size 14-3/16 Inch W x 4 Inch D x 19-15/16 Inch H; Material Heavy Gauge Steel; Color White; Heating Element Finned Steel Block; Control Type 0 to 110 Deg F Built-In 2-Pole Thermostat; Fan/Motor Type Vane Axial Fan Blade, 600 RPM Motor; Air Flow Rate 175 CFM; Mounting Wall; Approval ETL (Canada and US); Grill Size 15-3/8 Inch W x 20-9/64 Inch H; Front Panel Material 18 Gauge Powder Coated Steel

Specifications

Weight

22lb

Height

6mm

Width

17mm

Length

21mm

Amperage Rating

16.8/14.4 A

Brand

TPI

Category

WALL HEATERS

Color

White

Finish

Powder Coated

Material

Steel

Mounting Type

Wall

Power Rating

3-Apr kW

Series

3310

Type

Fan Forced

Voltage Rating

208/240 V AC

TPI

03265502 (HF3316T2RPW) - Fan Forced Wall Heater

Category Wall Heaters
Picture of 03265502 (HF3316T2RPW) - Fan Forced Wall Heater
TPI

03265502 (HF3316T2RPW) - Fan Forced Wall Heater

Item Code: 552801
Category Wall Heaters
Manufacturer TPI Corporation
Manufacturer Ref HF3316T2RPW

Catalog
Specification Sheet
Warranty Information
Call for Availability
Add to Favorites
Compare

Description

Fan Forced Wall Heater; Voltage Rating 208/240 V; Current Rating 7.2/8.3 Ampere at 208 V, 14.4/16.8 Ampere at 240 V; Power Rating 1500/2000 W at 208 V, 3000/4000 W at 240 V; Heating Capacity 6826 BTU/Hr at 208 V, 13648 BTU/Hr at 240 V; Housing Size 14-3/16 Inch W x 4 Inch D x 19-15/16 Inch H; Material Heavy Gauge Steel; Color White; Heating Element Finned Steel Block; Control Type 0 to 110 Deg F Built-In 2-Pole Thermostat; Fan/Motor Type Vane Axial Fan Blade, 600 RPM Motor; Air Flow Rate 175 CFM; Mounting Wall; Approval ETL (Canada and US); Grill Size 15-3/8 Inch W x 20-9/64 Inch H; Front Panel Material 18 Gauge Powder Coated Steel

Specifications

Weight

22lb

Height

6mm

Width

17mm

Length

21mm

Amperage Rating

16.8/14.4 A

Brand

TPI

Category

WALL HEATERS

Color

White

Finish

Powder Coated

Material

Steel

Mounting Type

Wall

Power Rating

3-Apr kW

Series

3310

Type

Fan Forced

Voltage Rating

208/240 V AC
