TPI

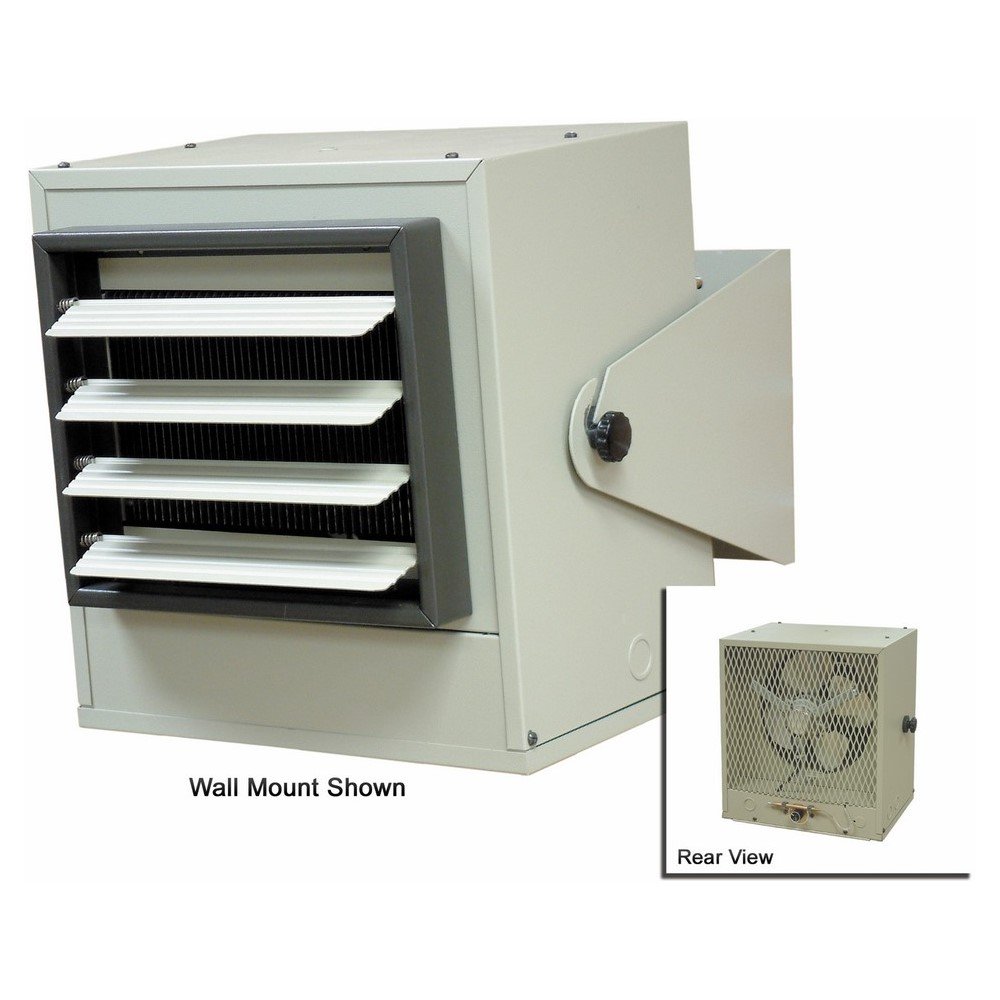

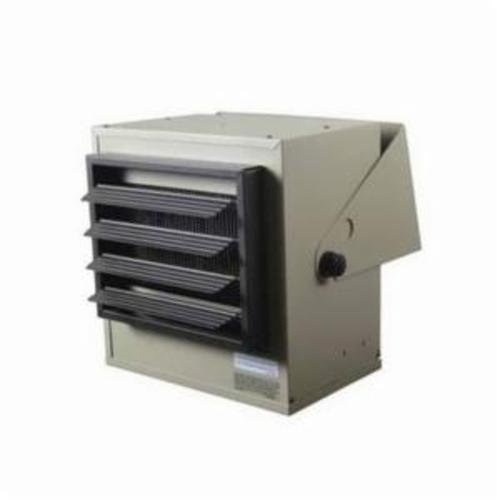

HF5605T - Fan Forced Unit Heater

Category Furnaces & Ovens
Picture of HF5605T - Fan Forced Unit Heater Picture of HF5605T - Fan Forced Unit Heater
Picture of HF5605T - Fan Forced Unit Heater Picture of HF5605T - Fan Forced Unit Heater
Picture of HF5605T - Fan Forced Unit Heater Picture of HF5605T - Fan Forced Unit Heater
TPI

HF5605T - Fan Forced Unit Heater

Item Code: 33957
Category Furnaces & Ovens
Manufacturer TPI Corporation
Manufacturer Ref HF5605T

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Fan Forced Unit Heater; Voltage Rating 208/240 V; Current Rating 9/12/15/18 Ampere at 208 V, 10/14/17/21 Ampere at 240 V; Power Rating 1874/2500/3123/3750 W at 208 V, 2500/3332/4165/5000 W at 240 V; Number of Phases 1; Capacity 6396/8553/1065912798 BTU/Hr at 208 V, 8533/11365/14215/17065 BTU/Hr at 240 V; Heating Element Block Finned Steel; Control Type Hydraulic Action Thermostat; Fan/Motor Type Totally Enclosed Permanently Lubricated Motor; Air Flow Rate 275 CFM; Material Heavy Gauge Steel; Finish Powder Coated; Size 14 Inch W x 14 Inch D; Mounting Ceiling/Wall; Application Industrial; Approval ETL (Canada and US); Air Throw Distance 16 Ft; Temperature Rise 5748/38/29 Deg F at 240 V, 43/36/29/21 Deg F at 208 V

Specifications

Weight

37lb

Height

17mm

Width

16mm

Length

18mm

AD Application

Indoor-Commercial, Residential and Industrial Applications

AD Brand (Description)

TPI

AD Country

USA

AD Country Of Origin

US

AD Gtin

00686334707282

AD Invoice Description

HEATER UNIT 240/208VAC 275CFM STL

AD Item Features 01

Horizontal/vertical discharge

AD Item Features 02

Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door

AD Item Features 03

Heavy duty block finned steel element design

AD Item Features 04

Automatic resetting over-heat limit control

AD Item Features 05

Totally enclosed, 1-phase, permanently lubricated, thermally protected motor, mounted with rubber insulators to minimize vibration and noise

AD Item Features 06

Individually adjustable louvers

AD Item Features 07

Hydraulic action thermostat with an adjustable temperature range 50 to 90 or remote and wall thermostat may be used

AD Item Features 08

Heavy duty bracket standard on all models, allows mounting to wall or ceiling - minimum mounting height - 6 ft

AD Item Features 09

Mounting bracket (wall/ceiling/workbench)

AD Manufacturer (Description)

TPI Corporation

AD Package Height

17.0000

AD Package Height UOM

IN

AD Package Length

18.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

37.0000

AD Package Weight UOM

LB

AD Package Width

16.0000

AD Package Width UOM

IN

Brand

TPI

Category

FURNACES & OVENS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

21/17/14/10 or 18/15/12/9

Spec 10 Attribute

Series

Spec 10 Attribute Value

5600

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

21/29/36/38/48/57/43

Spec 12 Attribute

Type

Spec 12 Attribute Value

1-Phase Fan Forced

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

208/240

Spec 2 Attribute

Capacity

Spec 2 Attribute UOM

Btu/hr

Spec 2 Attribute Value

17065/14215/11365/8533 or 12798/10659/8553/6396

Spec 3 Attribute

Color

Spec 3 Attribute Value

Beige/Brown

Spec 4 Attribute

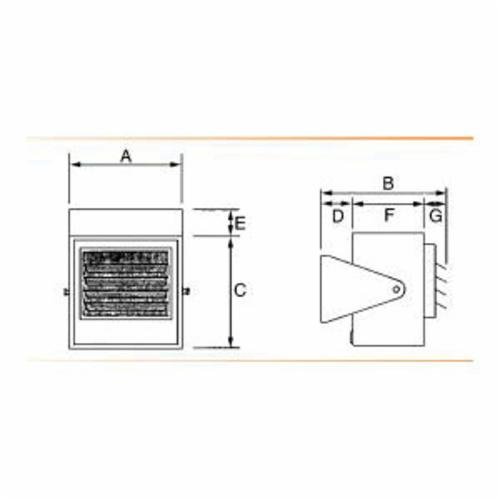

Dimensions

Spec 4 Attribute Value

14 in W x 12-11/16 in D x 14 in H

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Painted/Powder Coated

Spec 6 Attribute

Flow Rate

Spec 6 Attribute UOM

CFM

Spec 6 Attribute Value

275

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Ceiling/Panel/Workbench

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

KW

Spec 9 Attribute Value

5/4.165/3.332/2.5 or 3.75/3.123/2.5/1.874
