TPI

06453602 (P3P5115CA1N) - Fan Forced Unit Heater

Category Wall Heaters

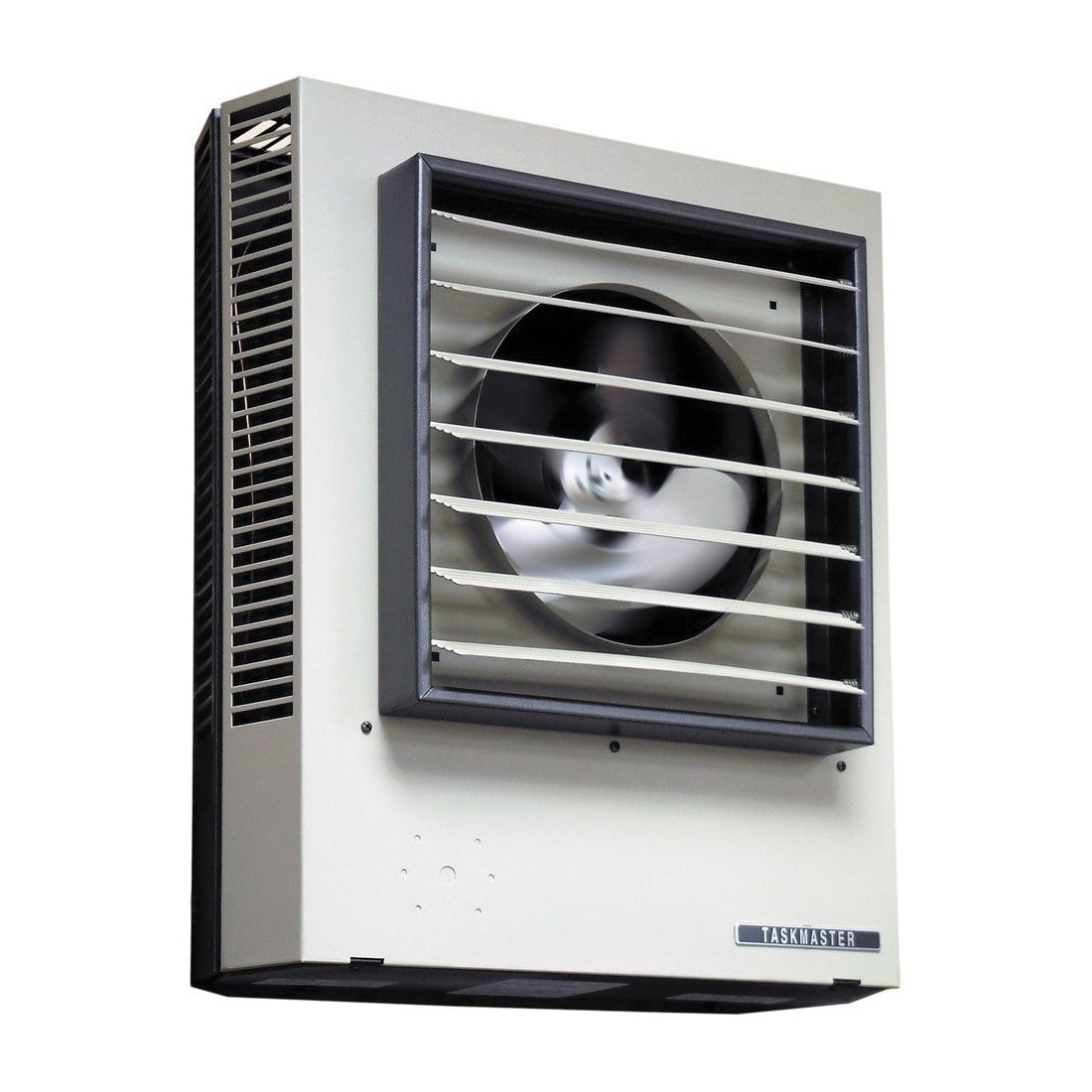

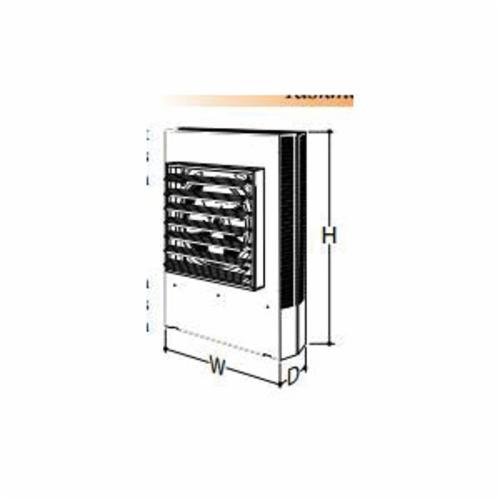

Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater
Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater
Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater
Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater Picture of 06453602 (P3P5115CA1N) - Fan Forced Unit Heater
TPI

06453602 (P3P5115CA1N) - Fan Forced Unit Heater

Item Code: 554109
Category Wall Heaters
Manufacturer TPI Corporation
Manufacturer Ref P3P5115CA1N

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Fan Forced Unit Heater; Voltage Rating 480 V; Current Rating 18.1 Ampere; Power Rating 15 KW; Number of Phases 3; Capacity 51.2 BTU/Hr; Heating Element Brazed Steel Finned Copper Clad Steel Sheath Element; Control Type Contactor with Transformer; Fan/Motor Type Totally Enclosed 1-Speed 1-Phase Permanently Lubricated Bearing Motor; Air Flow Rate 1100 CFM; Material 18 Gauge Welded Steel; Finish Powder Coated; Size 21-1/2 Inch W x 6-1/2 Inch D x 28-11/16 Inch H; Mounting Ceiling/Wall Bracket, Horizontal/Vertical; Application Warehouse, Storage Room; Approval ETL (Canada and US); Air Throw Distance 32 Ft; Control Voltage 24 V; Mounting Height 11 Ft Horizontal, 20 Ft Vertical; Temperature Rise 43 Deg F

Specifications

Weight

64lb

Height

20mm

Width

22mm

Length

29mm

AD Application

Indoor-Commercial and Industrial Applications

AD Brand (Description)

TPI

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HEATER UNIT 51.2BTU/HR 480VAC 18.1A 15KW

AD Item Features 01

Heavy 18 ga welded steel cabinet with powder coated beige and brown two tone finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation, and maintenance

AD Item Features 02

Copper clad steel sheath element with continuously brazed stell fins formed to allow side draw through air flow

AD Item Features 03

Equipped with automatic reset type limit controls to de-energize the heater should an over-temperature situation occur

AD Item Features 04

Fan and Motor, Totally enclosed, single speed, single phase permanently lubricated, thermally protected motor with unit bearings

AD Item Features 05

Motors mounted with rubber insulators to minimize vibration and noise

AD Manufacturer (Description)

TPI Corporation

AD Package Height

20.0000

AD Package Height UOM

IN

AD Package Length

29.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

64.0000

AD Package Weight UOM

LB

AD Package Width

22.0000

AD Package Width UOM

IN

Brand

TPI

Category

WALL HEATERS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

18.1

Spec 10 Attribute

Power Rating

Spec 10 Attribute UOM

KW

Spec 10 Attribute Value

15

Spec 11 Attribute

Series

Spec 11 Attribute Value

5100

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

43

Spec 13 Attribute

Type

Spec 13 Attribute Value

3-Phase Fan Forced Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

480

Spec 2 Attribute

Capacity

Spec 2 Attribute UOM

Btu/hr

Spec 2 Attribute Value

51.2

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

21-1/2 in W x 6-1/2 in D x 28-11/16 in H

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Powder Coated

Spec 5 Attribute

Flow Rate

Spec 5 Attribute UOM

CFM

Spec 5 Attribute Value

1100

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Height

Spec 8 Attribute Value

11 ft Horizontal/20 ft Vertical

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Wall
